Wireless Control System for 110V AC Winches

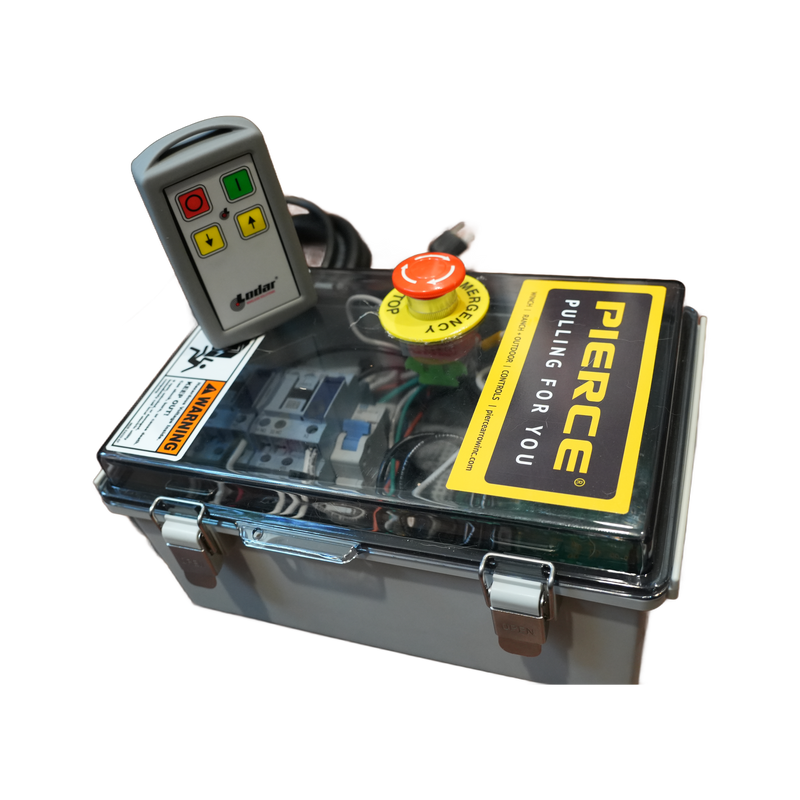

The Lodar Wireless Control Box (P003W) adds handheld wireless in/out control to a 110V industrial winch — without building a control panel from scratch. It packages a 2-function Lodar receiver, two reversing contactors sized to switch the winch motor, a 20 A breaker, and an emergency stop into one pre-wired, weatherproof enclosure. Land your power and motor leads, pair the handset, and run the winch from anywhere on the job.

Why is this easier than wiring wireless control yourself?

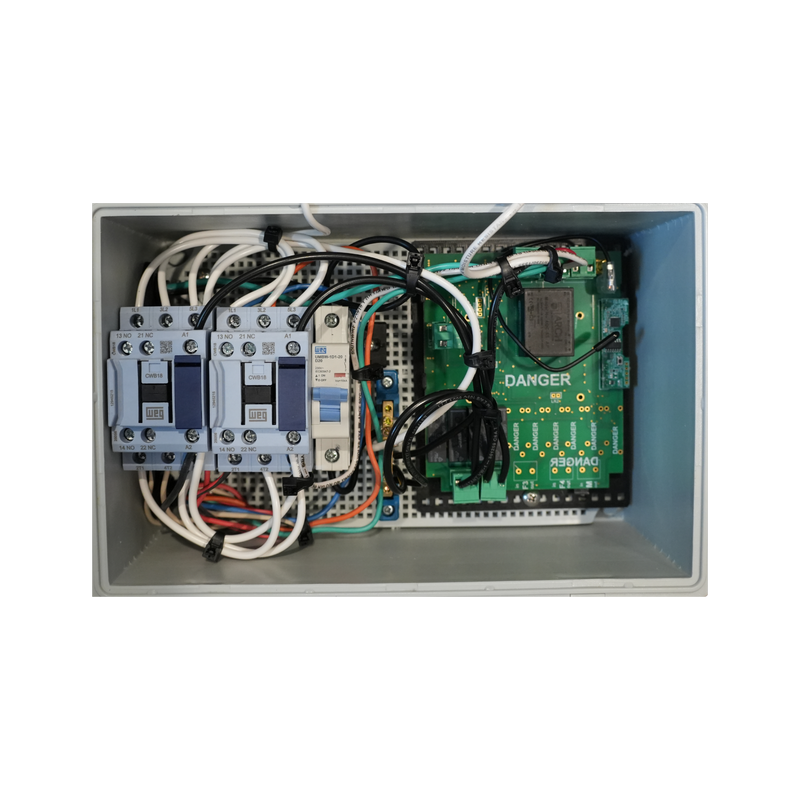

A Lodar receiver on its own gives you two low-current relay outputs — not enough to switch a 110V winch motor directly. This box handles the heavy-current side for you: the receiver drives two reversing contactors that switch the motor's IN and OUT directions at full load, with the breaker, grounding, and emergency stop already wired in. You mount the box, land the leads, and pair the handset.

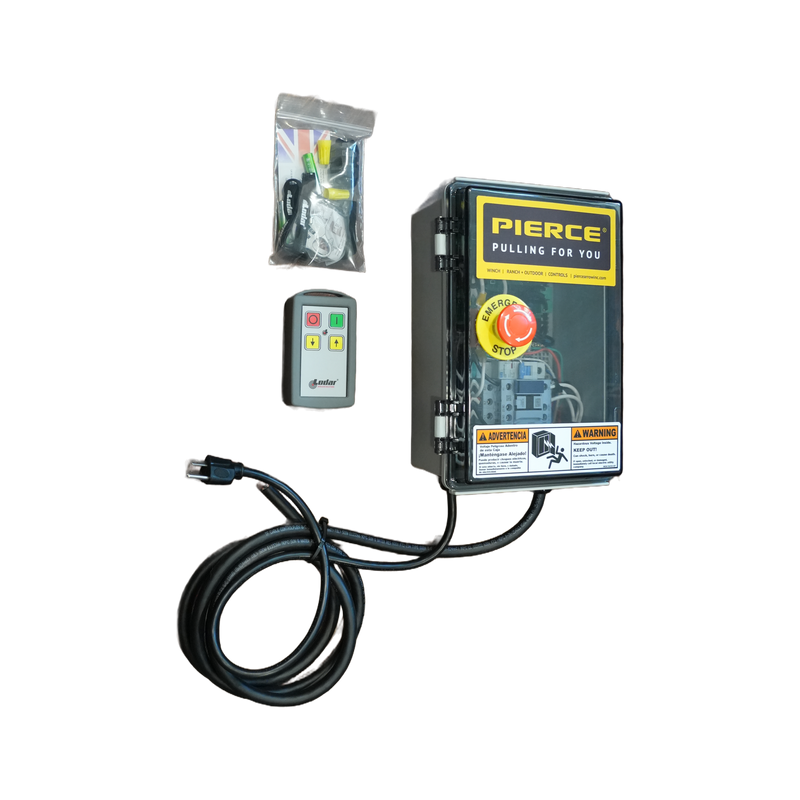

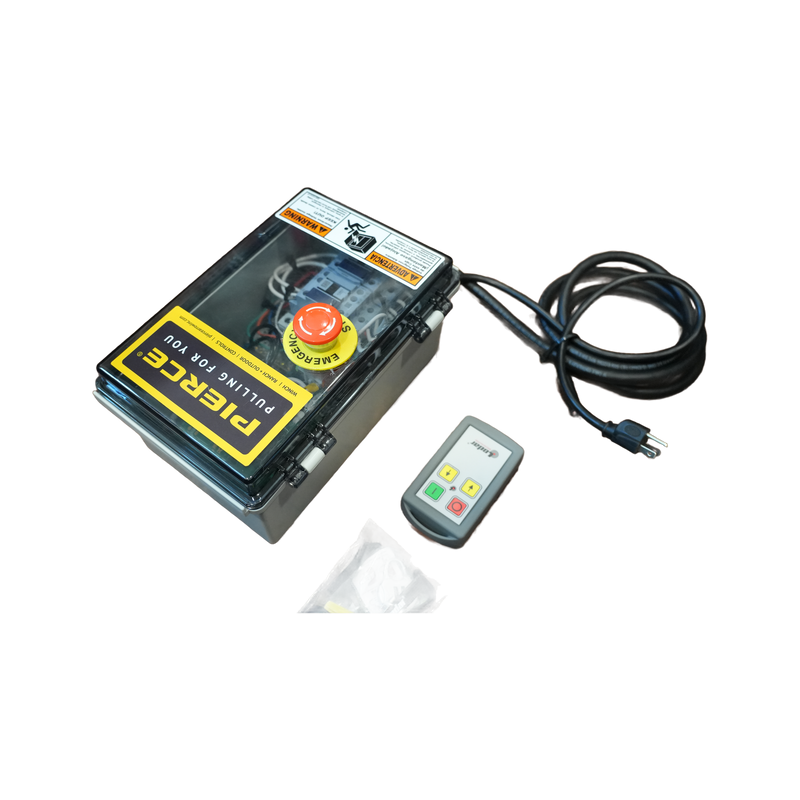

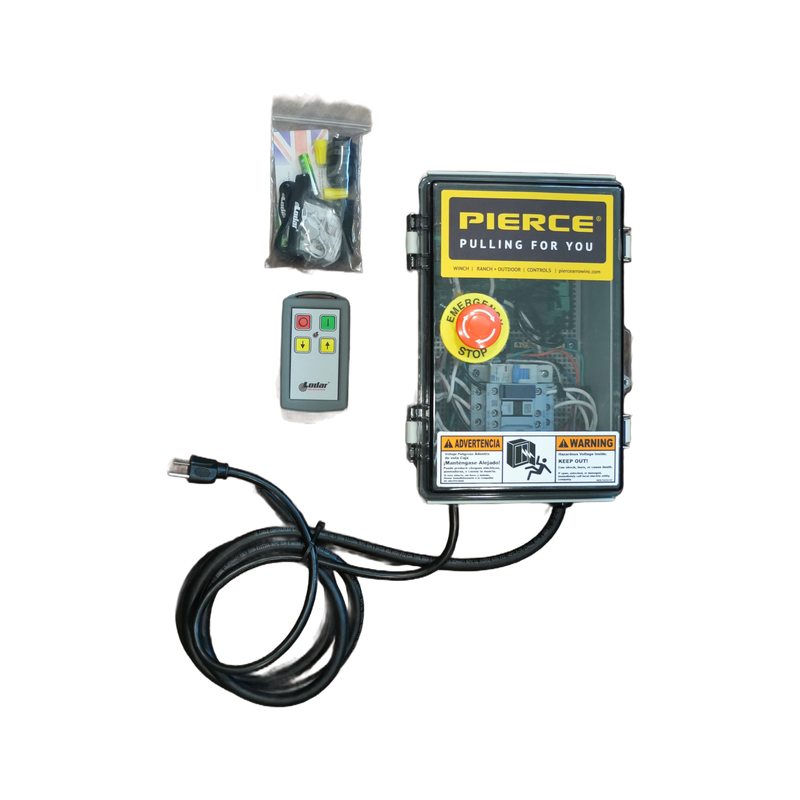

What's in the box?

• 2-function Lodar wireless receiver — 110V AC, 10 A relay outputs (Lodar SKU 96100-8)
• Standard Lodar handheld transmitter — up to 200 ft range, IN/OUT control
• Two reversing contactors — switch the winch motor IN and OUT at full current
• 20 A circuit breaker for overcurrent protection

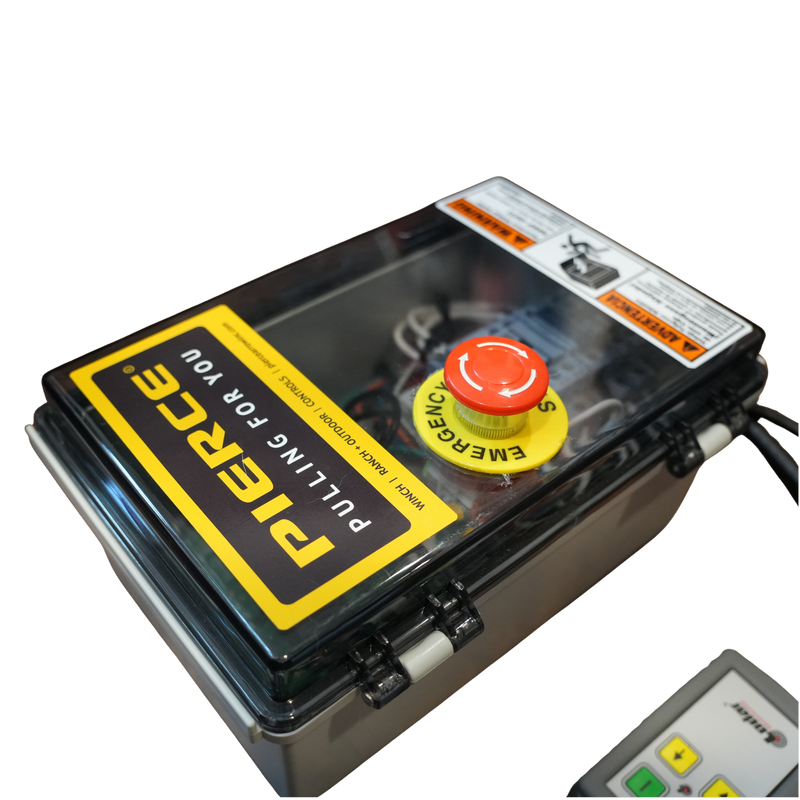

• Emergency-stop switch, wired to the receiver's stop circuit
• Grounding bar
• 110V power cord with plug

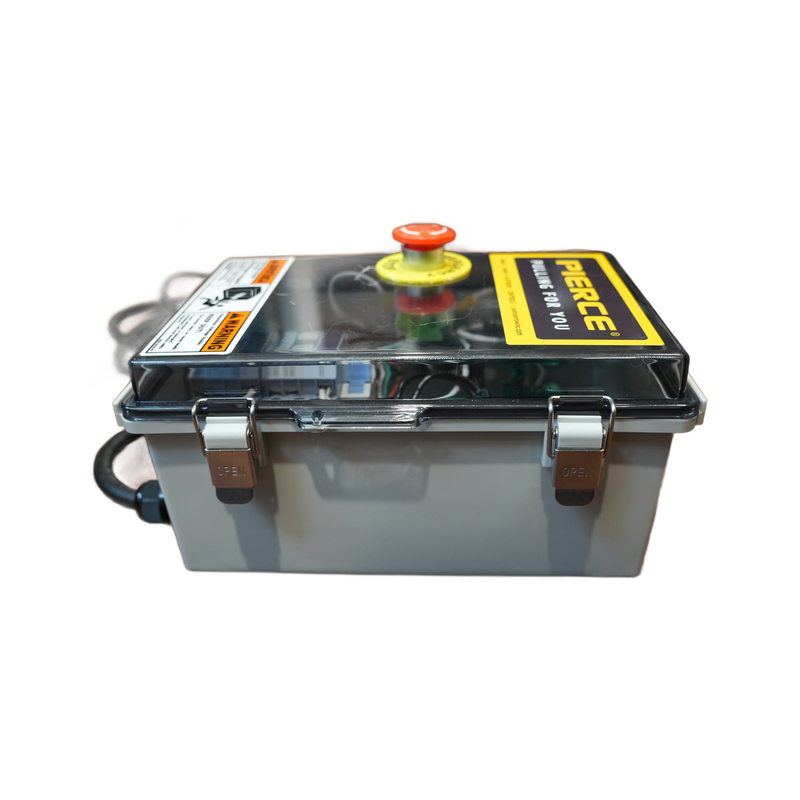

• Sealed weatherproof enclosure with IP68 cable glands
• Wiring diagram and warning labels
• Spare IP68 cable gland to fit your winch

Will it work with my winch?

The box is built for PIERCE 110VAC industrial winches, fitted with WEG motor 00158ES1B56CFL-S. If your winch uses a different motor, call us at 940-538-5643 with your model and we'll confirm the fit before you order.

• Wireless: 2-function Lodar system, IN/OUT control, handheld transmitter up to 200 ft
• Receiver output: mechanical relay, 10 A per output, 110V AC
• Motor switching: two reversing contactors, sized to the winch motor
• Protection: 20 A circuit breaker, emergency stop, grounding bar, back-EMF-protected outputs
• Enclosure: sealed weatherproof box, IP68 cable glands, 3D-printed internal mounting
• Power: 110V AC cord and plug included
• Built to order in Henrietta, Texas

Pairs with our 110V industrial worm gear winches. Just need the wireless system? The 2 Function Lodar Standard Wireless System (96100-8) is the receiver and handset at the heart of this box. The included Lodar wireless system carries Lodar's 5-year pro-rated warranty.

⚠️ 110V installation requires a certified electrician. Confirm circuit amperage, grounding, and overcurrent protection before energizing.

⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
