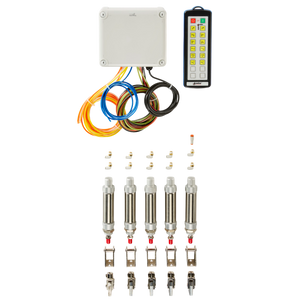

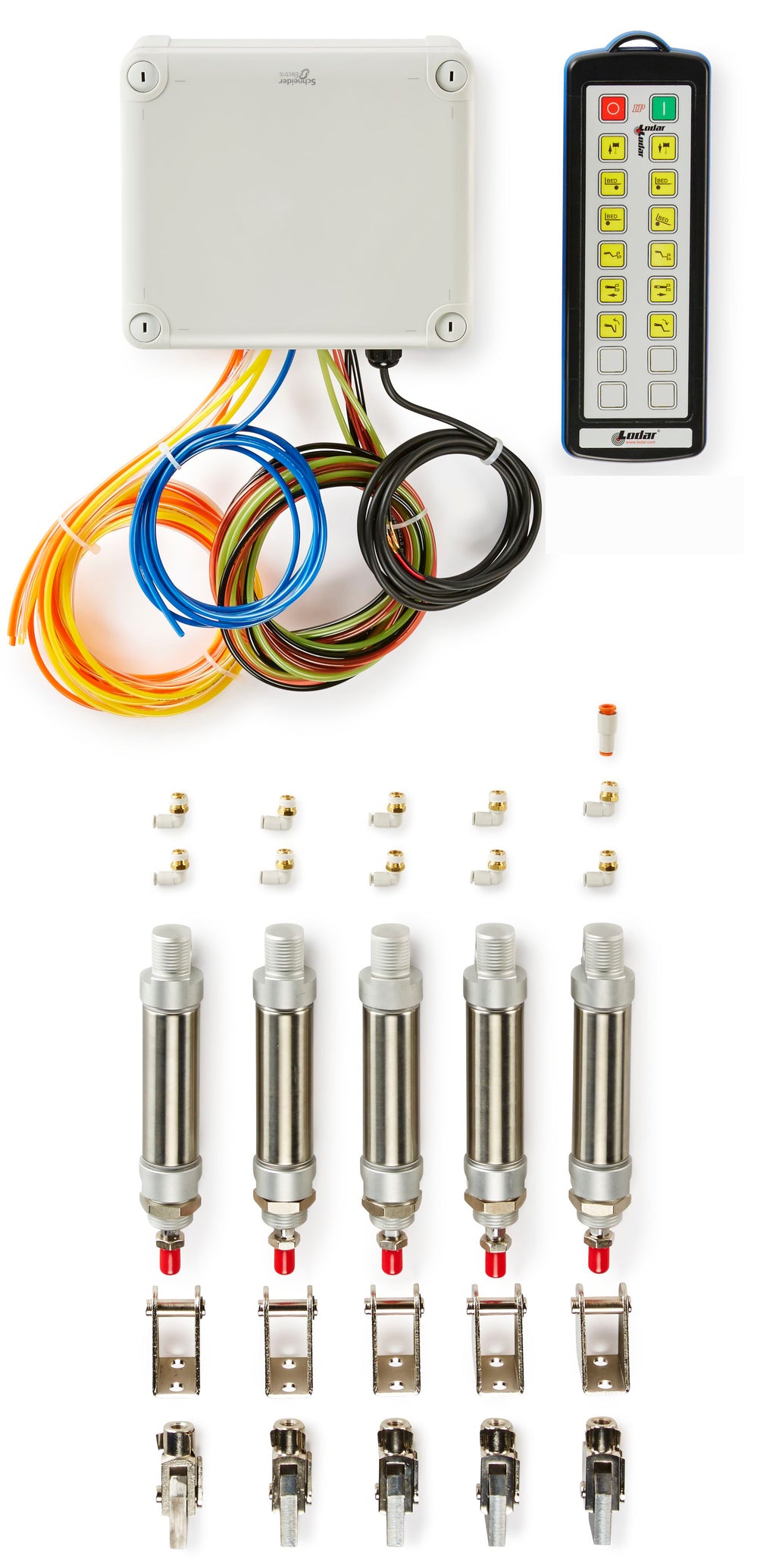

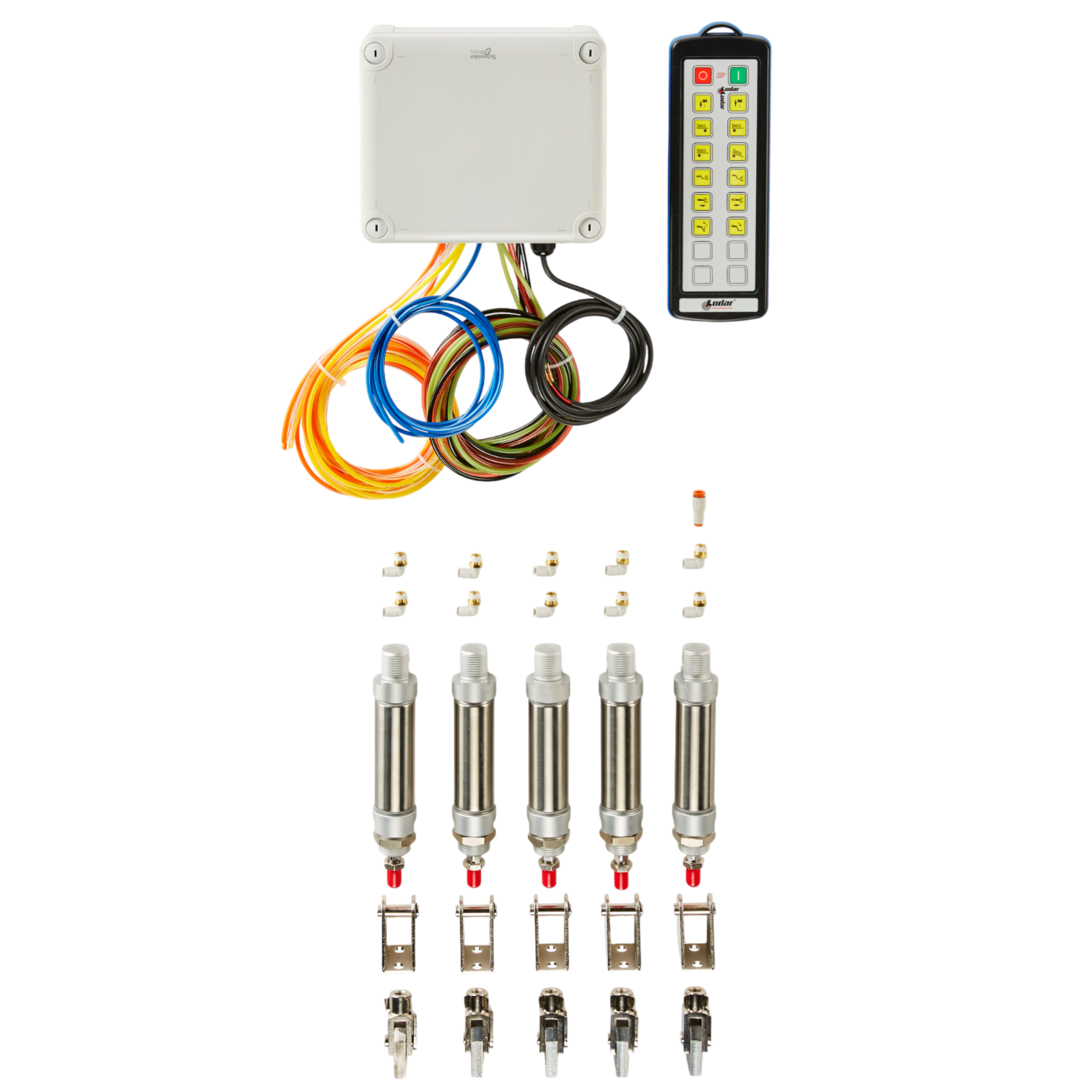

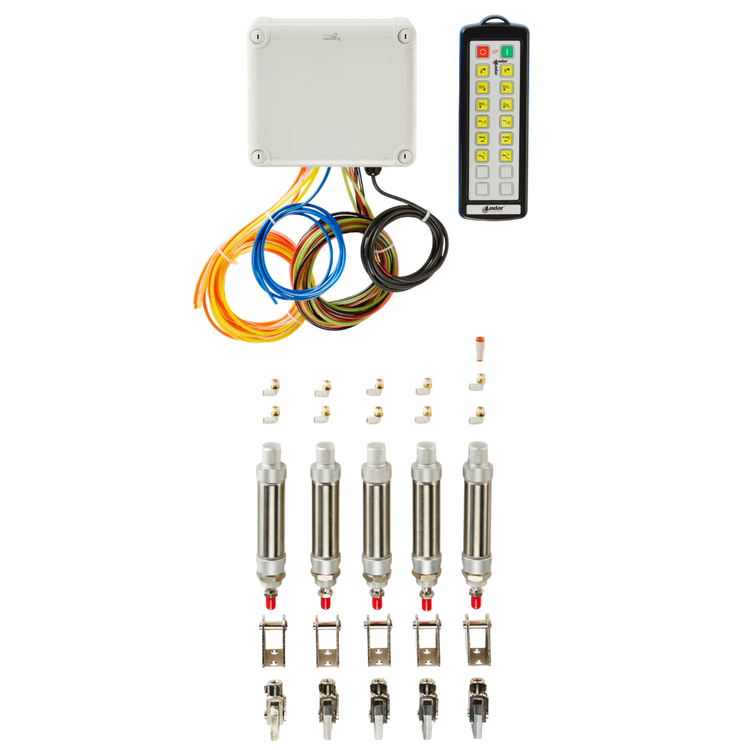

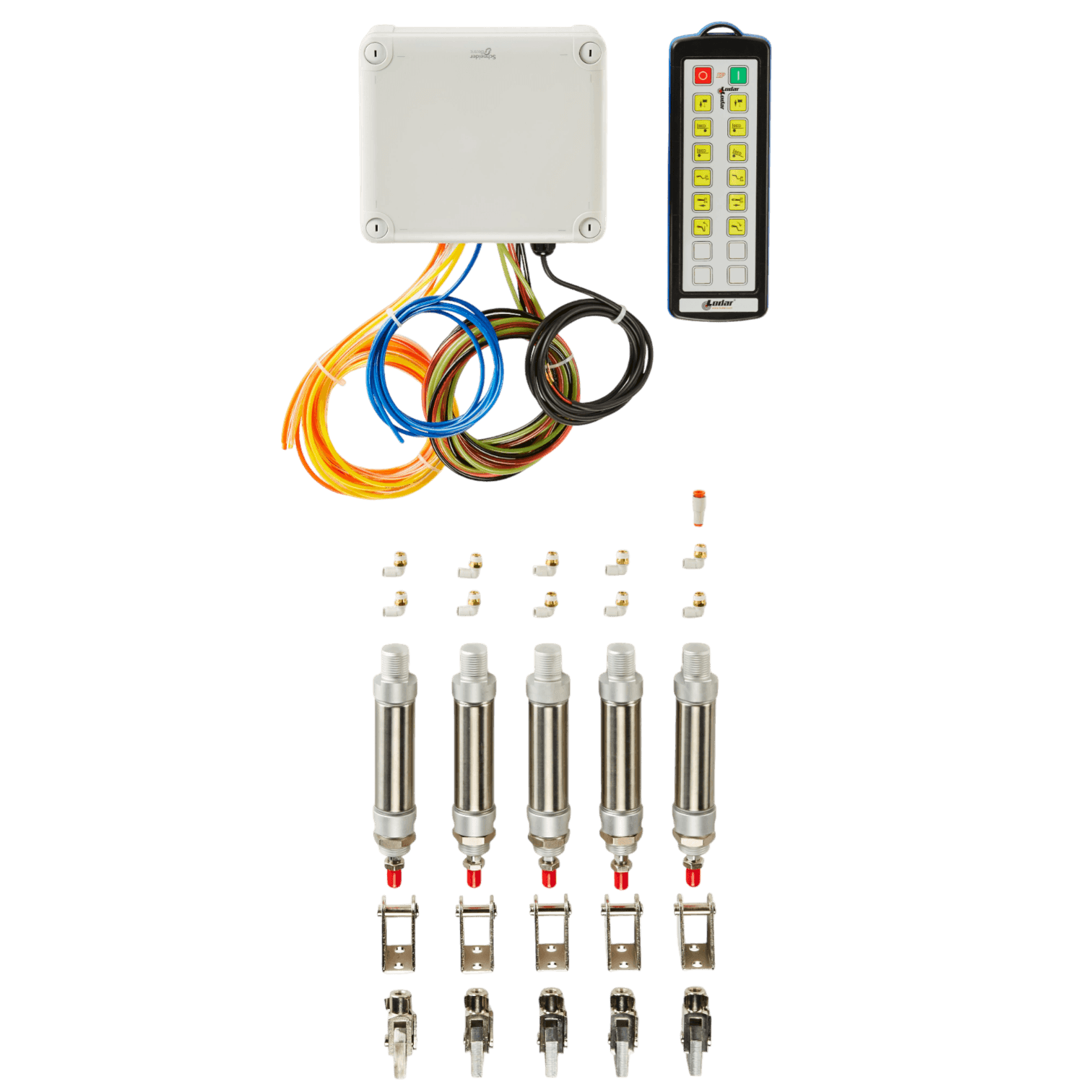

The Lodar LTD 12 Function IP Wireless Actuator Control System from the 92 Series features an electronic control kit complete with wires, connectors, and cylindrical sensors set against a black background. Its advanced design integrates seamlessly with the FET Air Receiver for efficient operation.
Pairing the 92 Series Lodar Remote & Transmitter
1 of 2

12 Function IP Wireless Actuator Control System | 92 Series | FET Air Receiver

92262-8
Sale price $3,864.00
Low stock
Amazon
American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
The Lodar LTD 12 Function IP Wireless Actuator Control System from the 92 Series features an electronic control kit complete with wires, connectors, and cylindrical sensors set against a black background. Its advanced design integrates seamlessly with the FET Air Receiver for efficient operation.

12 Function IP Wireless Actuator Control System | 92 Series | FET Air Receiver

$3,864.00
'
Description

This 12-function Lodar wireless system delivers control of six valves (two directions each). It comes complete with pneumatic actuators, an Industrial transmitter, and a sealed receiver for reliable operation.

  • 12 functions = 6 valves of wireless control
  • Includes pneumatic actuators
  • Industrial handheld transmitter (IP65)
  • Receiver sealed to IP65
  • Requires 90–120 PSI air supply and 12V DC power

Applications: Tow fleets, heavy ag hydraulics, and industrial service equipment.

Specification Details
ACTUATOR Air
FREQUENCY 433 MHz
FUNCTIONS 12
MASTER OUTPUT Yes
MAX AMPS 15
OPERATING DISTANCE 150 ft. (45 m.)
OPERATING VOLTAGE 12/24 Volts DC
RECEIVER IP RATING IP 65
SERIES 9000 Series
SPECIAL FEATURES Receiver with Air I/O + Air Actuators
TRANSMITTER Industrial Pro
TRANSMITTER BATTERIES AAA x 4
TRANSMITTER IP RATING IP 65
TYPE Full System
WIRING INCLUDED 8 ft. power / 5 ft. air input / 3½ ft. air outputs
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
