10 Function Lodar Standard Wireless Air System | 9 Series FET

$3,275.00
Skip to product information
Lodar Service 10 Function IP Wireless Actuator Control System (92 Series, FET Air Receiver) with electronic control box, remote, wires, four metal pneumatic valves, and hardware arranged on a white background.
1/2
  • Lodar Service 10 Function IP Wireless Actuator Control System (92 Series, FET Air Receiver) with electronic control box, remote, wires, four metal pneumatic valves, and hardware arranged on a white background.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • Lodar Service 10 Function IP Wireless Actuator Control System (92 Series, FET Air Receiver) with electronic control box, remote, wires, four metal pneumatic valves, and hardware arranged on a white background.
  • Pairing the 92 Series Lodar Remote & Transmitter
10 Function Lodar Standard Wireless Air System | 9 Series FET

10 Function Lodar Standard Wireless Air System | 9 Series FET

92260
$3,275.00

Choose Your Button Inserts

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select
F7 Click to select
F8 Click to select
F9 Click to select
F10 Click to select
In Stock

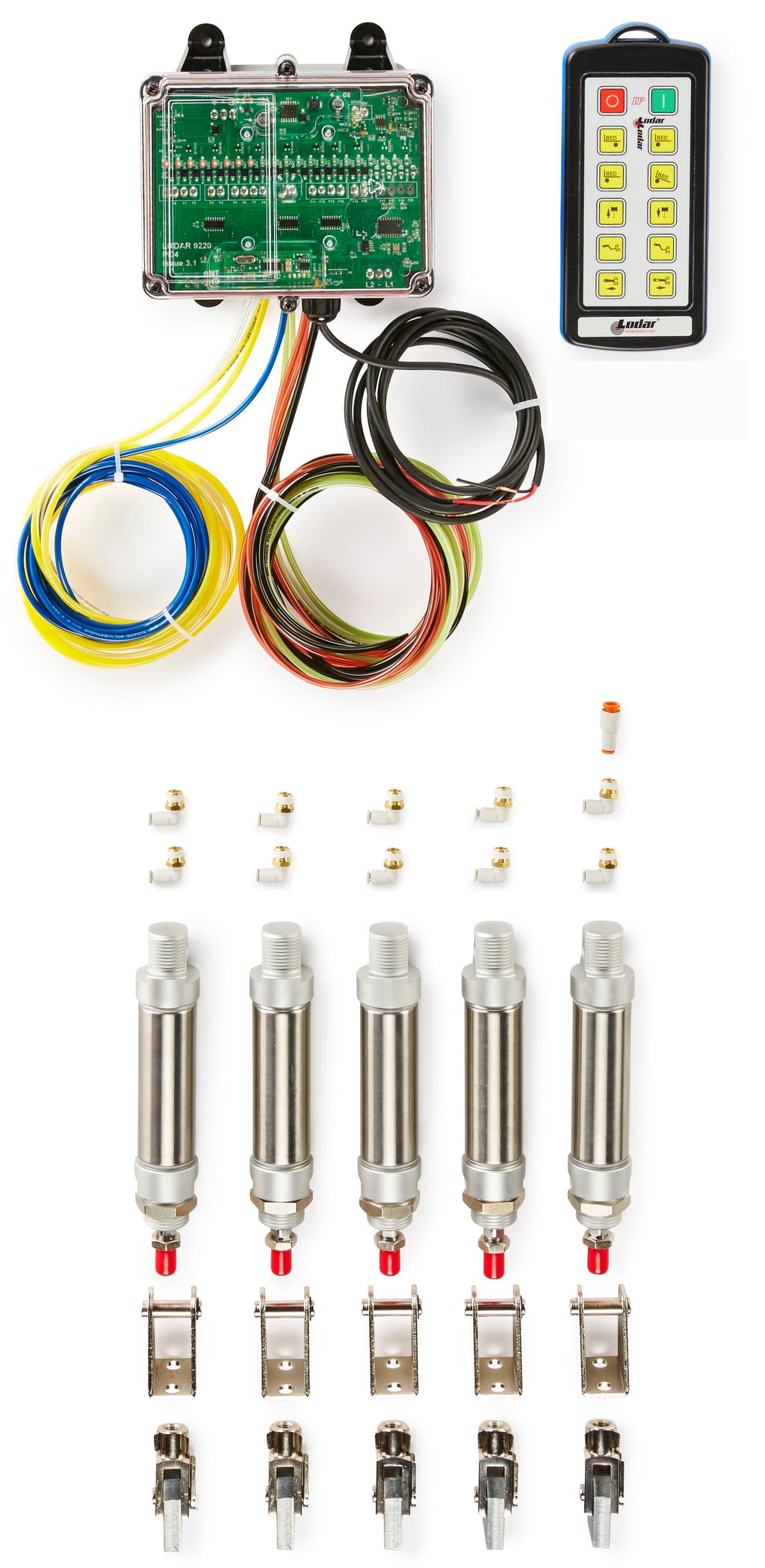

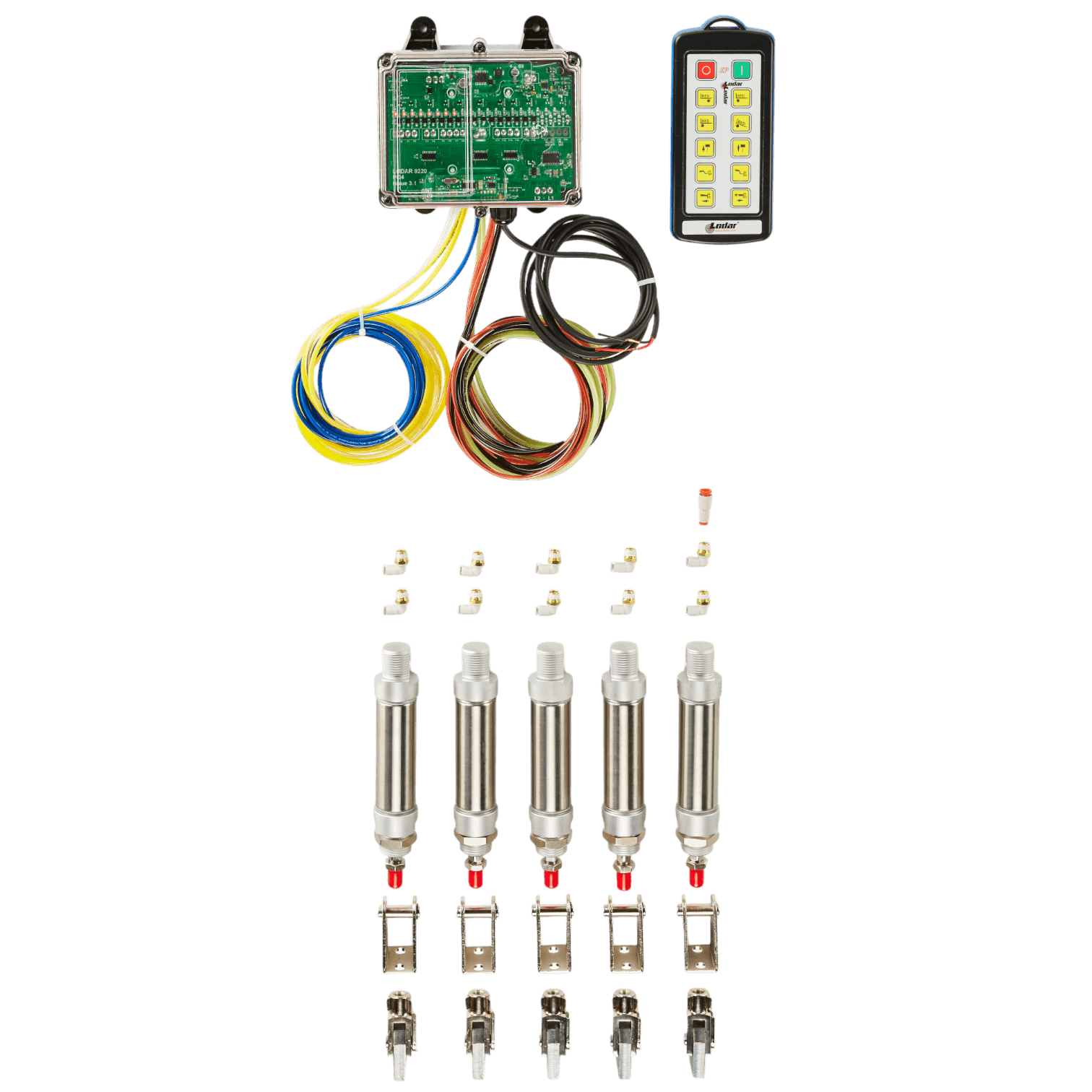

Complete wireless air actuator control system - includes the Standard handheld transmitter and a receiver with the pneumatic solenoid valves built into the box, coded together and ready to wire to your equipment. Operates 10 functions on the Lodar 9 Series.

The 10 Function Lodar Standard Wireless Air System (92260) gives you 10-function wireless control with a 150 ft (45 m) range on the 418 MHz band. Compressed air is plumbed into the receiver box; the solenoid valves inside switch it to the output ports to drive your air cylinders directly - there is no separate external valve bank. Actuators are included. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

Check your valve linkage before ordering. The actuators bolt onto the solid control rods your valve levers connect to, so you need clearance to mount them. A system with actuators included works only with solid "bang-bang" valve rods - not with valves operated by flexible cables or cords. If your valves are cable-operated, contact us.

Air supply. The air cylinders run on 21-120 psi (135 psi maximum); 80-100 psi is the ideal operating range. Plumb the system into a regulated air supply in that range.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 10 here - and confirm your power supply: this system runs on 12/24V DC. The FET receiver switches up to 10 A per output. Choose it when your functions draw more than the 5 A a relay receiver handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

  • 10 functions of wireless control
  • 10 functions = 5 double-acting valves, two directions each
  • Standard transmitter - IP 54 rated
  • Air receiver - pneumatic solenoid valves built in, IP 65 rated
  • Air actuators included
  • 12/24V DC operating voltage
  • 150 ft (45 m) operating range, 418 MHz band
  • Master output - fires on every function for run-along equipment
  • Lodar SKU 92260

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 10-function Lodar system? Compare the 10 Function Lodar IP Wireless System or 10 Function Lodar Direct-Mount Air System. Replacement handsets and receivers are sold separately.

Common uses: Medium-duty hydraulic builds in towing, ag, and utility trucks.
