Explore Lodar LTD’s 92 Series FET Receiver, a 6 Function Stainless Steel IP Wireless Control System. Ideal for industrial environments, its compatible with 12/24 volts DC, ensuring robust performance and reliability in demanding settings.

6 Function Lodar Stainless IP Wireless System | 9 Series FET

$1,581.00
Skip to product information
Explore Lodar LTD’s 92 Series FET Receiver, a 6 Function Stainless Steel IP Wireless Control System. Ideal for industrial environments, its compatible with 12/24 volts DC, ensuring robust performance and reliability in demanding settings.
  • Explore Lodar LTD’s 92 Series FET Receiver, a 6 Function Stainless Steel IP Wireless Control System. Ideal for industrial environments, its compatible with 12/24 volts DC, ensuring robust performance and reliability in demanding settings.
  • Explore Lodar LTD’s 92 Series FET Receiver, a 6 Function Stainless Steel IP Wireless Control System. Ideal for industrial environments, its compatible with 12/24 volts DC, ensuring robust performance and reliability in demanding settings.
6 Function Lodar Stainless IP Wireless System | 9 Series FET

6 Function Lodar Stainless IP Wireless System | 9 Series FET

92S06-8
$1,581.00
Custom Order

Complete plug-and-play wireless control system - includes the Stainless IP handheld transmitter and the FET receiver, coded together at the factory and ready to wire to your equipment. Operates 6 functions on the Lodar 9 Series.

The 6 Function Lodar Stainless IP Wireless System (92S06-8) gives you 6-function wireless control with a 150 ft (45 m) range on the 418 MHz band. Dc fet output switching, 10 A per output, 12/24V DC. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

Stainless steel build with custom labeling. The transmitter housing is the same grade of stainless steel used for ATM enclosures, and each unit gets labels designed specifically for it. These systems are more involved to set up than our other units, so after you order we will contact you to configure the system and confirm your labeling options.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 6 here - and confirm your power supply: this system runs on 12/24V DC. The FET receiver switches up to 10 A per output. Choose it when your functions draw more than the 5 A a relay receiver handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

  • 6 functions of wireless control
  • Stainless steel IP (Industrial Pro) transmitter - IP 65 rated
  • FET receiver - DC output switching, 10 A per output, 12/24V DC, wide band, IP 65 rated
  • 12/24V DC operating voltage
  • 150 ft (45 m) operating range, 418 MHz band
  • Master output - fires on every function for run-along equipment
  • Lodar SKU 92S06-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 6-function Lodar system? Compare the 6 Function Lodar Standard Wireless Air System or 6 Function Lodar Standard Wireless Electric Actuator System. Replacement handsets and receivers are sold separately.

Common uses: Marine, utility, and industrial fleets where corrosion resistance and rugged durability are critical.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

92206 Series Options:

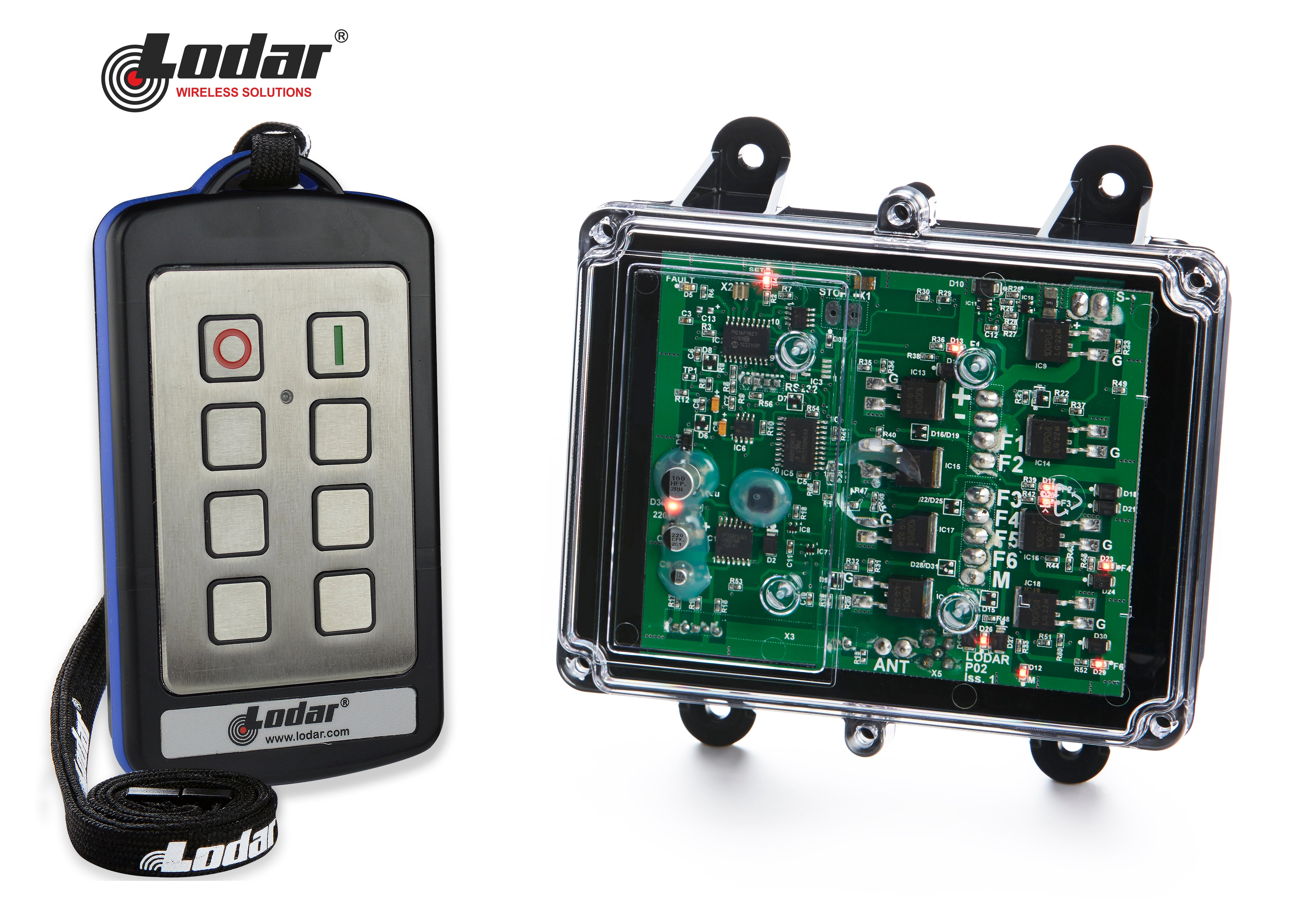

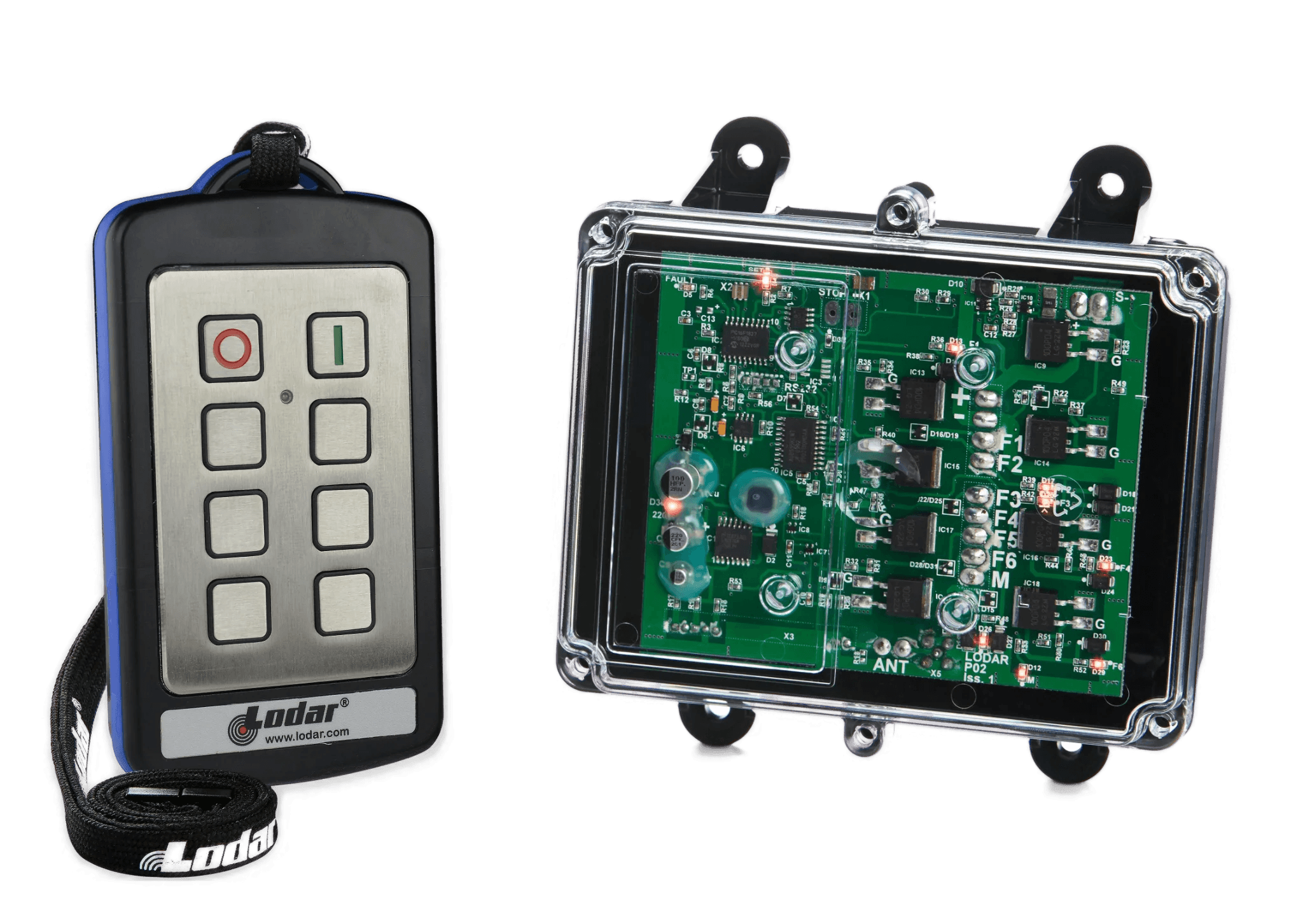

A transparent case with a remote control and circuit board against a black background highlights the Lodar LTD 6 Function IP Wireless Control System, 92 Series FET Receiver, featuring a 200-foot range.
Standard Receiver 92206-8
-($296.00)
Two electronic devices: a Lodar LTD 6 Function IP Wireless Control System with buttons and a 92 Series FET Keypad Receiver featuring labeled buttons in clear casings.
Keypad Receiver 92206K-8
-($182.00)
Explore Lodar LTD’s 92 Series FET Receiver, a 6 Function Stainless Steel IP Wireless Control System. Ideal for industrial environments, its compatible with 12/24 volts DC, ensuring robust performance and reliability in demanding settings.
Stainless Steel Transmitter 92S06-8
What's Included
Specifications
Transmitter
Stainless Steel Industrial
Functions
6
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 65
Receiver IP Rating
IP 65
Operating Distance
150 ft. (45 m.)
Master Output
Yes
Max Amps
15
Series
9000 Series
Transmitter Batteries
AAA x 4
Channel
Wide Band, Fixed
Frequency
418 MHz
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (2)
6 Function Lodar Stainless IP Transmitter | 9 Series
6 Function Lodar Stainless IP Transmitter | 9 SeriesSKU: 92S06TX-8
$755.00
6 Function Replacement FET Receiver | 9 Series
6 Function Replacement FET Receiver | 9 SeriesSKU: 9206RX
$829.00
Resources

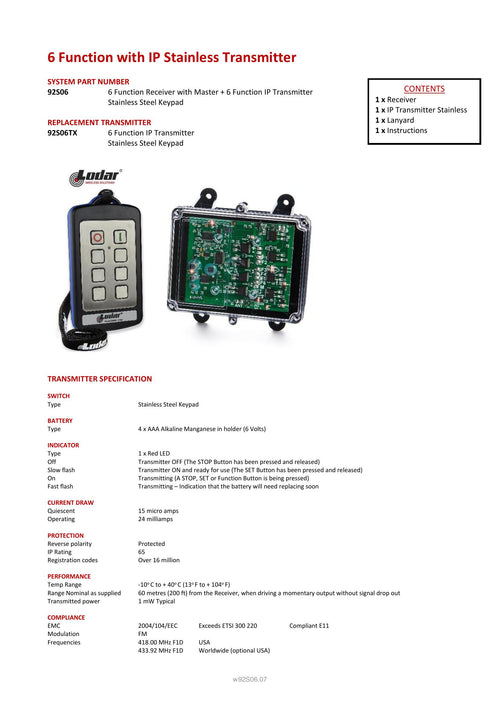

92S06 - 6 Function with IP Stainless Transmitter Spec Sheet
92S06 - 6 Function with IP Stainless Transmitter
92S06 - 6 Function with IP Stainless Transmitter
Spec Sheet
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
