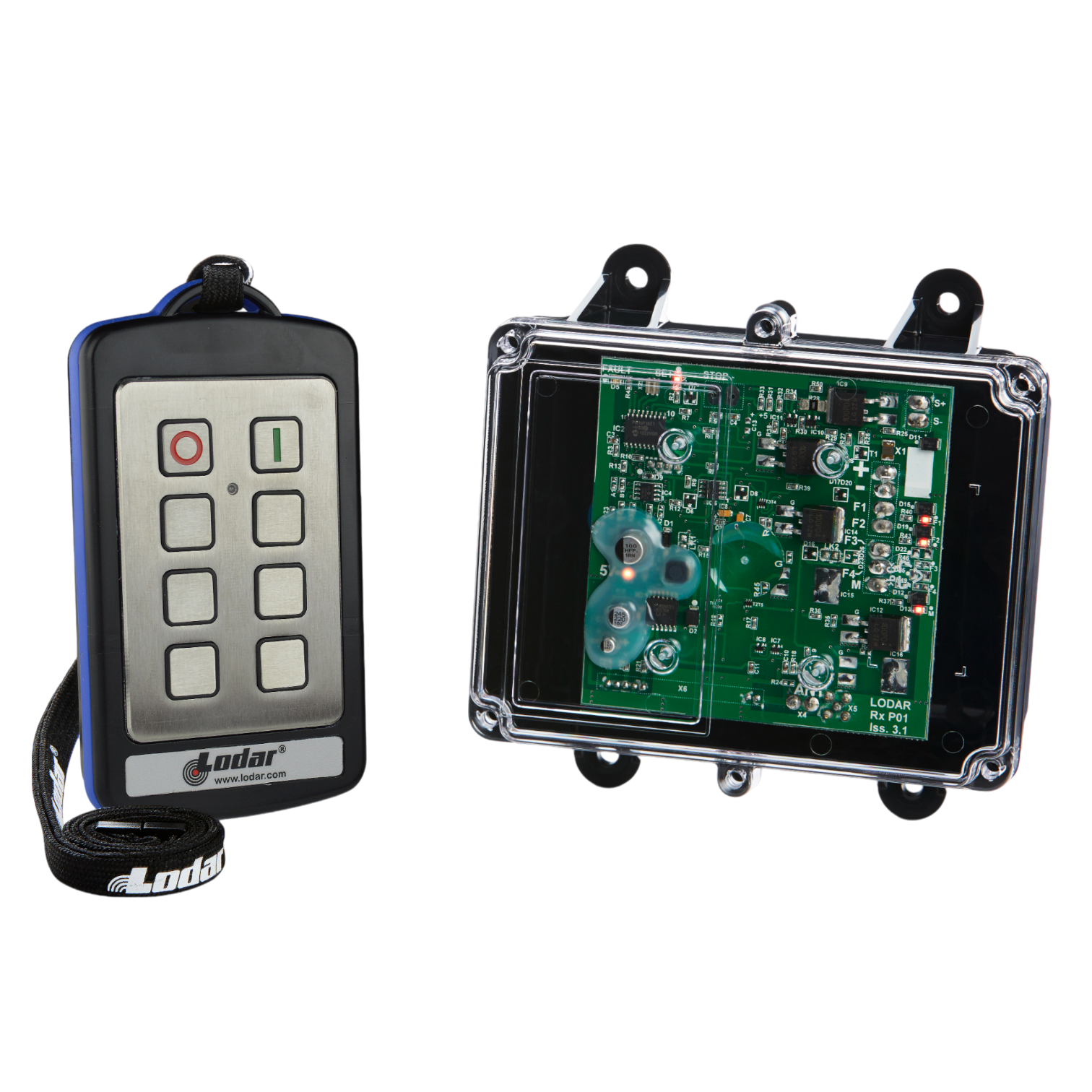

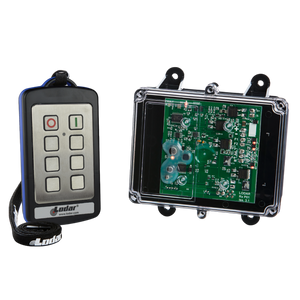

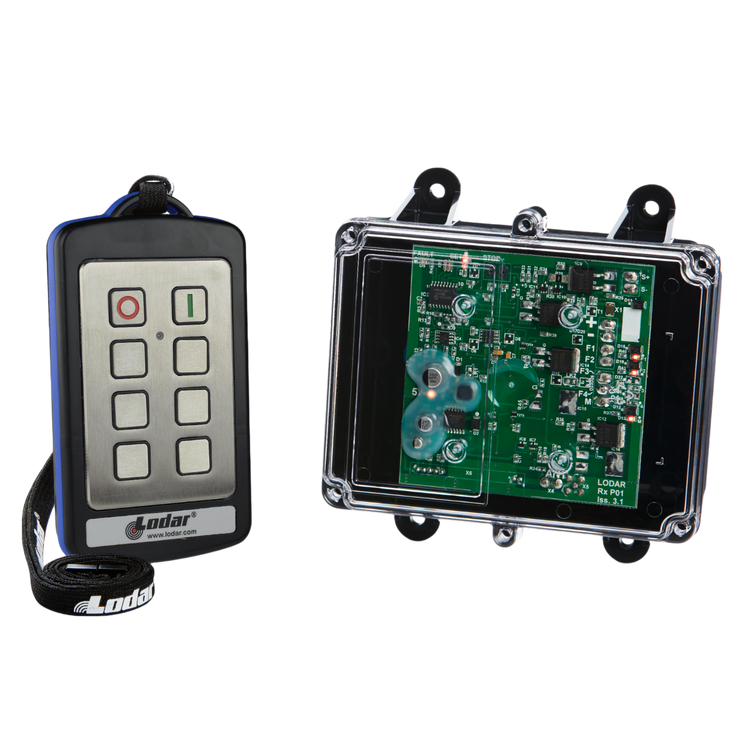

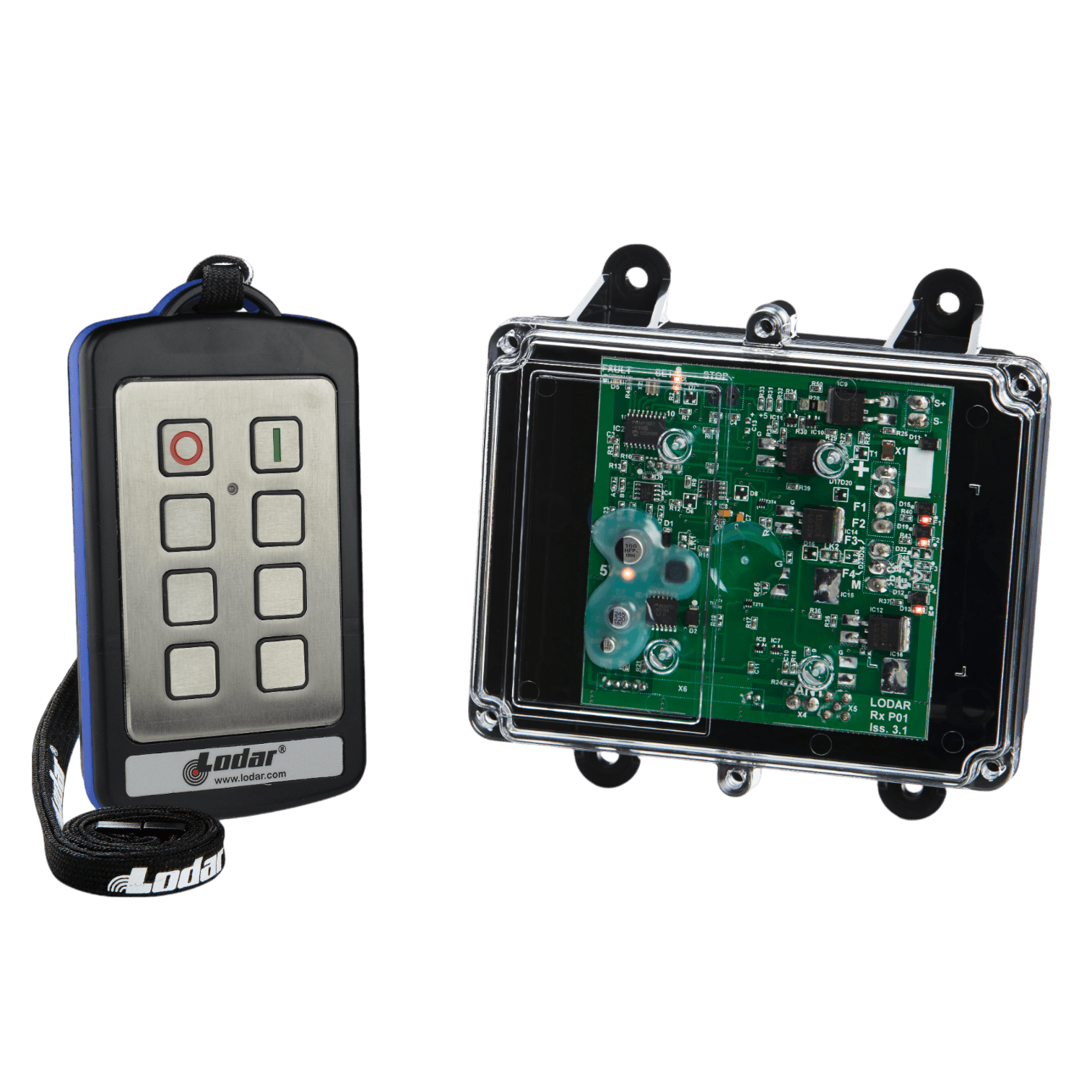

2 Function Stainless Steel IP Wireless Control System | 92 Series | FET Receiver

2 Function Stainless Steel IP Wireless Control System | 92 Series | FET Receiver
Description
The 2 Function Lodar Stainless Industrial Wireless Control System combines rugged reliability with corrosion resistance. Housed in stainless steel and built to IP65 standards, this system provides dependable two-function momentary switching for solenoids, relays, or electric-over-hydraulic valves.
- 2 functions = control of one valve (two directions) or two solenoids
- Stainless steel housing for marine and corrosive environments
- Industrial handheld transmitter (IP65)
- Sealed receiver (IP65)
- Outputs default to momentary operation
Applications: Marine, utility, and industrial equipment where stainless construction and wireless reliability are essential.
For larger systems, see the 10-function Industrial system or 16-function version.
Specifications
Specification | Details |
---|---|
CHANNEL | Wide Band, Fixed |
FREQUENCY | 418 MHz |
FUNCTIONS | 2 |
MASTER OUTPUT | Yes |
MAX AMPS | 15 |
OPERATING DISTANCE | 150 ft. (45 m.) |
OPERATING VOLTAGE | 12/24 Volts DC |
RECEIVER IP RATING | IP 65 |
SERIES | 9000 Series |
TRANSMITTER | Stainless Steel Industrial |
TRANSMITTER BATTERIES | AAA x 4 |
TRANSMITTER IP RATING | IP 65 |
Warranty
Replacement Parts

2 Function Lodar Replacement Stainless Steel IP Transmitter | 9000 Series
Engineered for fleet work, the Stainless Steel 2 Function Lodar transmitter delivers corrosion-resistant performance for 90, 92, and 96 Series systems. The IP65 housing withstands harsh environments without compromising control. 2 functions in a ...

2 Function Lodar Replacement FET Receiver | 92 Series
This FET Receiver is a replacement for Lodar Systems that offers 2 functions. It boasts an IP67 rating and comes with a master output.
