20 Function Direct Mount Wireless Air System – Jerr-Dan (Husco Valves)
20 Function Direct Mount Wireless Air System – Jerr-Dan (Husco Valves)
Description

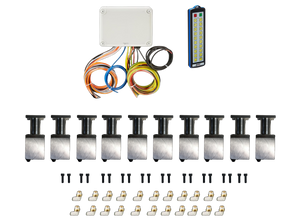

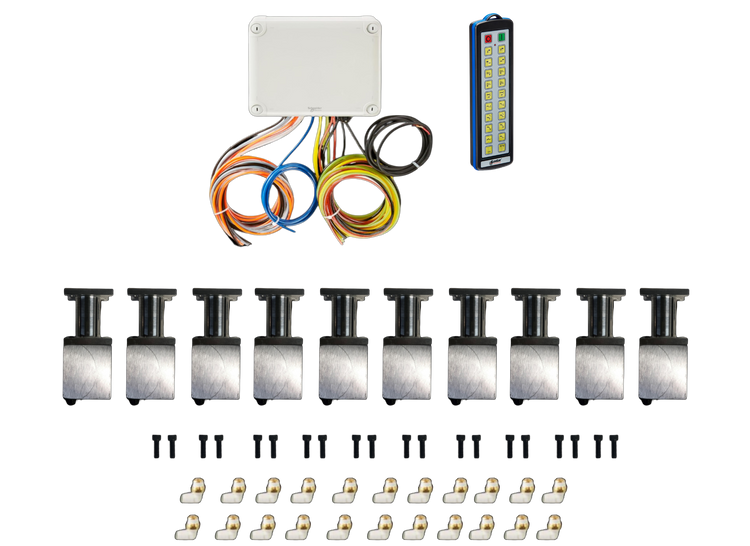

This 20-function Lodar system brings maximum control to Jerr-Dan wreckers. Direct-mount actuators fit Husco spools, providing wireless operation of ten valves (two directions each) with no linkage or levers.
- 20 functions = 10 valves of wireless control
- Direct-mount pneumatic actuators for Husco spools
- Industrial handheld transmitter (IP65)
- Receiver sealed to IP65
- Requires 90–120 PSI air and 12V DC power
Applications: Jerr-Dan wreckers and recovery rigs with Husco spool valves needing large-scale wireless functionality.
Specifications
| Specification | Details |
|---|---|
| ACTUATOR | Husco Direct Mount Air |
| FUNCTIONS | 20 |
| MASTER OUTPUT | No |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 150 ft. (45 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 65 |
| SERIES | 9000 Series |
| SPECIAL FEATURES | Receiver with Air I/O + Air Actuators |
| TRANSMITTER | Industrial Pro |
| TRANSMITTER BATTERIES | AAA x 4 |
| TRANSMITTER IP RATING | IP 65 |
| TYPE | Full System - No Actuators |
| WIRING INCLUDED | 8 ft. power / 5 ft. air input / 3½ ft. air outputs |
