12 Function Direct Mount Wireless Air System – Miller (Gresen Valves)
12 Function Direct Mount Wireless Air System – Miller (Gresen Valves)
Description

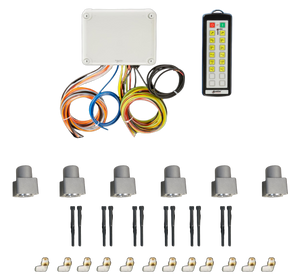

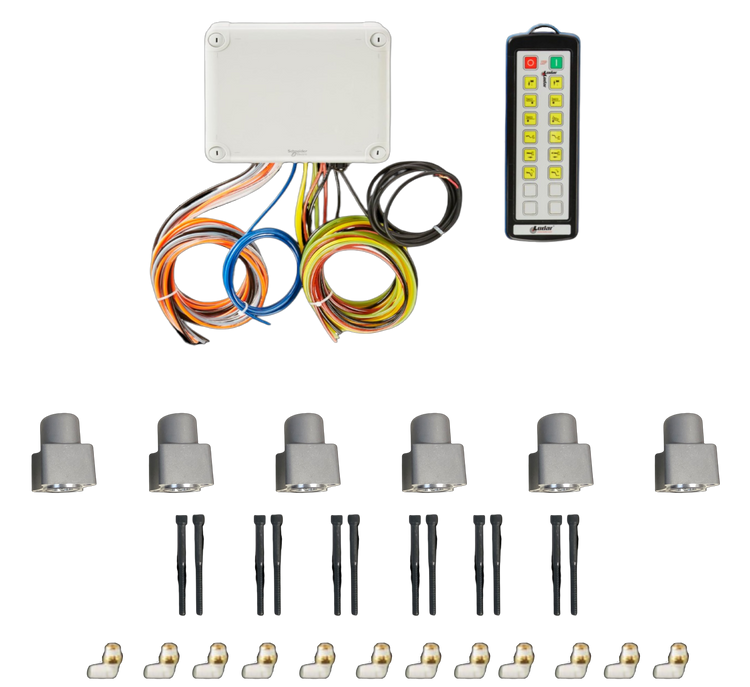

This 12-function Lodar direct-mount system mounts pneumatic actuators directly on Gresen spool valves for Miller hydraulics. Delivers wireless control of six valves (two directions each).
- 12 functions = 6 valves of wireless control
- Direct-mount pneumatic actuators for Gresen spools
- Industrial transmitter (IP65)
- Receiver sealed to IP65
- Requires 90–120 PSI air and 12V DC
Applications: Miller wreckers and rollback carriers.
Specifications
| Specification | Details |
|---|---|
| ACTUATOR | Gressen Direct Mount Air |
| FREQUENCY | 433 MHz |
| FUNCTIONS | 12 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 150 ft. (45 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 65 |
| SERIES | 9000 Series |
| SPECIAL FEATURES | Receiver with Air I/O + Air Actuators |
| TRANSMITTER | Industrial Pro |
| TRANSMITTER BATTERIES | AAA x 4 |
| TRANSMITTER IP RATING | IP 65 |
| TYPE | Full System |
| WIRING INCLUDED | 8 ft. power / 5 ft. air input / 3½ ft. air outputs |
Replacement Parts
16 Function Lodar Replacement IP Transmitter | 9000 Series
The 16 Function Lodar Industrial Replacement Transmitter restores full control to your 16-function system. This OEM remote features IP65 sealing for durability and quick pairing with your existing Lodar receiver. 16-function OEM Lodar replacemen...
Bolt-on Actuator for Gresen Spool
This Bolt-on Actuator is a direct replacement for the Wireless Control Air System, designed specifically for Gresen Spools found on Miller Towing Equipment. With a seamless installation process and reliable performance, this actuator ensures smoot...
