10 Function Lodar Direct-Mount Air System | Miller Gresen

Complete wireless air actuator control system - includes the Standard handheld transmitter and a receiver with the pneumatic solenoid valves built into the box, coded together and ready to wire to your equipment. Operates 10 functions on the Lodar 9 Series.

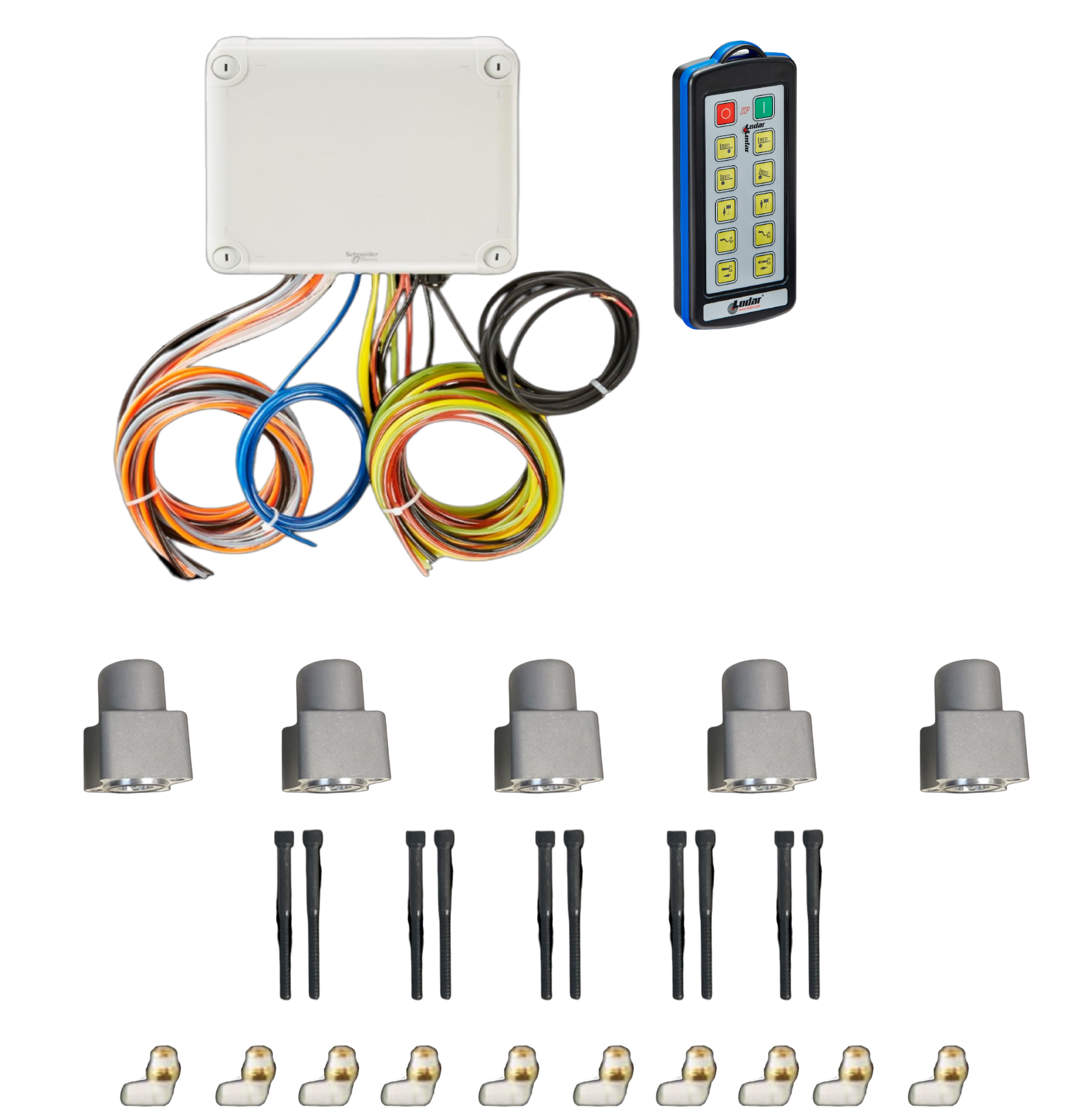

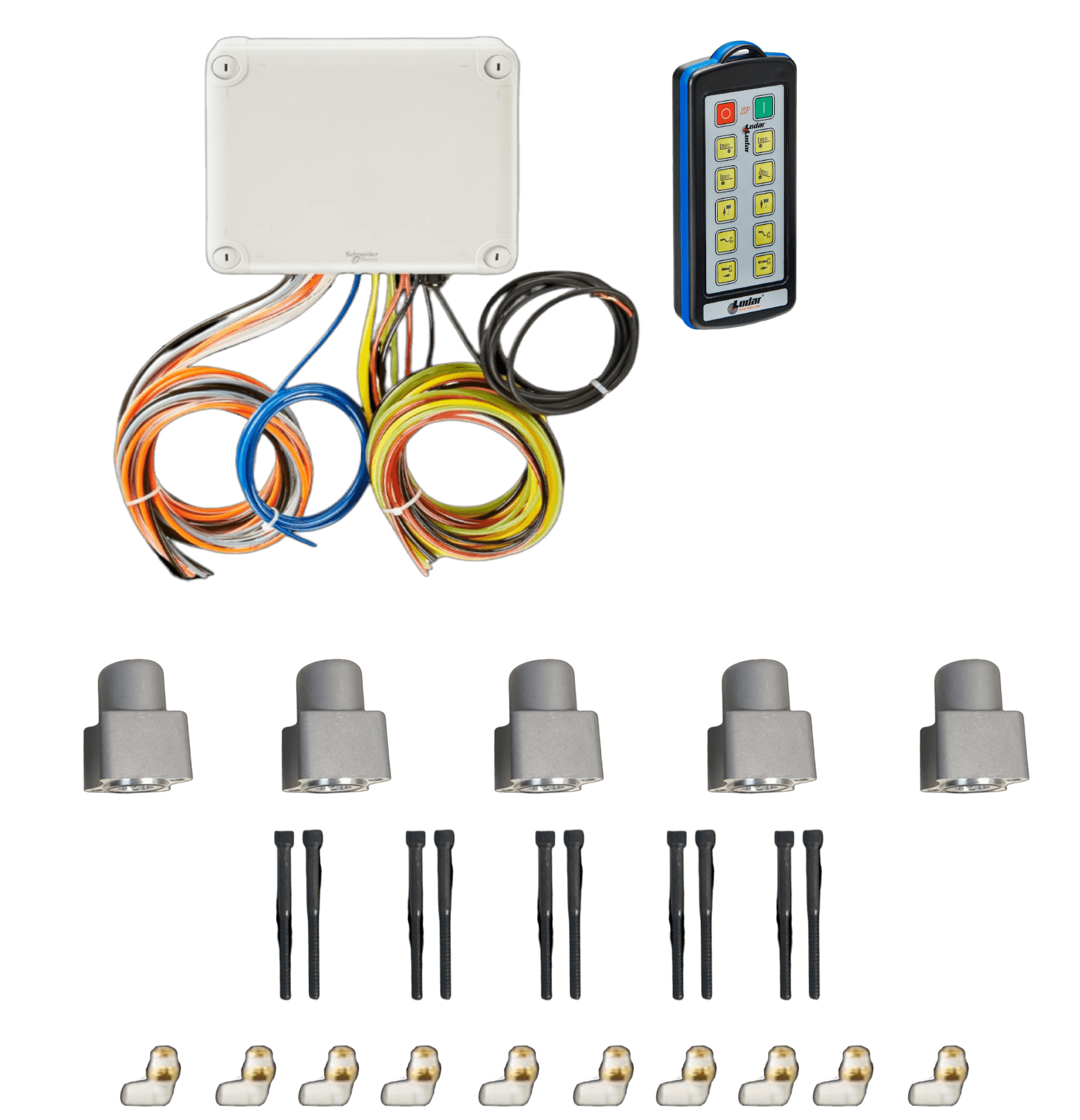

The 10 Function Lodar Direct-Mount Air System (92260DMM-8) gives you 10-function wireless control with a 150 ft (45 m) range. Compressed air is plumbed into the receiver box; the solenoid valves inside switch it to the output ports to drive your air cylinders directly - there is no separate external valve bank. The cylinders mount directly to your valve spools. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

Mounts directly to your valves. This direct-mount system bolts onto the Gresen spool valves on Miller units - there are no separate actuators and no control-rod linkage. Confirm your valves are Gresen before ordering.

Air supply. The air cylinders run on 21-120 psi (135 psi maximum); 80-100 psi is the ideal operating range. Plumb the system into a regulated air supply in that range.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 10 here - and confirm your power supply: this system runs on 12/24V DC. Each FET output is rated to 10 A, with the system rated to 15 A total across all outputs. Run several heavy functions at once and the combined draw can reach that 15 A ceiling, where the overload protection trips to protect the board. Solid-state switching means there are no mechanical relay contacts to wear or arc. It is the current standard across the Lodar line — choose it for functions that draw more than the 5 A per output a mechanical relay handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

• 10 functions of wireless control
• 10 functions = 5 double-acting valves, two directions each
• Standard transmitter - IP 65 rated
• Air receiver - pneumatic solenoid valves built in, IP 65 rated
• Direct-mount to Gresen spool valves - no separate actuators
• 12/24V DC operating voltage
• 150 ft (45 m) operating range
• Master output - fires on every function for run-along equipment
• Lodar SKU 92260DMM-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 10-function Lodar system? Compare the 10 Function Lodar IP Wireless System or 10 Function Lodar Direct-Mount Air System. Replacement handsets and receivers are sold separately.

Common uses: Miller wreckers and hydraulic carriers.
