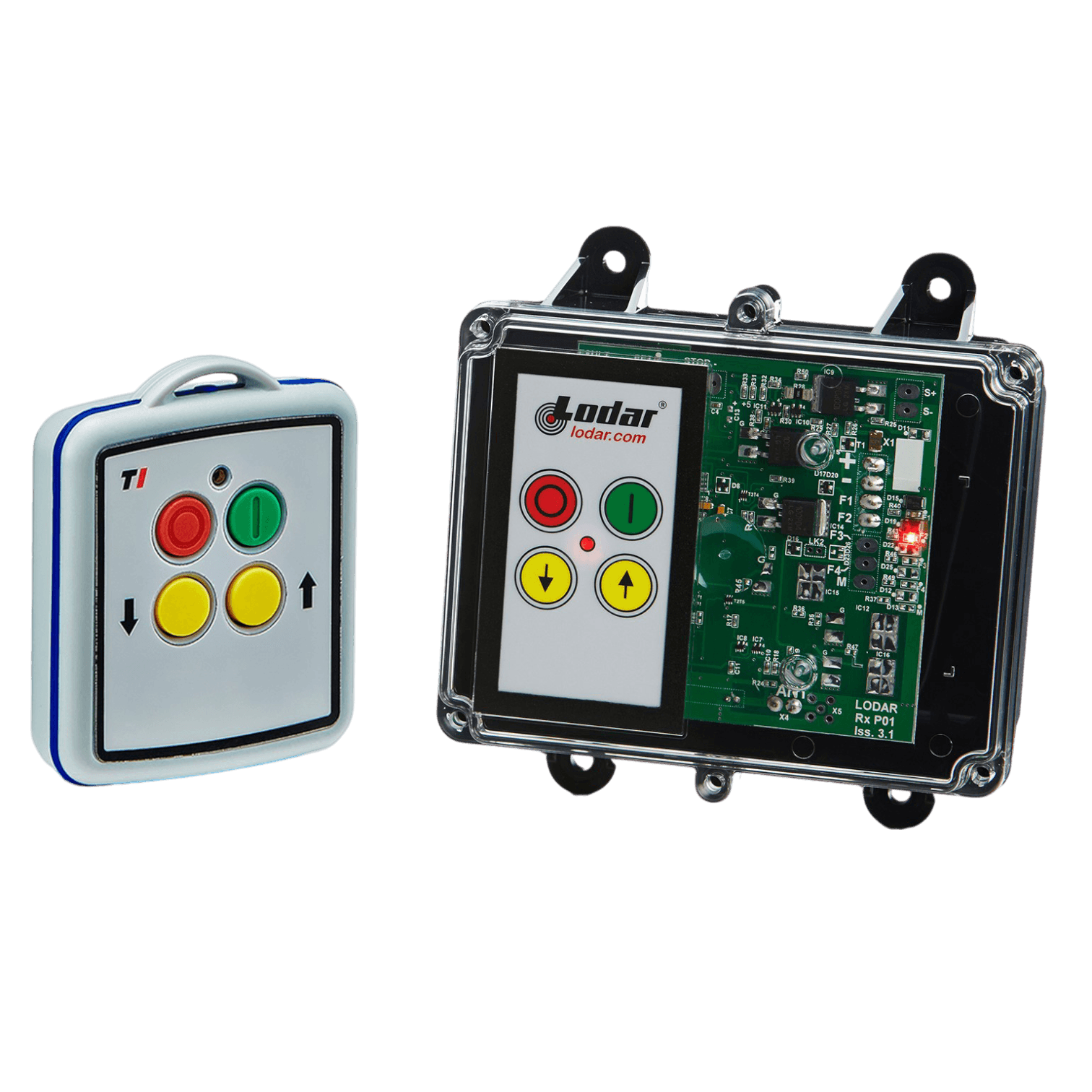

The 2 Function Mini Wireless Control System from Lodar LTD, part of the 92 Series, includes two electronic control panels with a circuit board and features buttons in red, green, and yellow. This system is designed for durability with an IP67 rating and incorporates a keypad relay receiver for smooth wireless functionality.

2 Function Lodar Mini Wireless System | 9 Series Relay | Keypad | No Master

92000K

$670.00

In Stock

Complete plug-and-play wireless control system - includes the Mini handheld transmitter and the Relay receiver, coded together at the factory and ready to wire to your equipment. Operates 2 functions on the Lodar 9 Series.

The 2 Function Lodar Mini Wireless System (92000K) gives you 2-function wireless control with a 150 ft (45 m) range. DC mechanical-relay output switching, 5 A per output, 12/24V DC. This version has no master output. Choose a master-output model if you need an extra output that fires alongside every function - for example, an HPU that must run during a lift.

What does the keypad receiver add?

The keypad receiver lets you operate the 2 functions directly at the receiver with a built-in keypad, as a backup to the wireless handset. Confirm your power supply: this system runs on 12/24V DC. Each mechanical relay output is rated to 5 A, with the system rated to 7 A total. Keep any single function at or under 5 A; for heavier loads, the solid-state FET version carries 10 A per output. For functions above 5 A, step up to the solid-state FET version — 10 A per output, 15 A system total.

  • 2 functions of wireless control
  • Mini transmitter - IP 67 rated
  • Relay receiver - DC mechanical relays, 5 A per output, 12/24V DC, IP 65 rated
  • 12/24V DC operating voltage
  • 150 ft (45 m) operating range
  • Keypad receiver - operate functions at the receiver as a wired backup
  • No master output
  • Lodar SKU 92000K

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 2-function Lodar system? Compare the 2 Function Lodar Standard Wireless System or 2 Function Lodar Stainless IP Wireless System. Replacement handsets and receivers are sold separately.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.
What's Included
Specifications
Transmitter
Mini
Functions
2
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 67
Receiver IP Rating
IP 65
Operating Distance
150 ft. (45 m.)
Master Output
No
Max Amps
15
Series
9000 Series
Special Features
Receiver Keypad
Channel
Wide Band, Fixed
Wiring Included
9 ft. (3m) Wiring Loom Through Gland
Switch Type
Silicone Rubber Keypad with Carbon Pill
Warranty
Replacement Parts (2)
Resources
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
