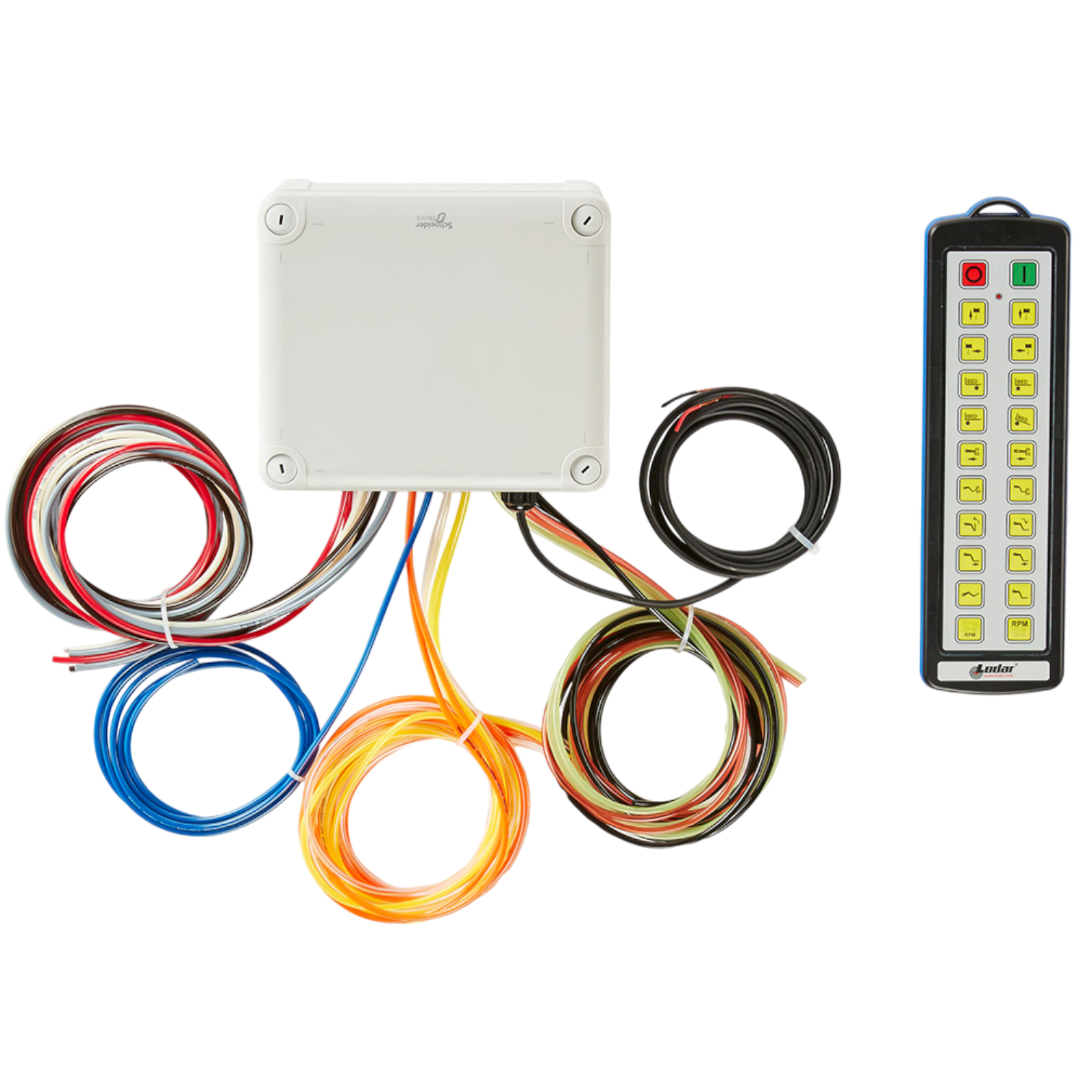

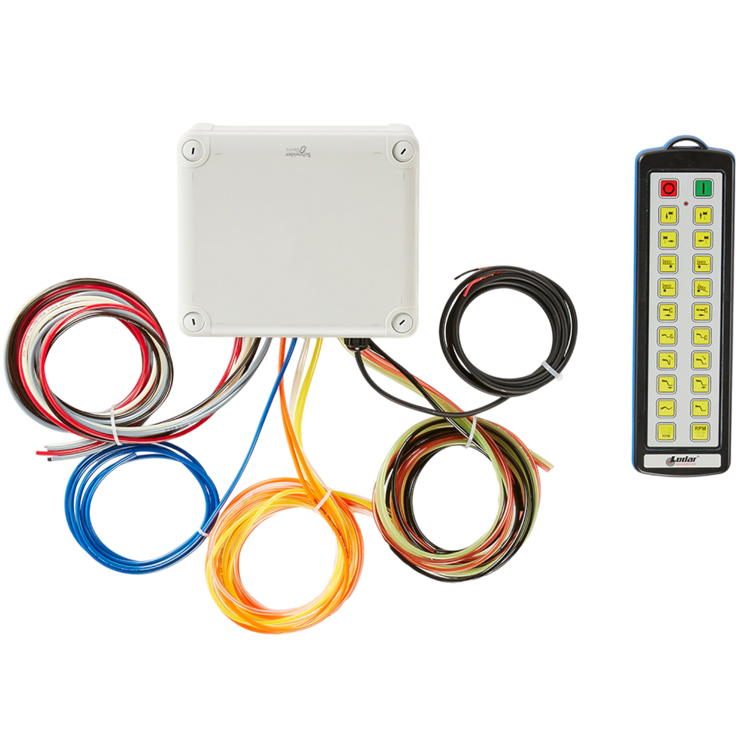

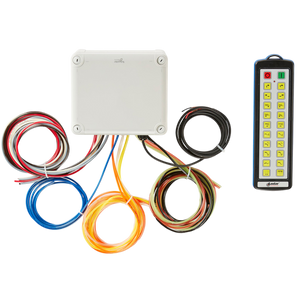

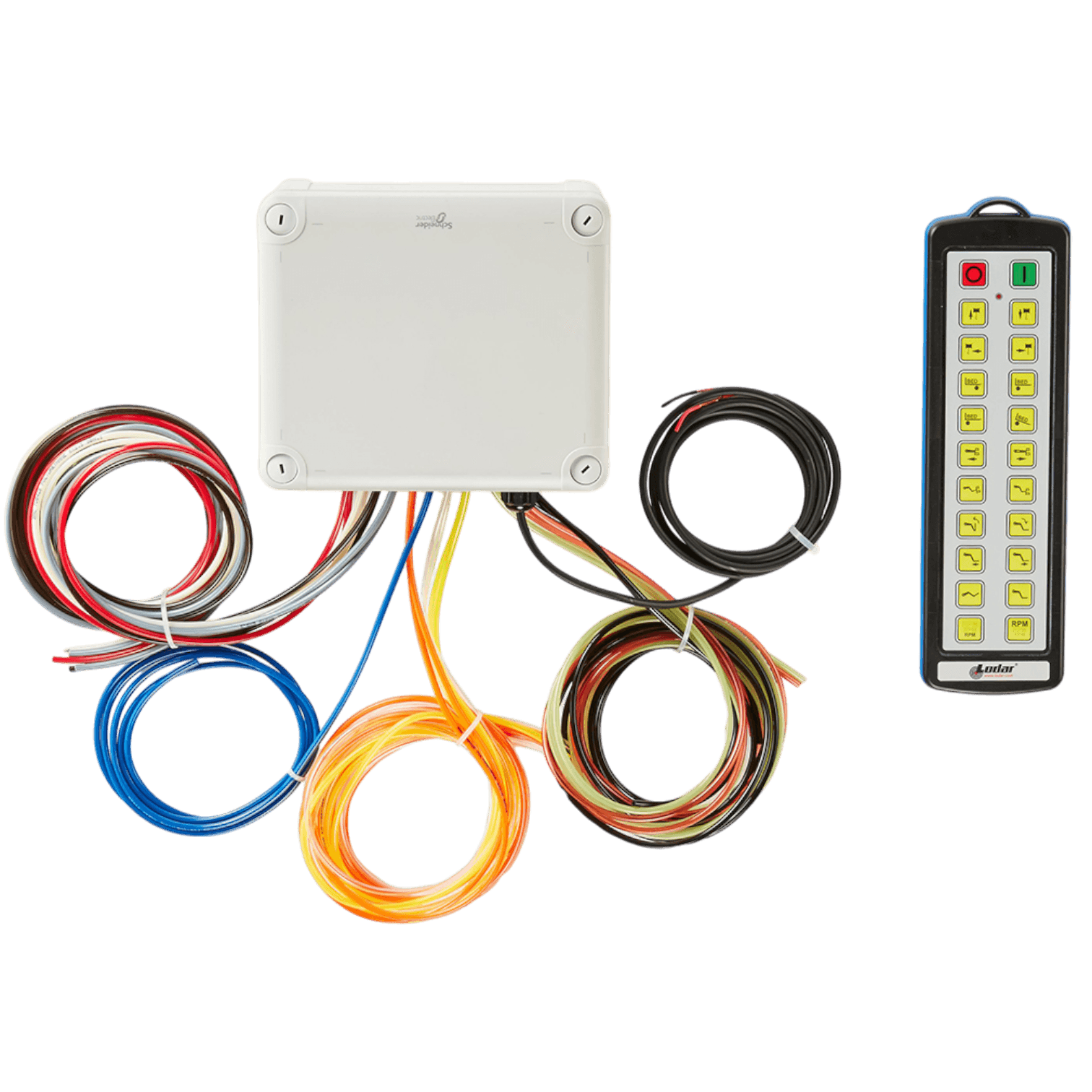

20 Function IP Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators
Description
Maximize control with 20 functions. This Lodar 92 Series system handles ten valves (two directions each) wirelessly when paired with your own pneumatic actuators. A robust solution for the largest recovery or utility builds.
- 20 functions = 10 valves of wireless control
- Actuators not included
- Standard Series transmitter (IP54) with AAA x 2 batteries
- Receiver sealed to IP67
- Requires onboard air supply (90–120 PSI) and 12V DC power
Applications: Heavy recovery, industrial trucks, and complex hydraulic systems needing extensive wireless control.
Specifications
Specification | Details |
---|---|
FUNCTIONS | 20 |
MASTER OUTPUT | Yes |
MAX AMPS | 15 |
OPERATING DISTANCE | 150 ft. (45 m.) |
OPERATING VOLTAGE | 12/24 Volts DC |
RECEIVER IP RATING | IP 67 |
SERIES | 9000 Series |
SPECIAL FEATURES | Receiver with Air I/O |
TRANSMITTER | Industrial Pro |
TRANSMITTER BATTERIES | AAA x 4 |
TRANSMITTER IP RATING | IP 65 |
WIRING INCLUDED | 8 ft. power / 5 ft. air input / 3½ ft. air outputs |
Warranty
Reviews
LODAR – The industry leader in wireless solutions.
Technology that keeps your equipment and personnel safe.
QUALITY
Built to the highest standards for industrial use.
WARRANTY
Covered by Lodar' 5-year pro-rated warranty and service department.
PWM – AVAILABLE
Technology that keeps your equipment and personnel safe.
PROFESSIONAL
Lodar is designed for real use in the harshest of conditions.
PROGRAMMABLE
Easy to configure technology for hundreds of applications.
