SAFETY
Technology that keeps your equipment and personnel safe.

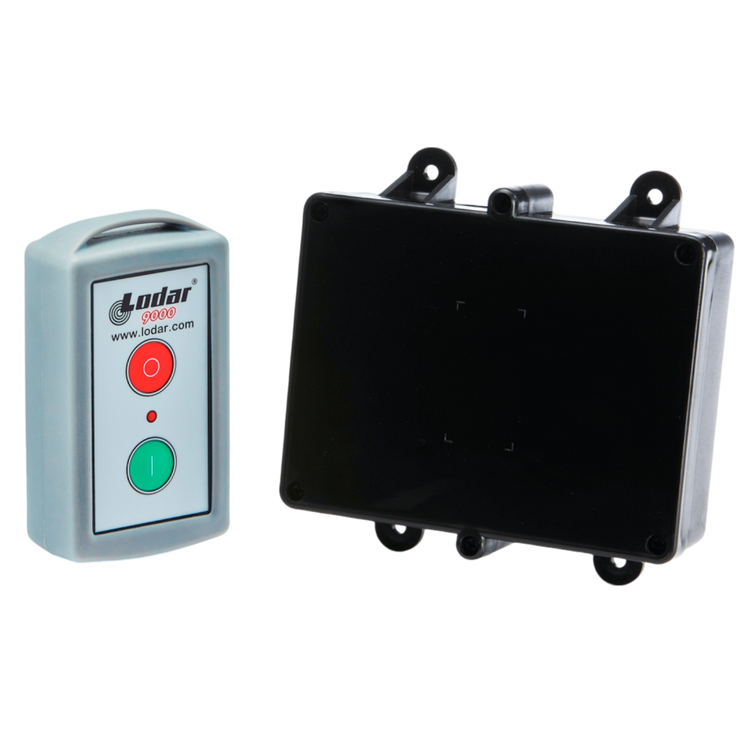

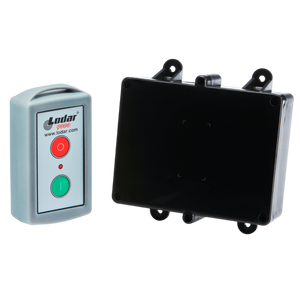

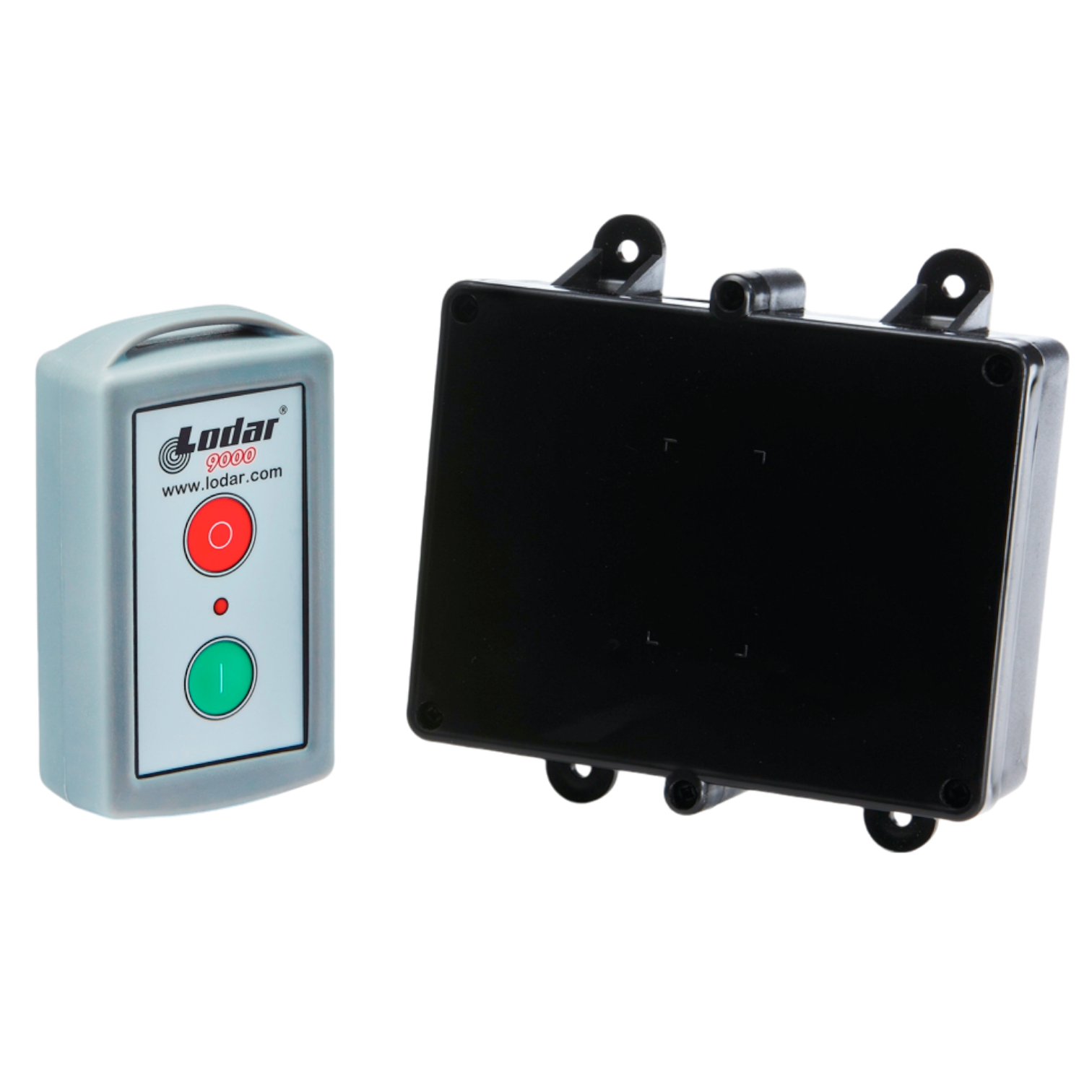

This 5 amp relay system with 1 function is commonly utilized for basic on/off functions. You have the choice to connect your application to a receiver, which allows for either latching on/off or momentary on/off.
Specification | Details |
---|---|
FUNCTIONS | 1 |
MASTER OUTPUT | Yes |
MAX AMPS | 5 |
OPERATING DISTANCE | 150 ft. (45 m.) |
OPERATING VOLTAGE | 12/24 Volts DC |
RECEIVER IP RATING | IP 67 |
SERIES | 9000 Series |
SPECIAL FEATURES | Momentary or Latching |
TRANSMITTER | Standard |
TRANSMITTER BATTERIES | AAA x 2 |
TRANSMITTER IP RATING | IP 54 |
WIRING INCLUDED | 9 ft. (3m) wiring loom through gland |
