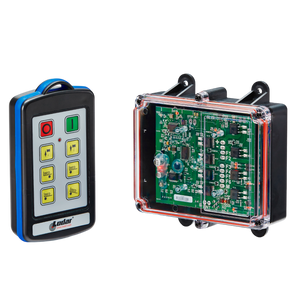

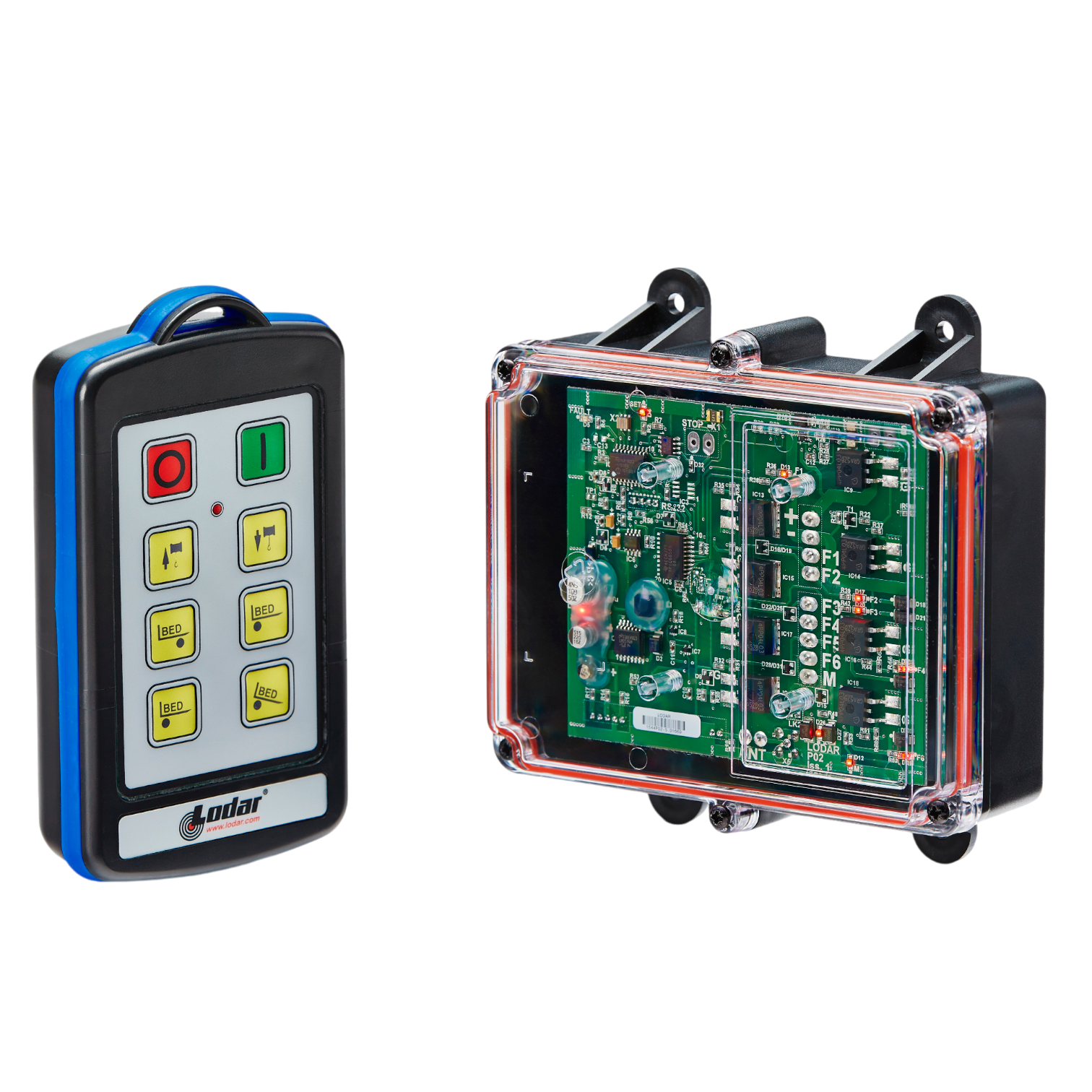

A transparent case with a remote control and circuit board against a black background highlights the Lodar LTD 6 Function IP Wireless Control System, 92 Series FET Receiver, featuring a 200-foot range.
Pairing the 92 Series Lodar Remote & Transmitter

6 Function Lodar IP Wireless System | 9 Series FET

92206-8

(1)
$1,285.00

Choose Your Inserts

1
Quick Select Choose a preset configuration or customize below
Your Configuration Click on a zone to select an icon
Configuration template
F1 Click to select
F2 Click to select
F3 Click to select
F4 Click to select
F5 Click to select
F6 Click to select

In Stock

Complete plug-and-play wireless control system - includes the IP handheld transmitter and the FET receiver, coded together at the factory and ready to wire to your equipment. Operates 6 functions on the Lodar 9 Series.

The 6 Function Lodar IP Wireless System (92206-8) gives you 6-function wireless control with a 150 ft (45 m) range. DC FET output switching, 10 A per output (15 A system total), 12/24V DC. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 6 here - and confirm your power supply: this system runs on 12/24V DC. Each FET output is rated to 10 A, with the system rated to 15 A total across all outputs. Run several heavy functions at once and the combined draw can reach that 15 A ceiling, where the overload protection trips to protect the board. Solid-state switching means there are no mechanical relay contacts to wear or arc. It is the current standard across the Lodar line — choose it for functions that draw more than the 5 A per output a mechanical relay handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

  • 6 functions of wireless control
  • IP (Industrial Pro) transmitter - IP 65 rated
  • FET receiver - solid-state DC switching, 10 A per output (15 A system total), 12/24V DC, wide band, IP 65 rated
  • 12/24V DC operating voltage
  • 150 ft (45 m) operating range
  • Master output - fires on every function for run-along equipment
  • Lodar SKU 92206-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 6-function Lodar system? Compare the 6 Function Lodar Standard Wireless Air System or 6 Function Lodar Standard Wireless Electric Actuator System. Replacement handsets and receivers are sold separately.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

92206 Series Options:

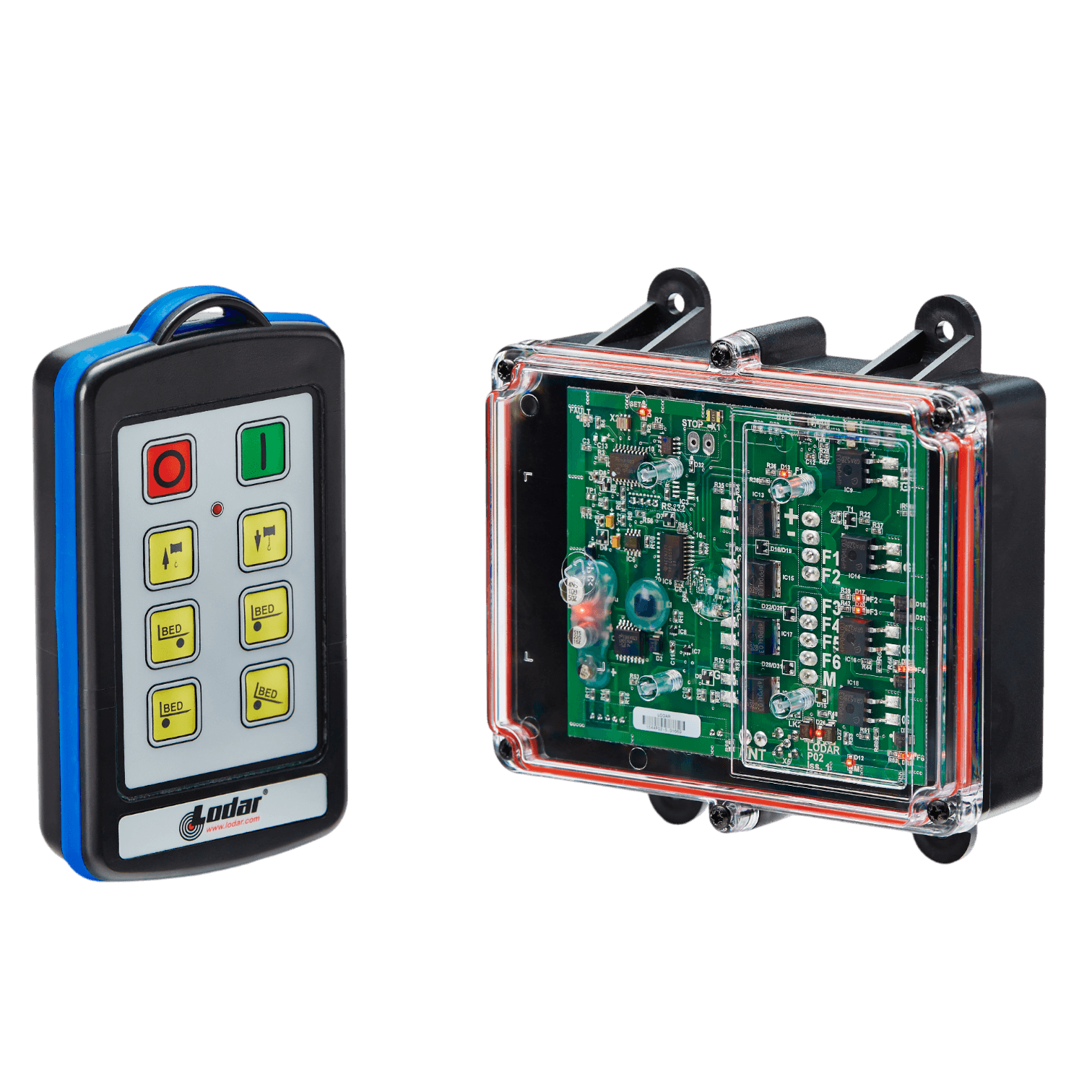

A transparent case with a remote control and circuit board against a black background highlights the Lodar LTD 6 Function IP Wireless Control System, 92 Series FET Receiver, featuring a 200-foot range.
Standard Receiver92206-8
Two electronic devices: a Lodar LTD 6 Function IP Wireless Control System with buttons and a 92 Series FET Keypad Receiver featuring labeled buttons in clear casings.
Keypad Receiver92206K-8+$114.00
Explore Lodar LTD’s 92 Series FET Receiver, a 6 Function Stainless Steel IP Wireless Control System. Ideal for industrial environments, its compatible with 12/24 volts DC, ensuring robust performance and reliability in demanding settings.
Stainless Steel Transmitter92S06-8+$296.00
What's Included
Specifications
Transmitter
Industrial Pro
Functions
6
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 65
Receiver IP Rating
IP 65
Operating Distance
150 ft. (45 m.)
Master Output
Yes
Max Amps
15
Series
9000 Series
Channel
Wide Band, Fixed
Frequency
418 MHz
Wiring Included
9 ft. (3m) Wiring Loom Through Gland
Warranty
Replacement Parts (2)
Videos (1)

Pairing the 92 Series Lodar Remote & Transmitter

Resources
Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
