Home 4 Function Direct Mount Wireless Air System – Miller (Gresen Valves)

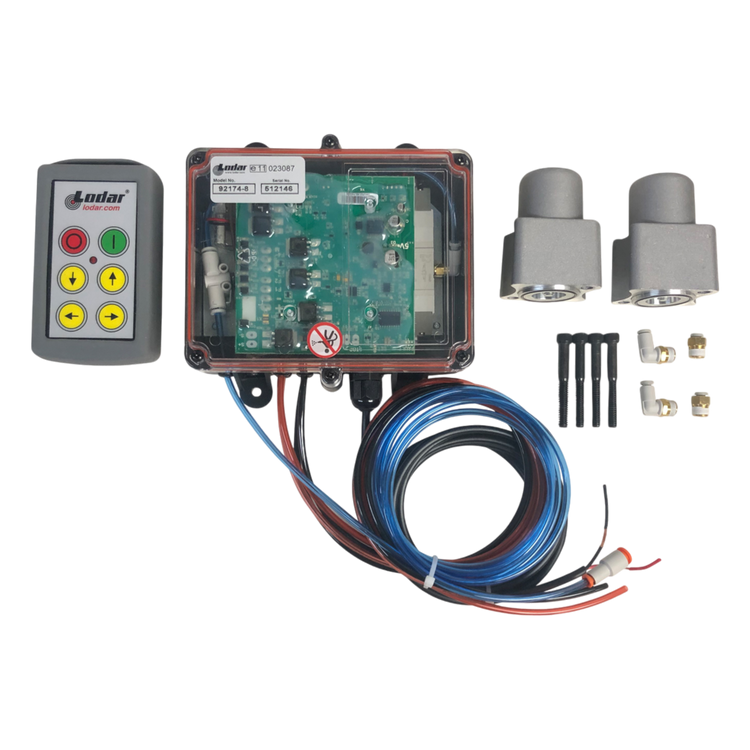

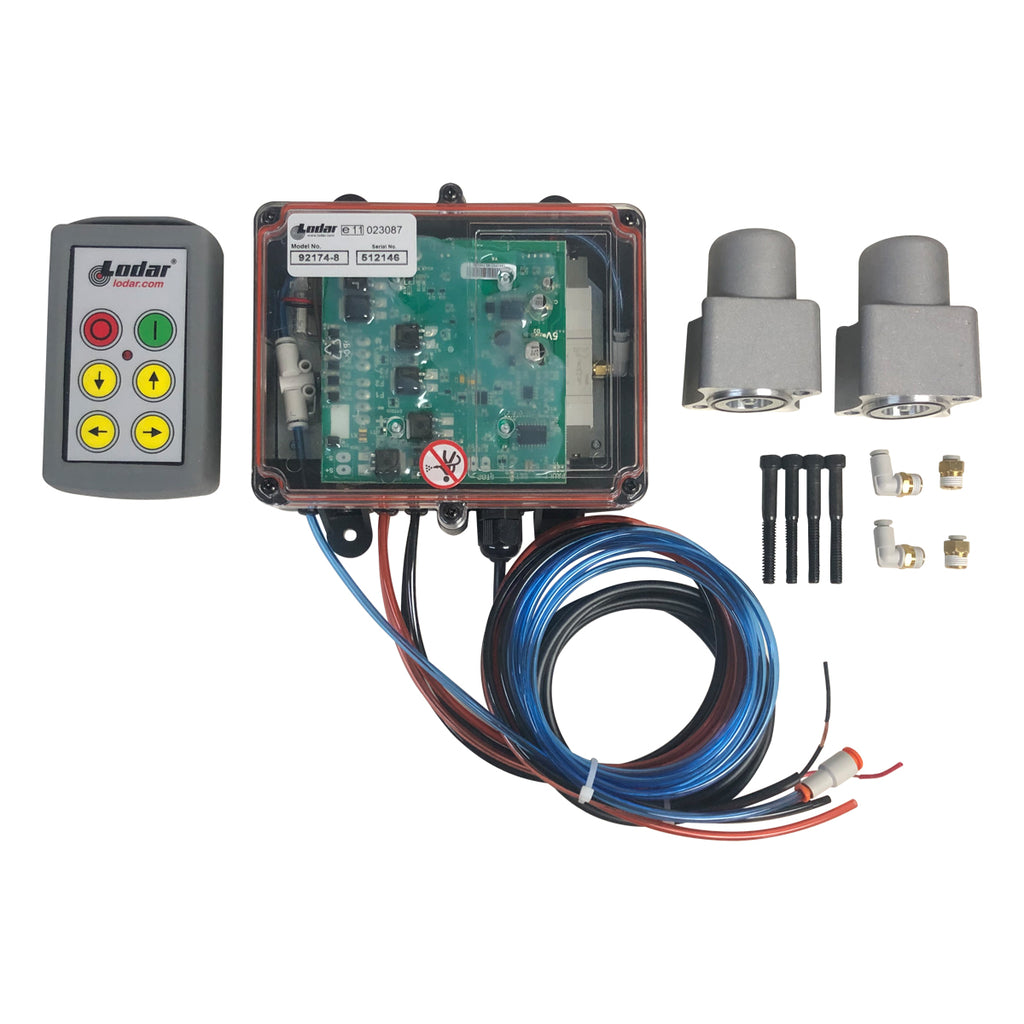

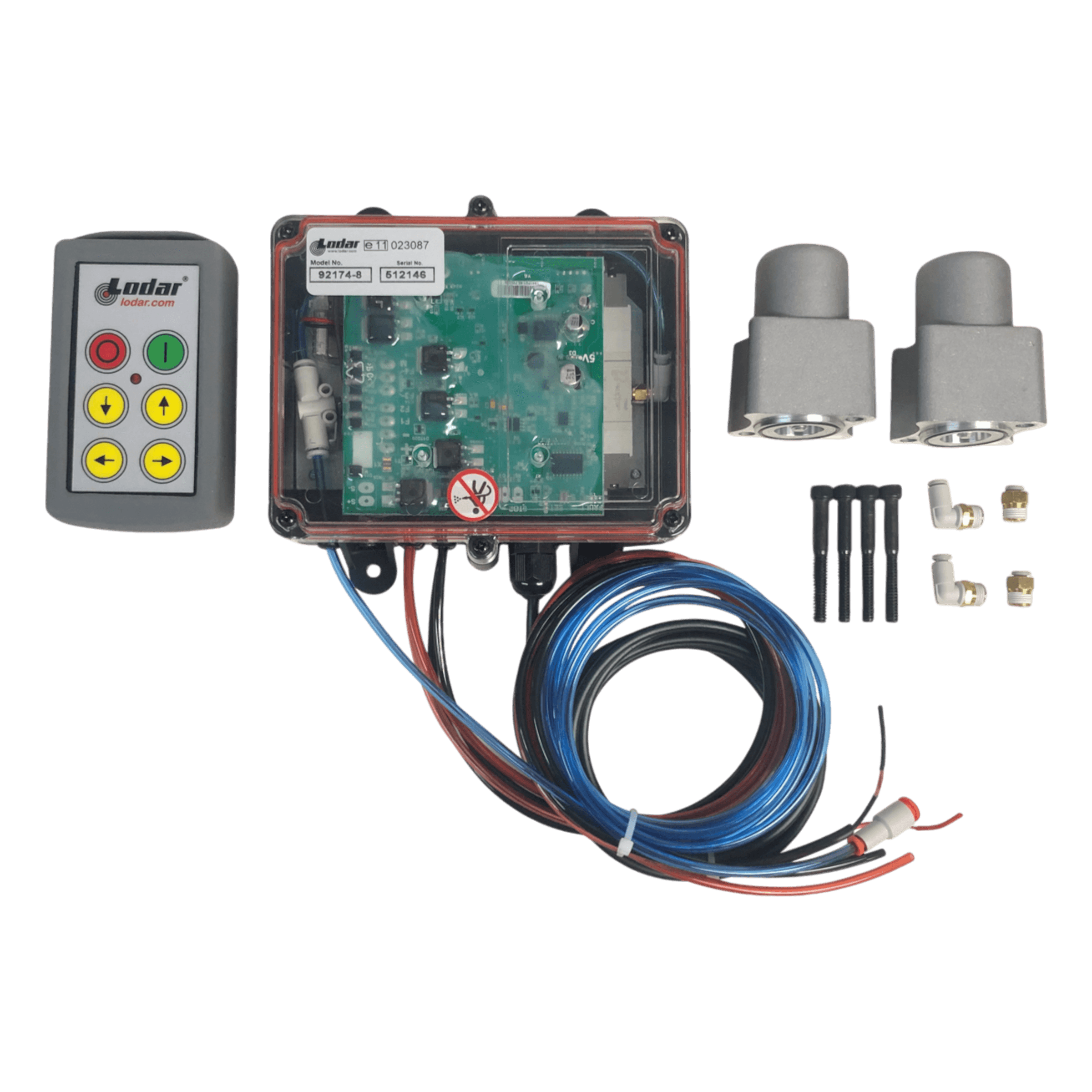

The PIERCE 4 Function Direct Mount Wireless Air System for Miller (Gresen Valves) includes a remote, receiver box, connectors, wires, and mounting hardware—perfect for custom wrecker wireless air or bolt-on actuator control.
Pairing the 92 Series Lodar Remote & Transmitter
1 of 2

4 Function Direct Mount Wireless Air System – Miller (Gresen Valves)

92154DMM-8
Sale price $1,738.00
Low stock
Amazon
American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
The PIERCE 4 Function Direct Mount Wireless Air System for Miller (Gresen Valves) includes a remote, receiver box, connectors, wires, and mounting hardware—perfect for custom wrecker wireless air or bolt-on actuator control.

4 Function Direct Mount Wireless Air System – Miller (Gresen Valves)

$1,738.00
'
Description

Streamlined wireless control for smaller setups. This 4-function air system adds bolt-on pneumatic actuators to control two Gresen valves (two directions each) from a safe distance.

  • 4 functions = 2 valves of wireless control
  • Bolt-on actuators for Gresen spools
  • Standard Series handheld transmitter (IP54) with AAA x 2 batteries
  • IP67 receiver for weather-sealed durability
  • Requires onboard air supply (90–120 PSI) and 12V DC power

Related systems: Need Husco compatibility? See the 4-Function Husco version. Want more functions? Jump to the 6-Function Gresen or 8-Function Air Actuation.

Applications: Compact hydraulic circuits on tow, utility, and ag equipment using Gresen valves.

Specification Details
ACTUATOR Gressen Direct Mount Air
FREQUENCY 433 MHz
FUNCTIONS 4
MASTER OUTPUT Yes
MAX AMPS 15
OPERATING DISTANCE 200 ft. (61 m.)
OPERATING VOLTAGE 12/24 Volts DC
RECEIVER IP RATING IP 67
SERIES 9000 Series
SPECIAL FEATURES Receiver with Air I/O + Air Actuators
TRANSMITTER Standard
TRANSMITTER BATTERIES AAA x 2
TRANSMITTER IP RATING IP 54
TYPE Full System
WIRING INCLUDED 8 ft. power / 5 ft. air input / 3½ ft. air outputs
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
