2 Function Lodar Standard Wireless Electric Actuator System | 9 Series FET

Complete wireless electric actuator control system - includes the Standard handheld transmitter and a receiver with the electric actuator drivers built into the box, coded together and ready to wire to your equipment. Operates 2 functions on the Lodar 9 Series.

The 2 Function Lodar Standard Wireless Electric Actuator System (92150A-8) gives you 2-function wireless control with a 200 ft (61 m) range. The receiver drives electric linear actuators directly from its outputs - no separate valve bank. This version has no master output. Choose a master-output model if you need an extra output that fires alongside every function - for example, an HPU that must run during a lift.

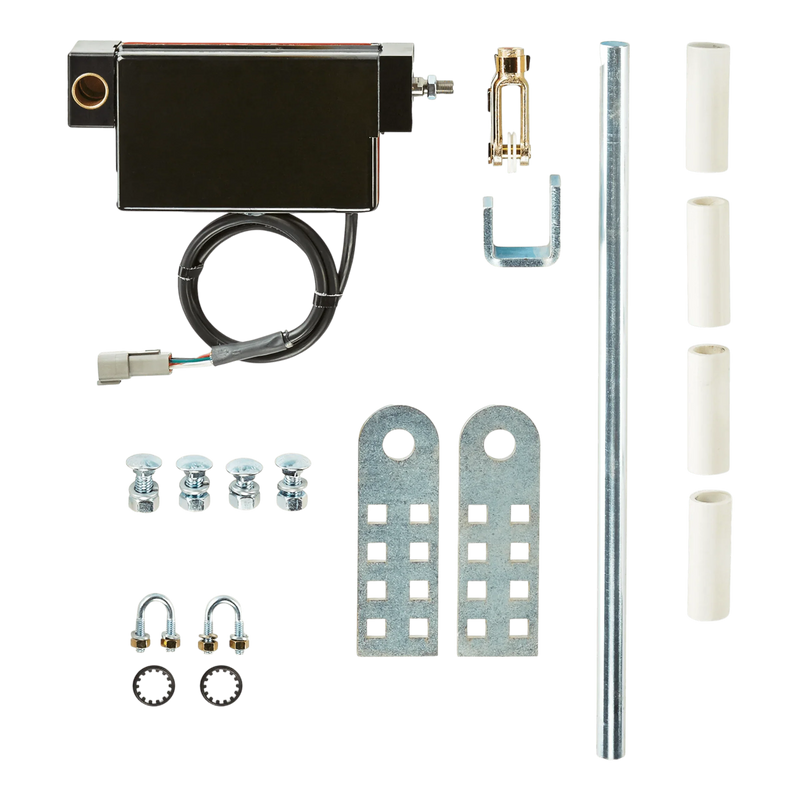

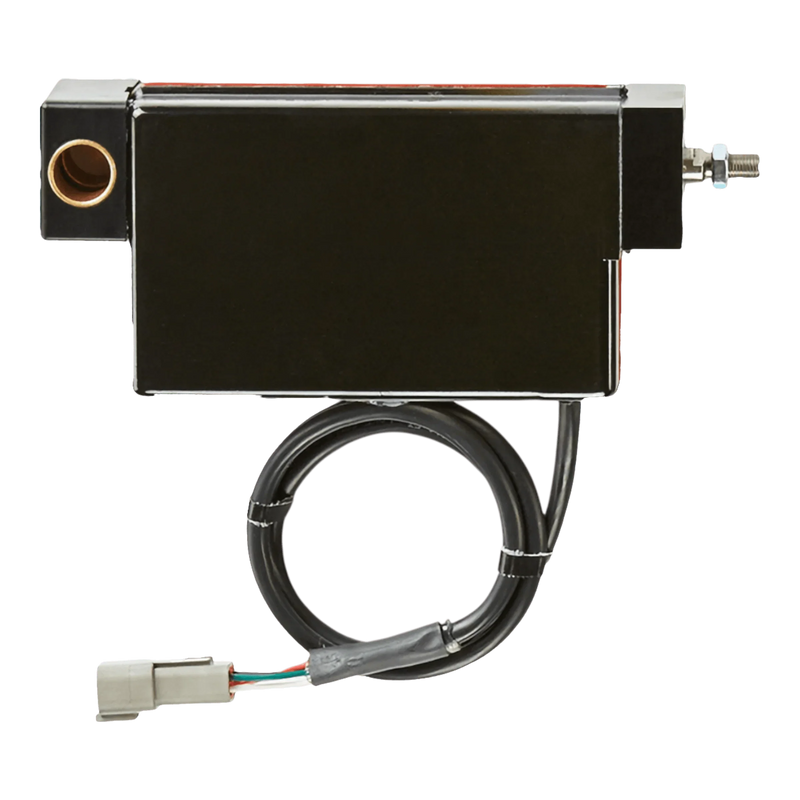

Check your valve linkage before ordering. The electric actuators bolt onto the solid control rods your valve levers connect to, so you need clearance to mount them. A system with actuators included works only with solid "bang-bang" valve rods - not with valves operated by flexible cables or cords. If your valves are cable-operated, contact us.

Electric actuators are a good fit for trucks that do not have onboard air - they drive the valve linkage electrically instead of pneumatically.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 2 here - and confirm your power supply: this system runs on 12/24V DC. Each FET output is rated to 10 A, with the system rated to 15 A total across all outputs. Run several heavy functions at once and the combined draw can reach that 15 A ceiling, where the overload protection trips to protect the board. Solid-state switching means there are no mechanical relay contacts to wear or arc. It is the current standard across the Lodar line — choose it for functions that draw more than the 5 A per output a mechanical relay handles. The transmitter and receiver ship coded to each other, so the system works out of the box.

• 2 functions of wireless control

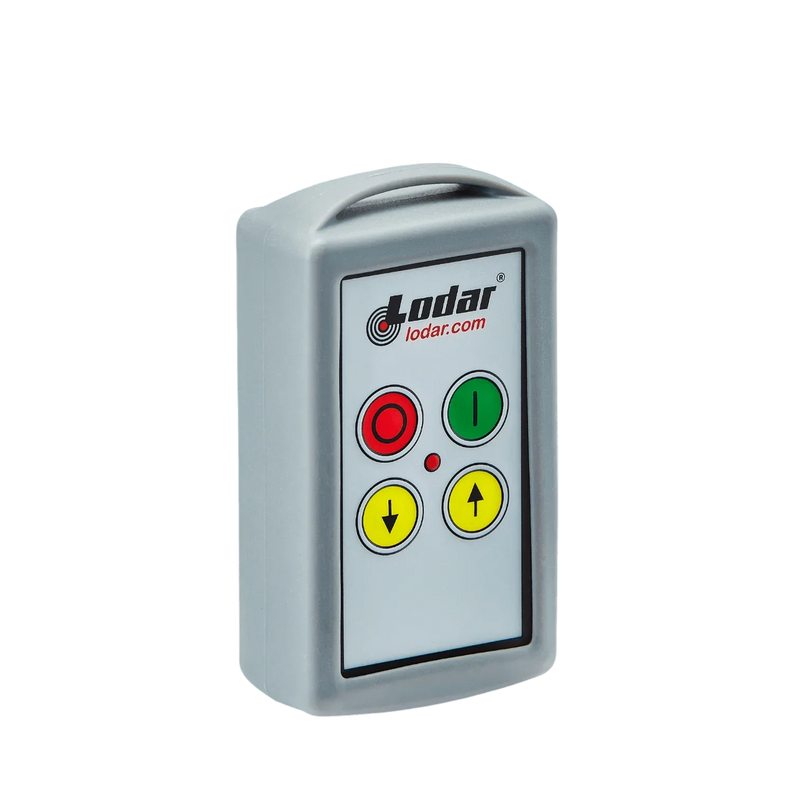

• Standard transmitter - IP 54 rated
• Electric actuator receiver - drives linear actuators directly, IP 67 rated
• 12/24V DC operating voltage
• 200 ft (61 m) operating range
• No master output
• Lodar SKU 92150A-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 2-function Lodar system? Compare the 2 Function Lodar Stainless IP Wireless System or 2 Function Lodar Standard Wireless System. Replacement handsets and receivers are sold separately.
