Description

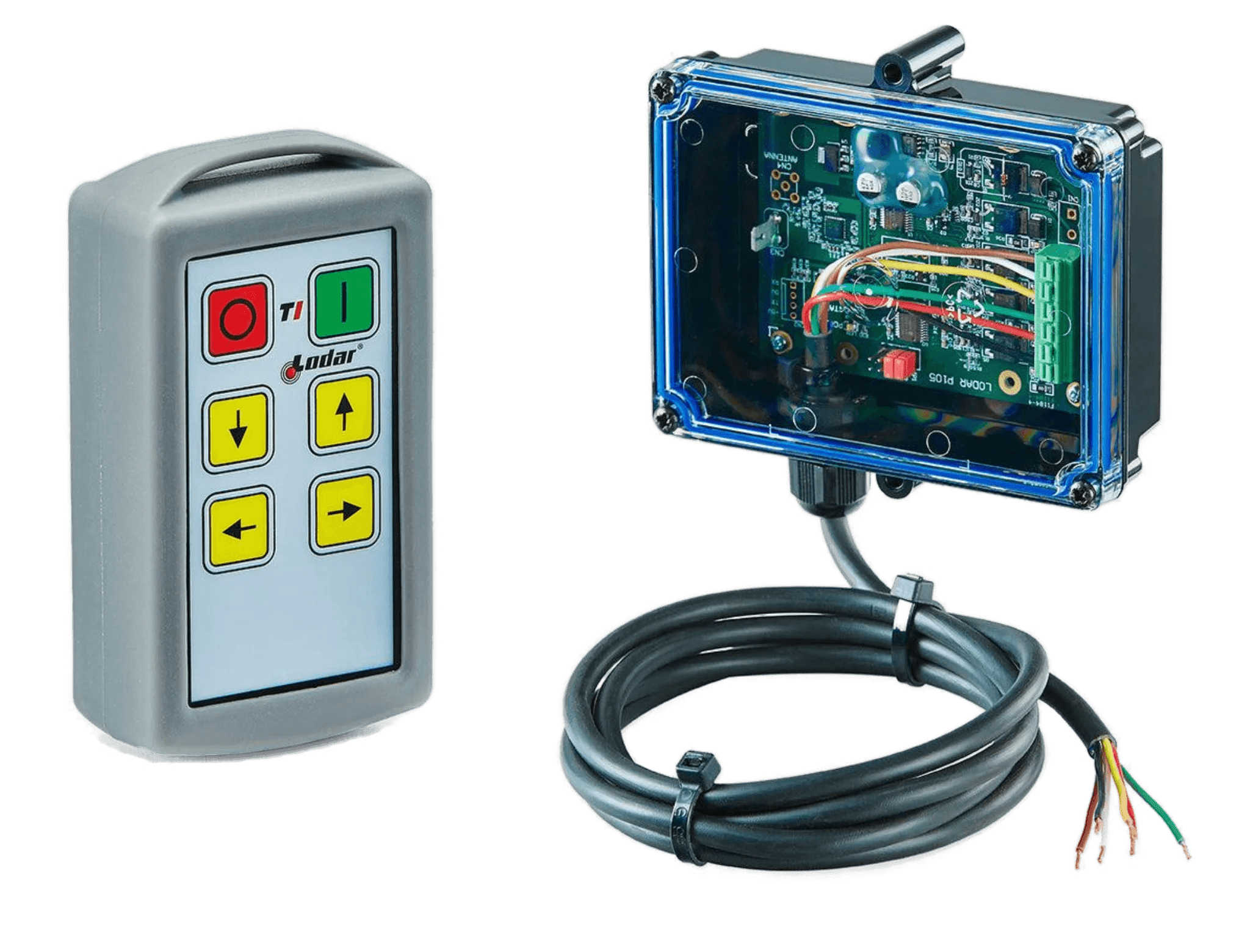

The Lodar 11 Series 4 Function System provides straightforward four-output control. It combines a Standard transmitter (IP54) with an IP67-sealed receiver to switch solenoids, relays, or electric-over-hydraulic valves.
- 4 functions with 3A FET outputs
- Standard handheld transmitter (IP54)
- Sealed IP67 receiver housing
- Outputs default to momentary
Applications: Four-function wireless control system for Lodar 11 Series setups.

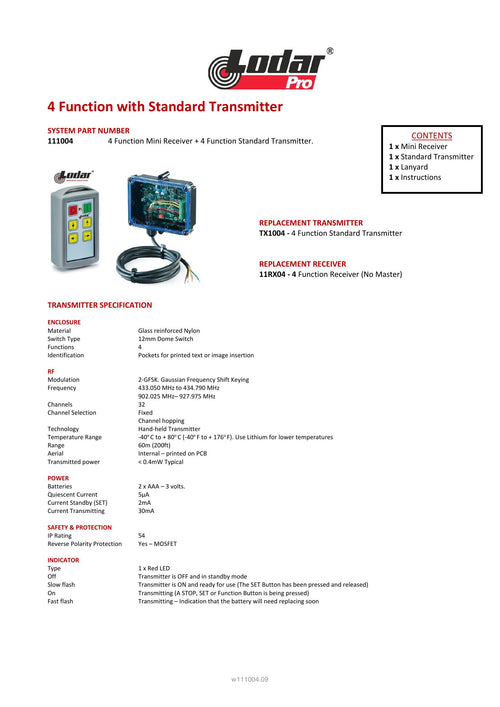

Specifications
Specification | Details |
---|---|
FUNCTIONS | 4 |
MASTER OUTPUT | Yes |
MAX AMPS | 3 |
OPERATING DISTANCE | 150 ft. (45 m.) |
OPERATING TEMPERATURE RANGE | 13ºF to 104ºF (-10ºC to 40ºC) |
OPERATING VOLTAGE | 12/24 Volts DC |
RECEIVER IP RATING | IP 67 |
SERIES | 11 Series |
SWITCH TYPE | Tactile Dome on PCB Keypad (Pockets for Text or Image Insertion) |
TRANSMITTER | Standard |
TRANSMITTER BATTERIES | AAA x 2 |
TRANSMITTER IP RATING | IP 54 |
TYPE | Full System |
WIRING INCLUDED | 9 ft. (3m) wiring loom through gland |
