Description

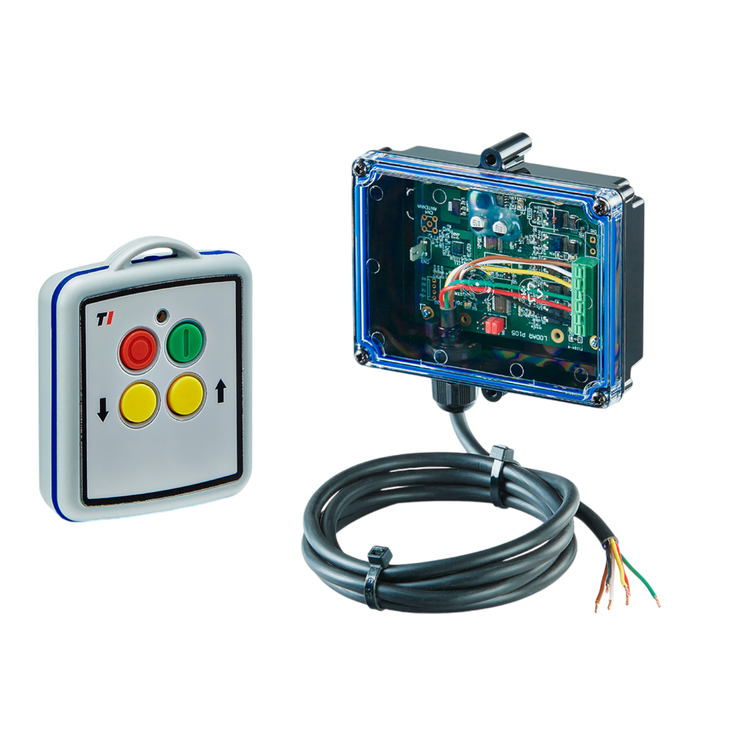

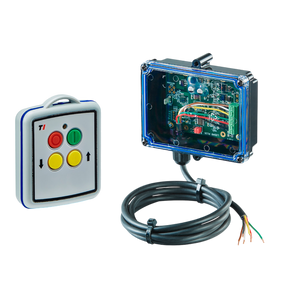

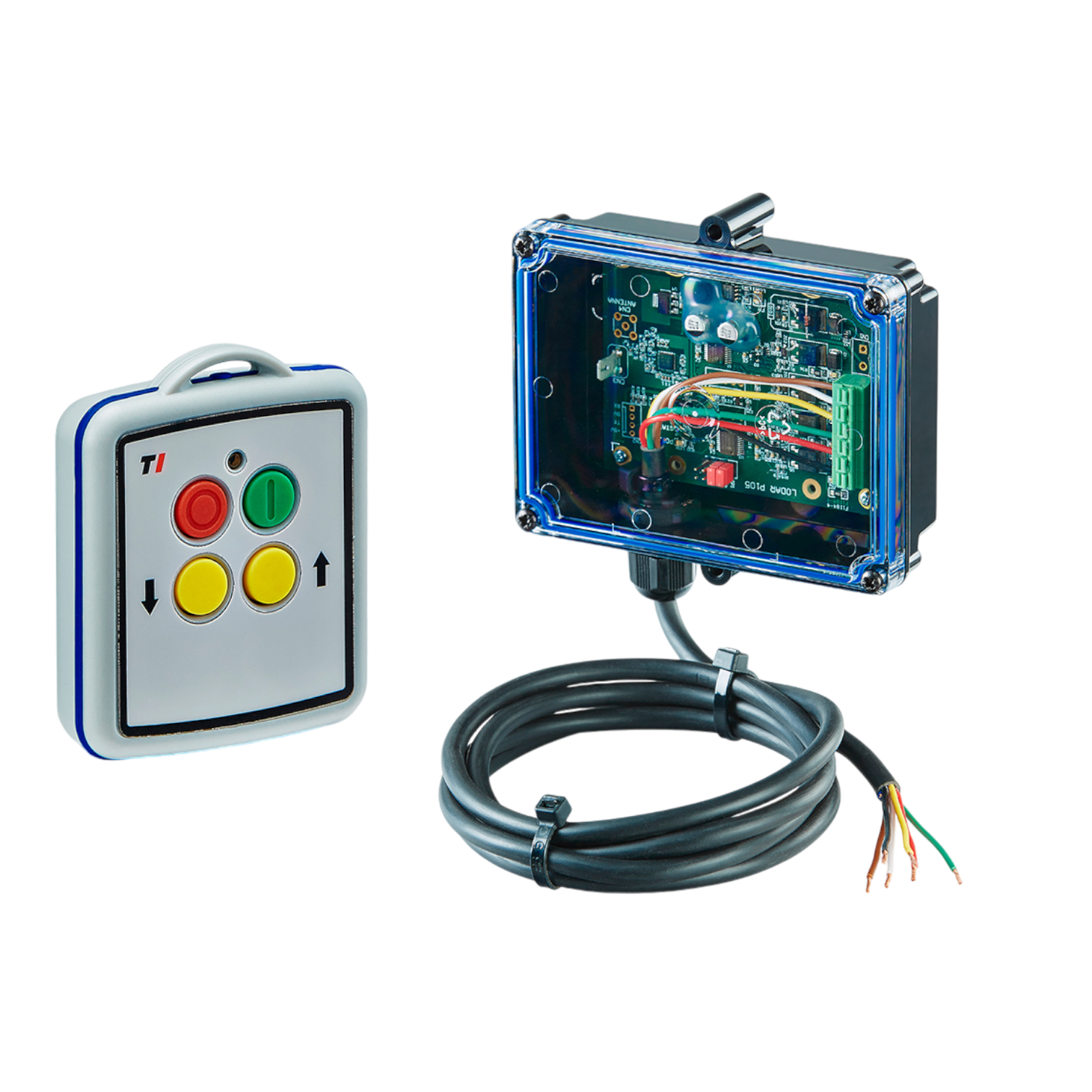

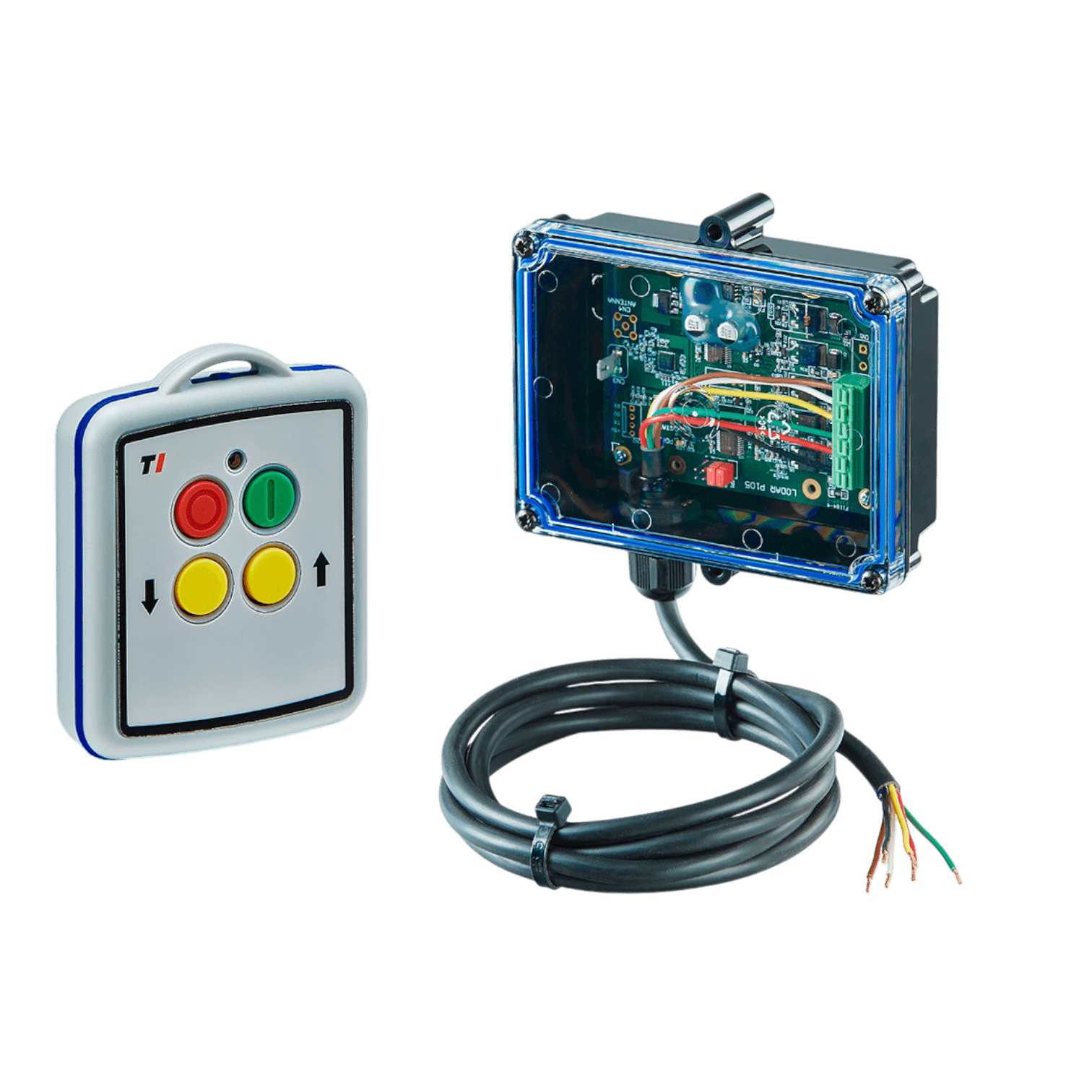

Add wireless control with the Lodar 11 Series 2 Function System. A Standard handheld transmitter (IP54) pairs with an IP67-sealed receiver for reliable operation of solenoids, relays, or electric-over-hydraulic valves.
- 2 functions with 3A FET outputs
- Includes Standard transmitter (IP54)
- Receiver sealed to IP67
- Momentary switching behavior
Applications: Compact 11 Series wireless control system for small hydraulic or electrical circuits.
Specifications
Specification | Details |
---|---|
FUNCTIONS | 2 |
MASTER OUTPUT | Yes |
MAX AMPS | 3 |
OPERATING DISTANCE | 150 ft. (45 m.) |
OPERATING TEMPERATURE RANGE | 13ºF to 104ºF (-10ºC to 40ºC) |
OPERATING VOLTAGE | 12/24 Volts DC |
RECEIVER IP RATING | IP 67 |
SERIES | 11 Series |
SWITCH TYPE | Tactile Dome on PCB Keypad (Pockets for Text or Image Insertion) |
TRANSMITTER | Standard |
TRANSMITTER BATTERIES | AAA x 2 |
TRANSMITTER IP RATING | IP 54 |
TYPE | Full System |
WIRING INCLUDED | 9 ft. (3m) wiring loom through gland |
Videos
Warranty
Replacement Parts

2 Function Lodar Replacement Standard Transmitter | 11 Series
Get your system back online with the Lodar 11 Series 2 Function Standard Transmitter. This IP54-rated OEM remote provides two-output wireless control with simple pairing to your existing receiver. 2 function Standard replacement transmitter ...

2 Function 12/24V Lodar Replacement Receiver | 11 Series
Compact and rugged, the Lodar 11 Series 2 Function Receiver delivers reliable wireless switching of solenoids, relays, or electric-over-hydraulic valves. With 3A FET outputs and IP67 sealing, it’s built for long-term performance. 2 functions with...
