9215XA - Installation Instructions - Electric Actuator

Search...

Searching...

No results found

Popular Searches

2 Function Remote Industrial Winch Wiring Diagram Lodar

View all results

All documents · Spec Sheet

9215XA - Installation Instructions - Electric Actuator

Download Spec Sheet PDF (opens in a new window)

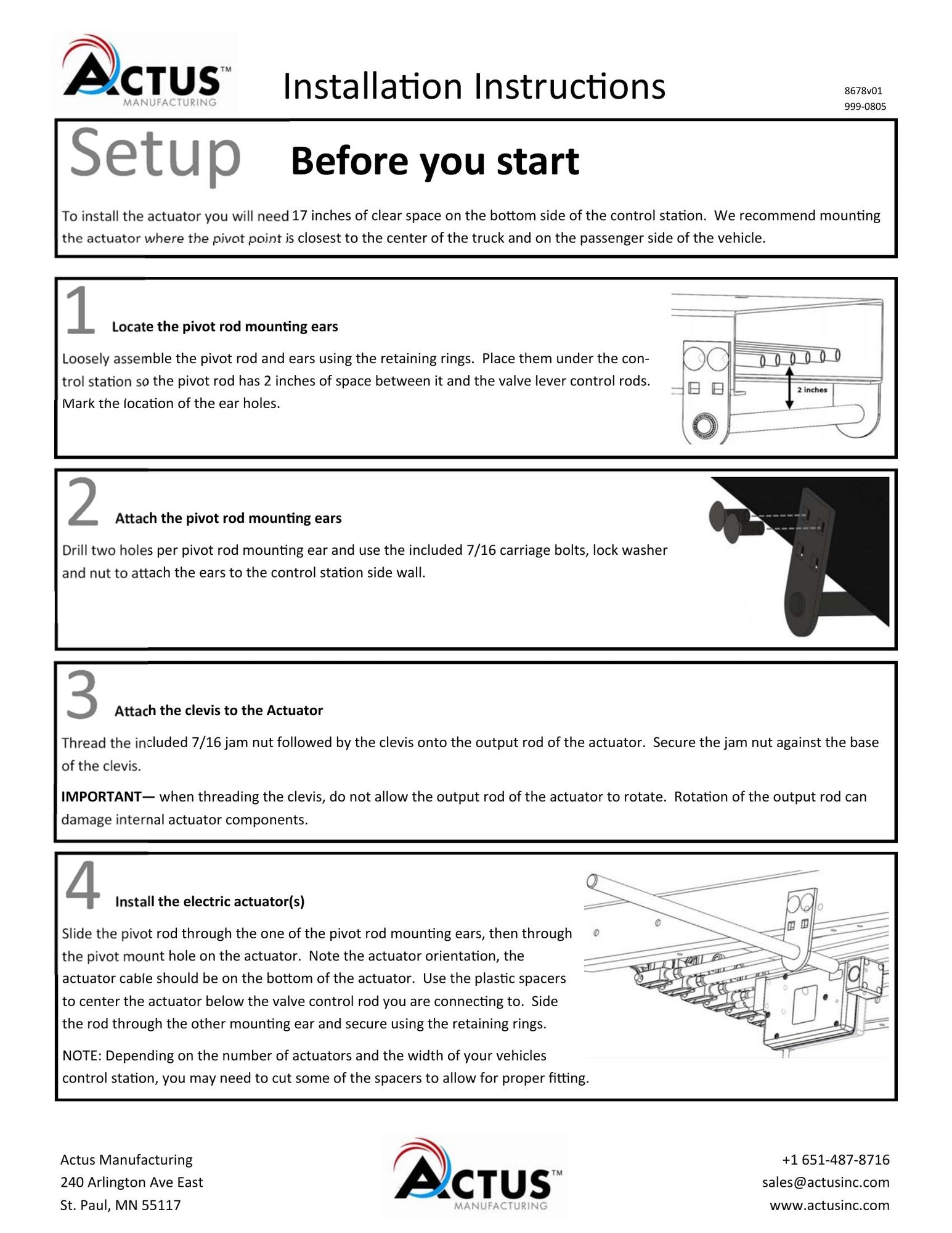

Page 1

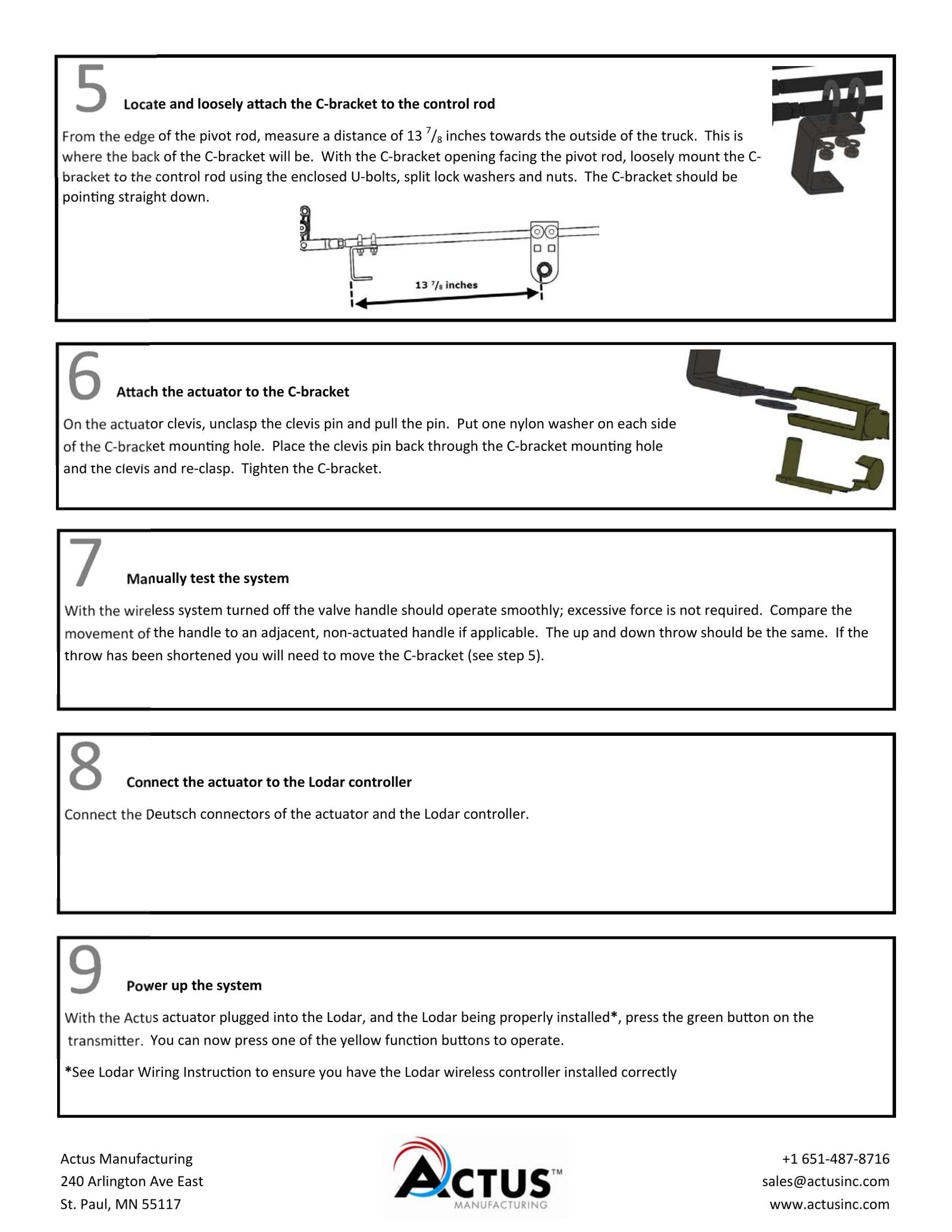

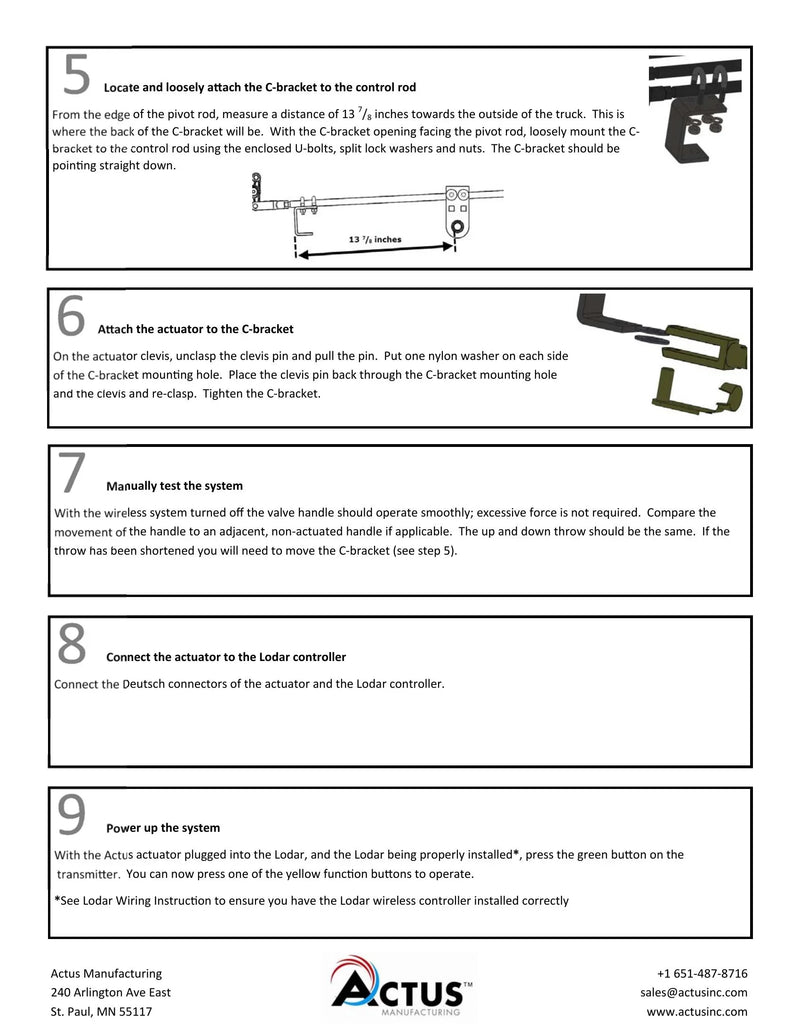

Page 2

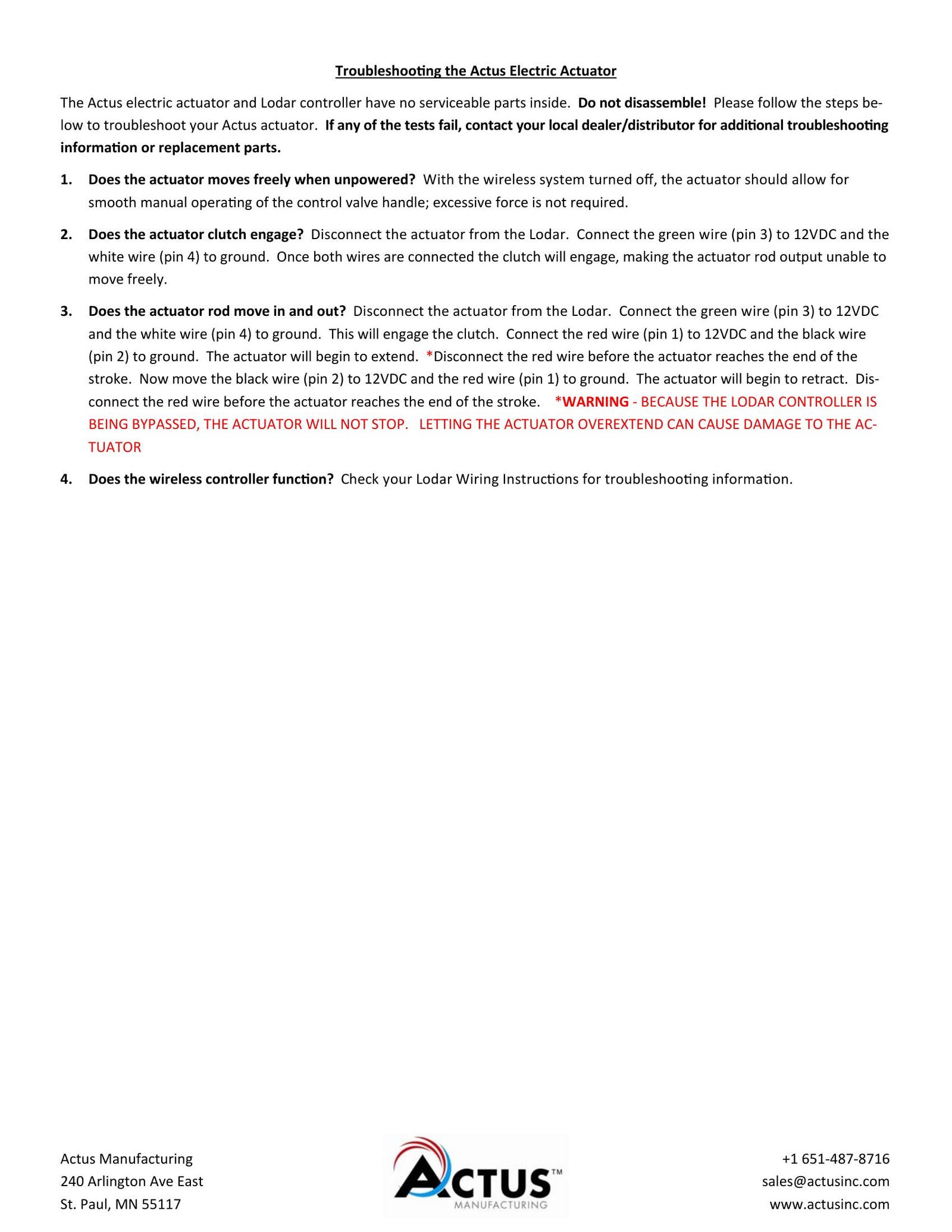

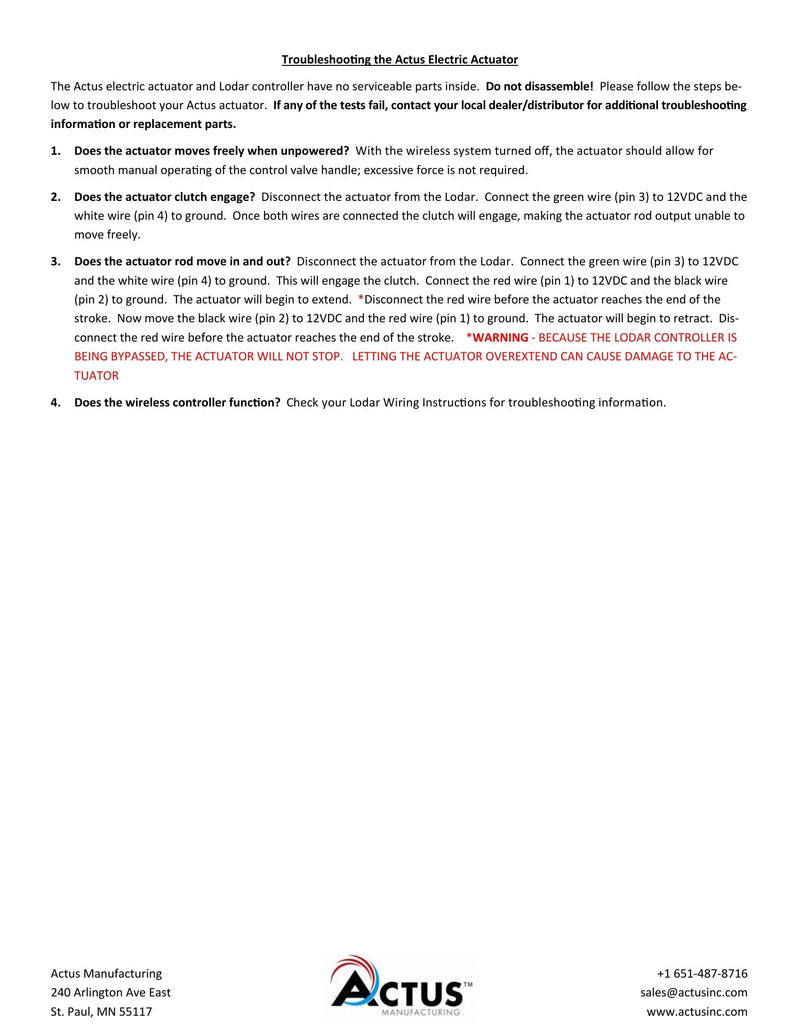

Page 3

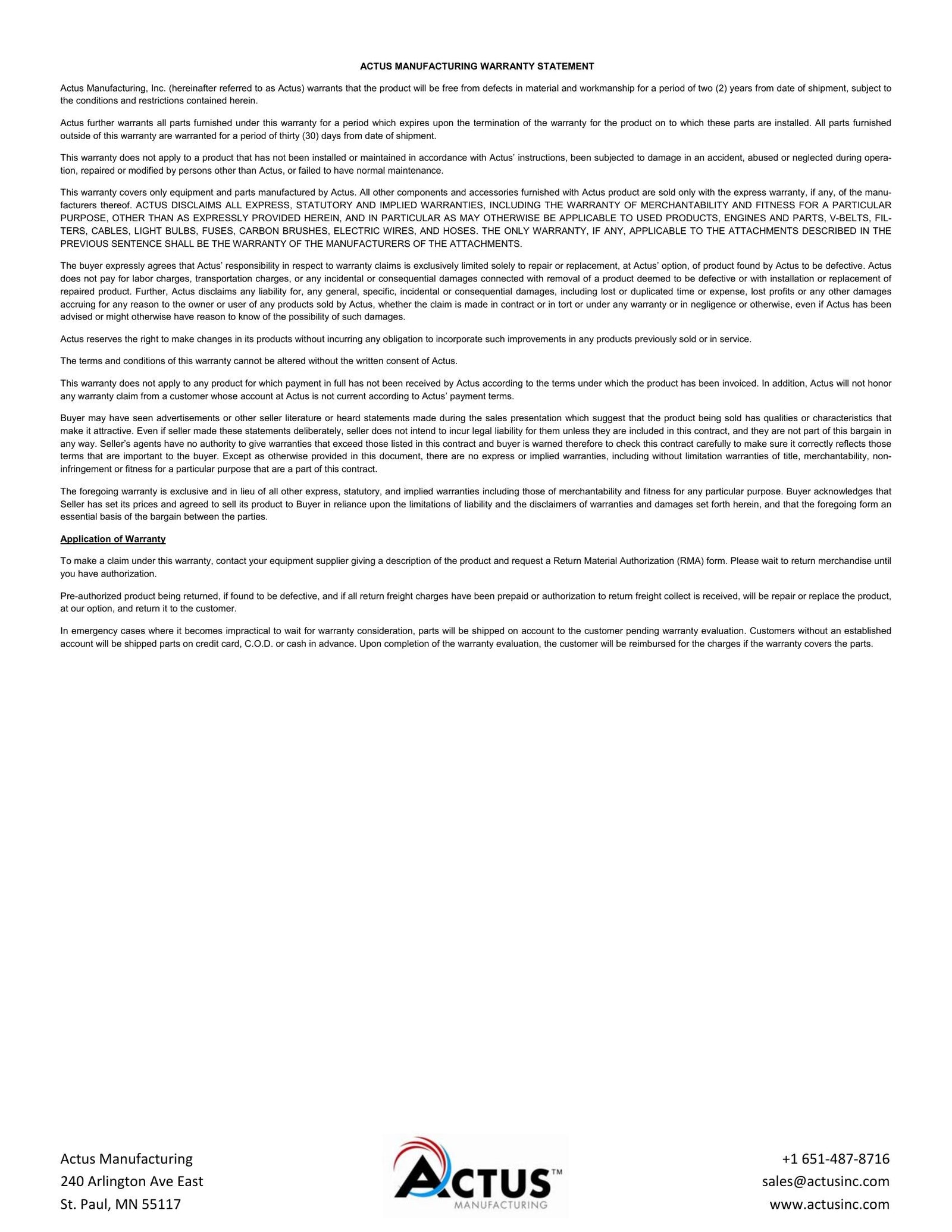

Page 4
