6 Function Lodar Hard-Wired Remote | 9000 Series
Compatible Products
*Check compatibility before purchasing.
- 92206K-8 - 6 Function IP Wireless Control System | 92 Series | FET Keypad Receiver
- 92206-8 - 6 Function IP Wireless Control System | 92 Series | FET Receiver
- 9276RX-8 - 6 Function Lodar Replacement FET Air Receiver | 92 Series
- 9206RXK-8 - 6 Function Lodar Replacement FET Keypad Receiver | 92 Series
- 9206RX-8 - 6 Function Lodar Replacement FET Receiver | 92 Series
- 92S06-8 - 6 Function Stainless Steel IP Wireless Control System | 92 Series | FET Receiver
- 92156-8 - 6 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver
- 92176-8 - 6 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators
- 92106K-8 - 6 Function Standard Wireless Control System | 92 Series | FET Keypad Receiver
- 92106-8 - 6 Function Standard Wireless Control System | 92 Series | FET Receiver
- 92156DMM-8 - 6 Function Direct Mount Wireless Air System – Miller (Gresen Valves)
- 92156DMJ-8 - 6 Function Direct Mount Wireless Air System – Jerr-Dan (Husco Valves)
Alternatives: 6 Function Lodar Hard-Wired Remote | 9000 Series

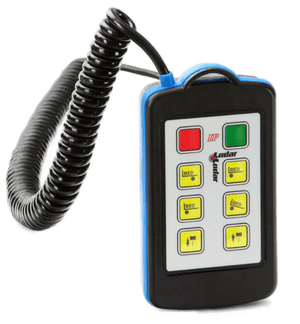

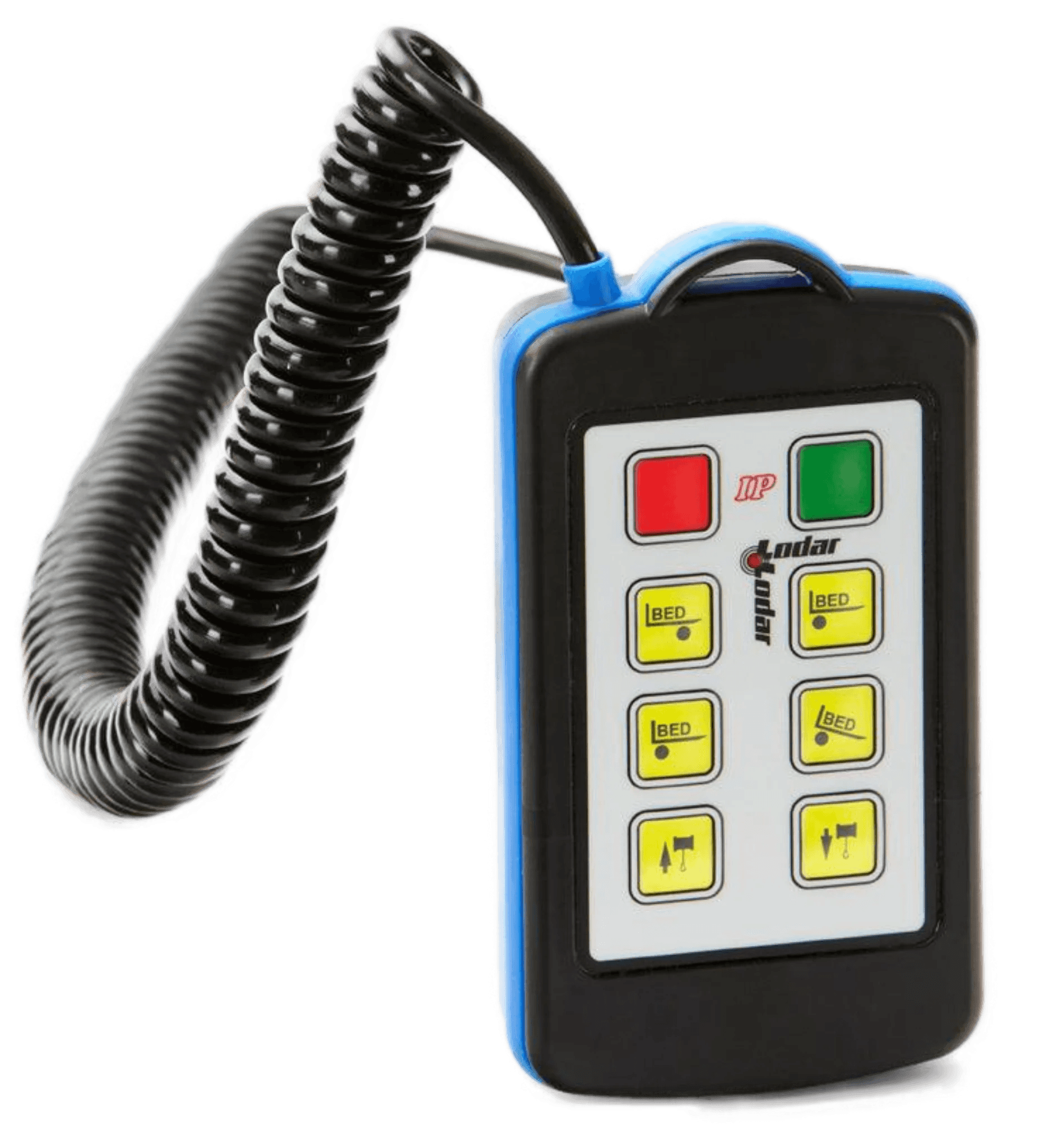

6 Function Lodar Hard-Wired Remote | 9000 Series
Description
Expand your control options with a 6 Function Lodar Hard-Wired Remote. It connects directly to your Lodar receiver, delivering dependable operation without batteries or wireless signals. Equipped with a 25' curly cord and a waterproof Bulgin connector, it’s built for reliability.
- 6 hard-wired functions
- Direct connection to Lodar receiver
- 25' curly cord for flexible reach
- Waterproof Bulgin connector for rugged connection
Applications: Backup or primary control option for 6-function Lodar systems.
Specifications
Specification | Details |
---|---|
FUNCTIONS | 6 |
OPERATING DISTANCE | Hardwired 20 ft. (4 ft. Retracted) |
OPERATING VOLTAGE | 12/24 Volts DC |
SERIES | 9000 Series |
TRANSMITTER | Industrial Pro |
TRANSMITTER IP RATING | IP 67 |
TYPE | Transmitter Only |
