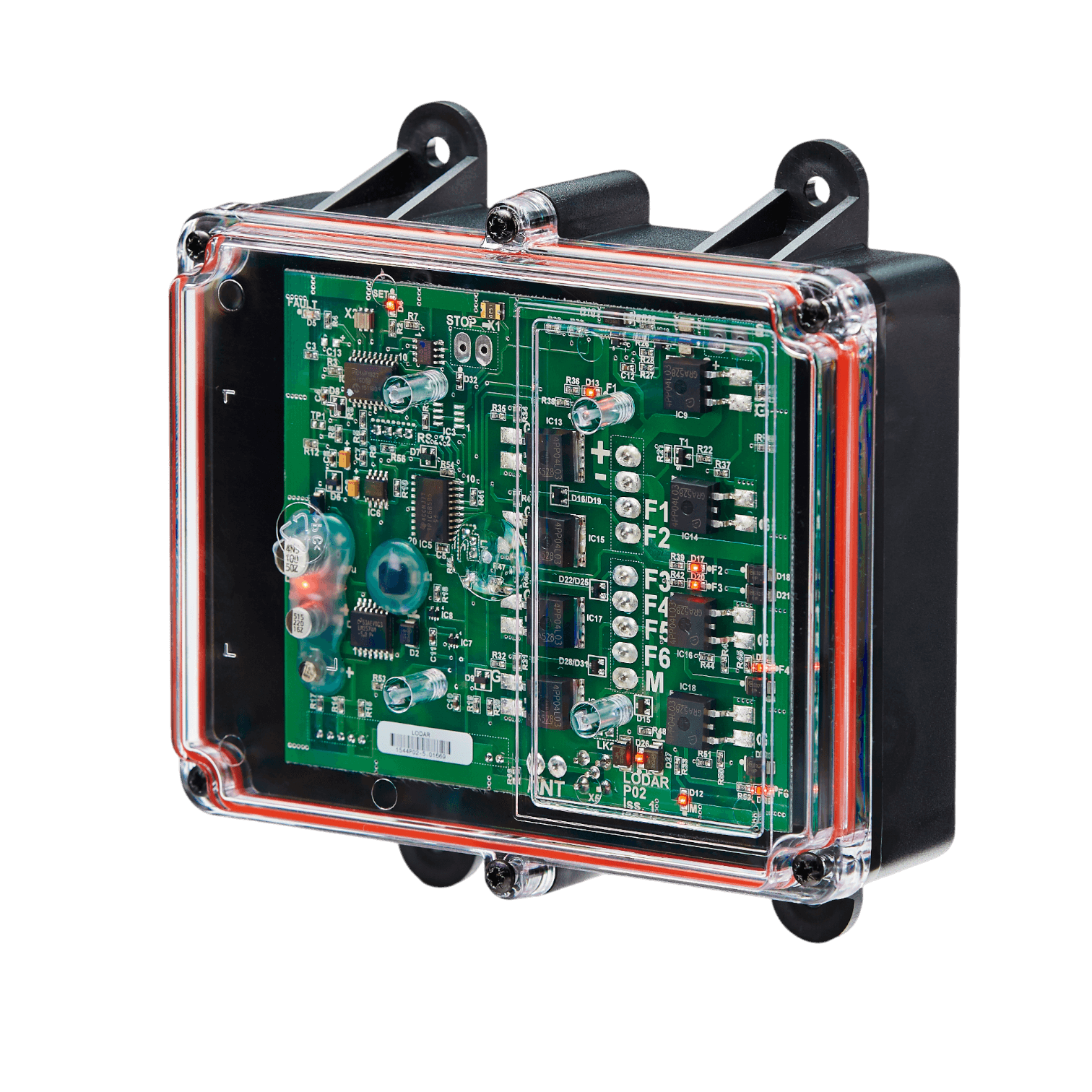

The Lodar LTD 6 Function Lodar Replacement FET Receiver from the 92 Series is housed in a transparent electronic circuit enclosure revealing a green circuit board and components, capable of managing up to 10 amps, all set against a black background.

6 Function Lodar Replacement FET Receiver | 92 Series

Name: 6 Function Lodar Replacement FET Receiver | 92 Series
Brand: Lodar LTD
SKU: 9206RX-8
Price: 829.0 USD
Availability: InStock

9206RX-8

$829.00

Quantity

Low stock

Compatible Products

*Check compatibility before purchasing.

92206-8 - 6 Function IP Wireless Control System | 92 Series | FET Receiver

92S06-8 - 6 Function Stainless Steel IP Wireless Control System | 92 Series | FET Receiver

92106-8 - 6 Function Standard Wireless Control System | 92 Series | FET Receiver

Check Your Part Number Before Ordering

Check if your part number starts with an "LS" or a "PS". If so, this indicates specific firmware and other customizations that will not be on this replacement unit. You will want to contact the manufacturer and order the specific replacement part for your system.

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

6 Function Lodar Replacement FET Receiver | 92 Series

'

Description

Upgrading to the 6 Function Lodar Replacement FET Receiver means you'll have the ability to effortlessly handle up to 10 amps per function, for a total of 60 amps of current. Power through even the toughest tasks with this high-efficiency receiver.

Included

1 x [9206RX-8] - 6 Function Lodar FET Receiver | 92 Series

1 x Instructions

Specifications

Specification	Details
FUNCTIONS	6
MASTER OUTPUT	Yes
MAX AMPS	10
OPERATING DISTANCE	200 ft. (61 m.)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 65
SERIES	9000 Series
TYPE	Receiver Only

Resources

9206RX - 6 Function Receiver

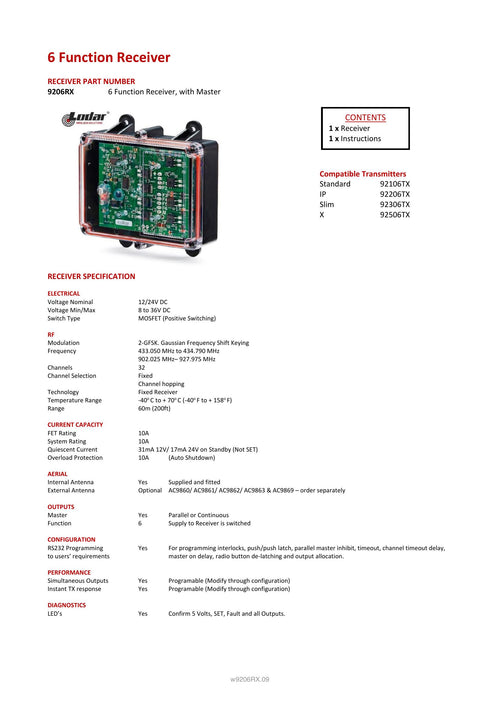

Spec Sheet

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
