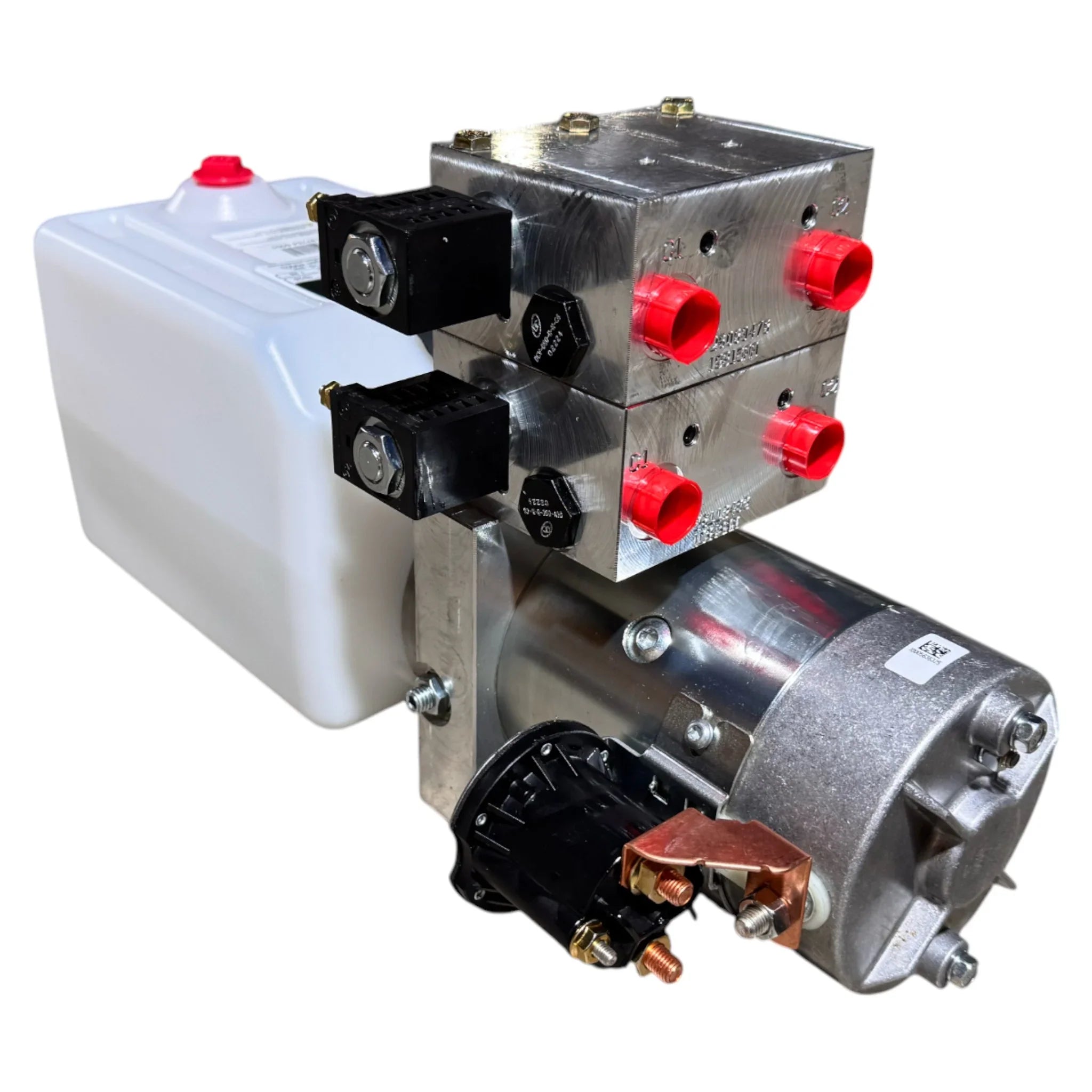

Bucher Hydraulics, Inc. Bucher 4 Way Pump hydraulic power unit with white reservoir and red-capped valve connectors—perfect as a wrecker hydraulic pump.

The Bucher Hydraulics, Inc. Bucher 4 Way Pump features a white reservoir, red-capped ports, and black and silver components, making it ideal as a hydraulic pump for wreckers or dual power circuit applications.

A Bucher Hydraulics, Inc. 4 Way Pump hydraulic power unit with a white fluid reservoir and attached metal components, designed for efficient control.

Top view of a Bucher 4 Way Pump by Bucher Hydraulics, Inc., featuring red ports and a metal housing—ideal as an industrial hydraulic pump for wreckers and demanding applications.

The Bucher 4 Way Pump by Bucher Hydraulics, Inc. is a hydraulic pump for wreckers, featuring a metal pump and white plastic reservoir, shown from the side.

Bucher Hydraulics, Inc. 4 Way Pump hydraulic power unit features a white fluid reservoir, metal components, and labeled control panel—ideal for use as a hydraulic pump for wreckers.

Close-up of a Bucher Hydraulics, Inc. 4 Way Pump hydraulic power unit with a white plastic fluid reservoir and metal components, designed for dual power circuit pump applications in wreckers.

A Bucher Hydraulics, Inc. 4 Way Pump hydraulic power unit with a white plastic reservoir and metal control components delivers efficient performance.

Rectangular white plastic tank bolted to a metal device with black connectors, featuring the Bucher Hydraulics, Inc. Bucher 4 Way Pump hydraulic pump for wreckers.

1 10

Bucher 4 Way Pump

Name: Bucher 4 Way Pump
Brand: Bucher Hydraulics
SKU: PM-3530
Price: 1028.0 USD
Availability: InStock
Rating: 4.75 (4 reviews)

PM-3530

$1,028.00

Save 20% by bundling together!

Controls

PIERCE Universal Momentary Pendant Control - 4 ...
CP078MK $ 86.00
$68.80
4 Function Wireless Remote Control System
PS004 $ 412.00
$329.60

Quantity

In stock

Bucher 4 Way Pump

'

Description

The Bucher 4 Way Pump boasts a unique design, featuring two double acting sections and a dual power circuit for precise control. It also includes a 6.7" x 6.7" x 11" poly reservoir with 265 cu. in. of usable space, 9/16th's SAE o-ring ports, and an adjustable relief valve with a 2,500 psi threshold. This horizontally mounted pump delivers an impressive 1.25 gpm at 1,750 psi, making it perfect for wreckers that require 4 functions - up/down and in/out. With manufacturing done entirely in the USA and a rigorous testing process, Bucher ensures top quality and reliability. Additionally, their ISO9001 certification guarantees tight tolerances for maximum efficiency. Their customer service is also highly praised, with less than 1% of units being returned for warranty claims.

Included

1 x [PM-3530] - Bucher 4 Way Pump

Specifications

Specification	Details
HOSE CONNECTIONS	#6 SAE
MAX OIL FLOW (GPM)	1.5
OPERATING TEMPERATURE RANGE	-20ºF to 130ºF (-30ºC to 55ºC)
OPERATING VOLTAGE	12 Volts DC
OPERATIONAL PRESSURE (PSI)	2500
PUMP DIRECTIONS	4-Way (Power All)
RECOMMENDED FLUID	ATF (Automatic Transmission Fluid)
RESERVOIR CAPACITY	6 Quarts
RESERVOIR MATERIAL	High Density Polyethylene

Resources

PM-3530 Spec Sheet

Spec Sheet

PM-3530 - 4-Way Bucher Pump Wiring Diagram

Wiring Diagram

Pump Troubleshooting Guide

Guide

Replacement Parts

Hyd Pumps | Coil | Bucher | 12 Volt

This product is a Bucher 10V coil, a replacement coil for Bucher pumps. The coil is located on the valves.

SKU: 1019660 $68.00

Bucher Pump 12 Volt Solenoid Style 2

This product is a replacement 12V solenoid with black plastic cover for use on newer Bucher pumps.

SKU: P050T $42.00

Bucher Pump Valve

Replacement Bucher pump valve for the Bucher pump PM319.

SKU: P07193 $176.00
