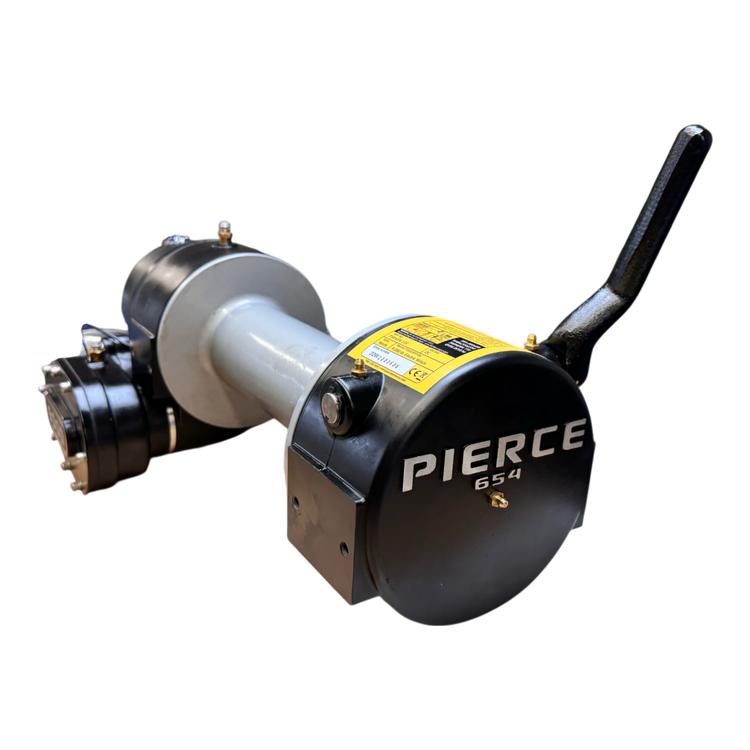

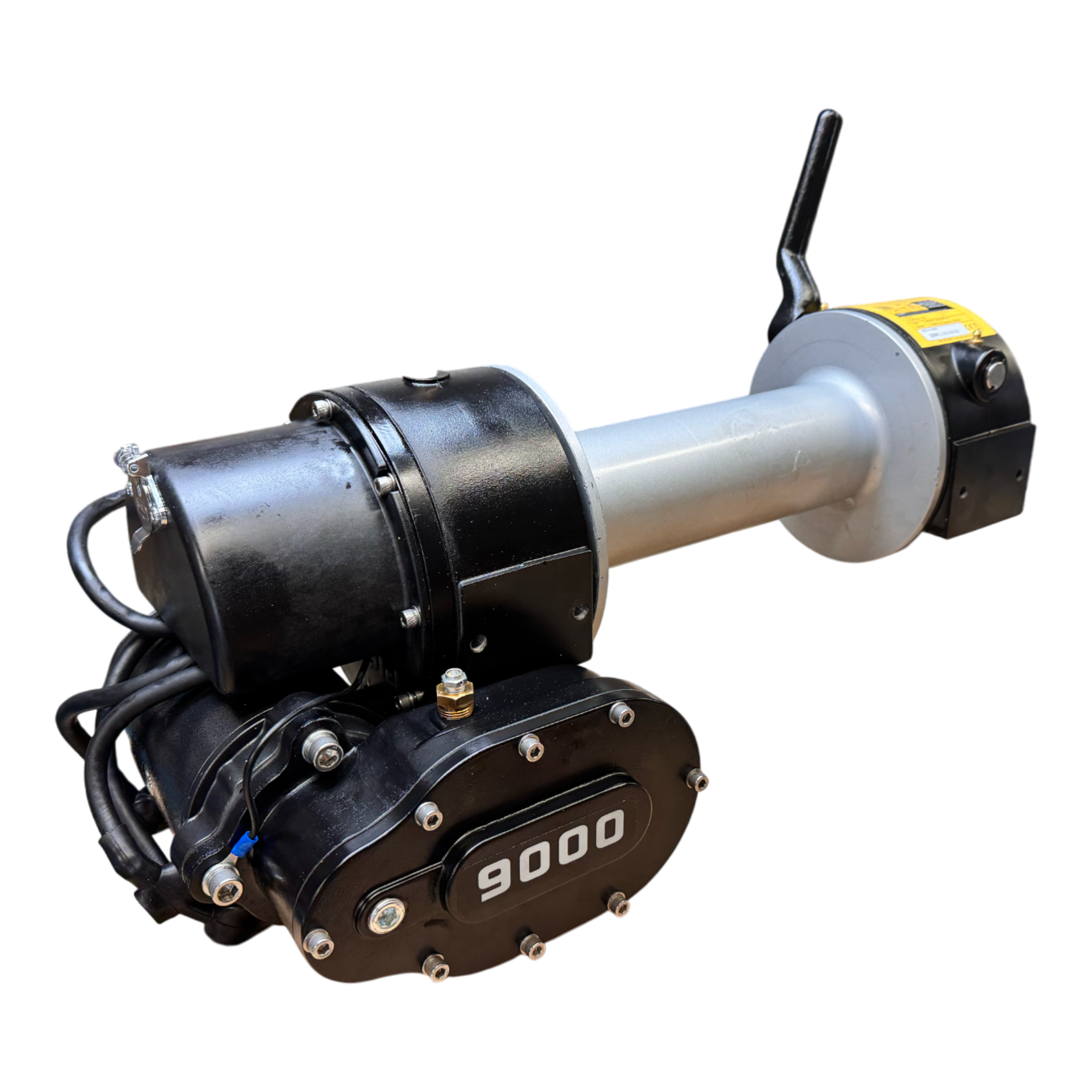

The PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch is shown with a lever against a black background.

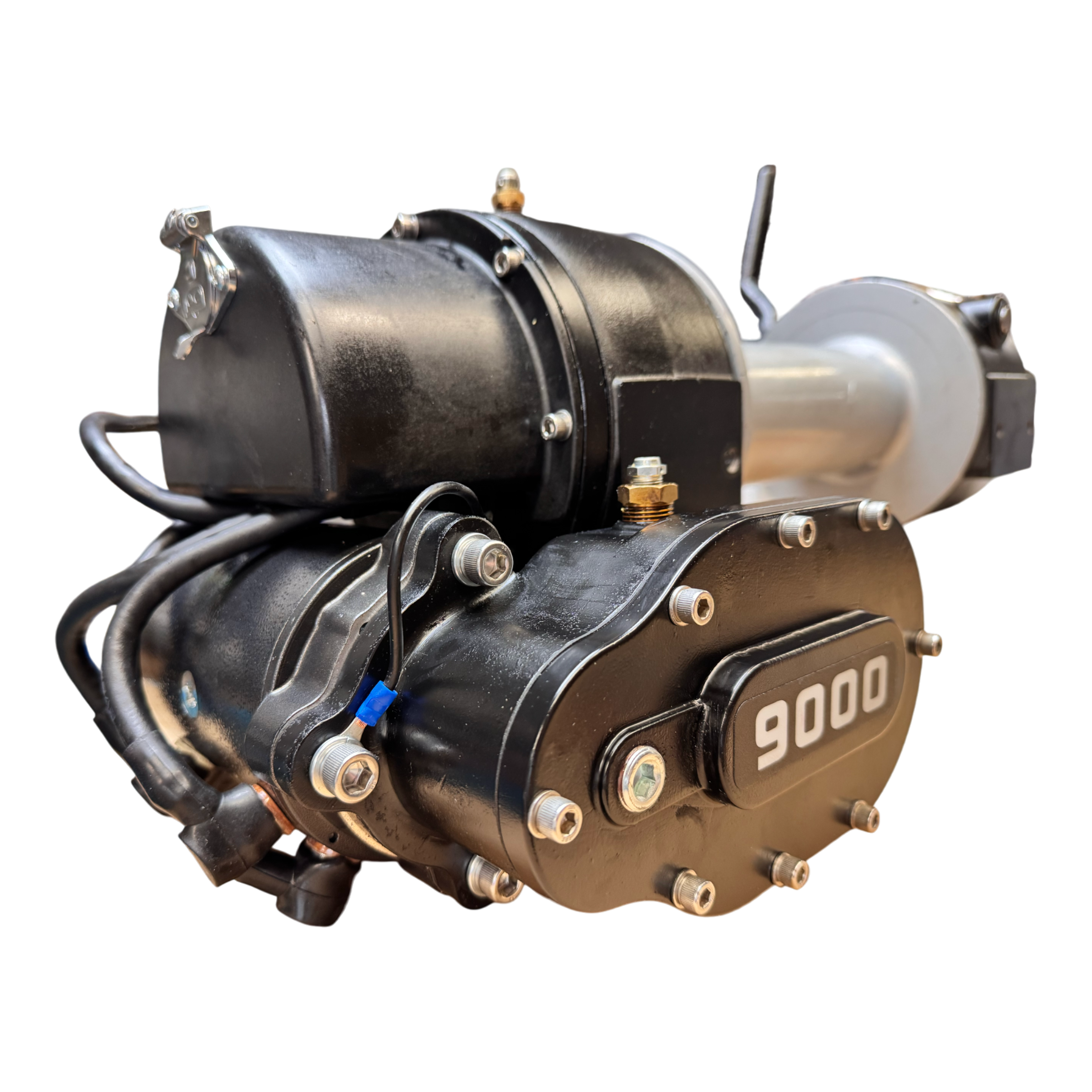

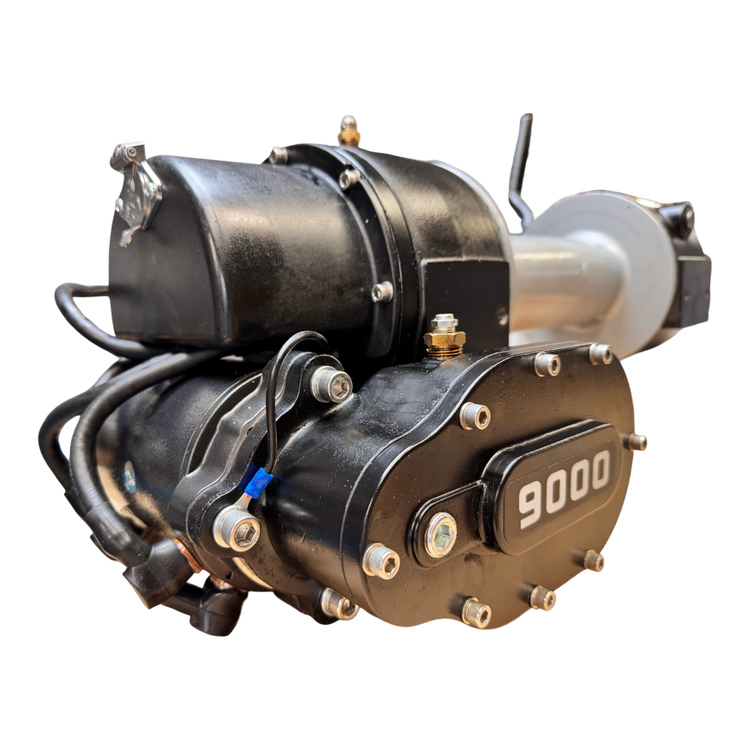

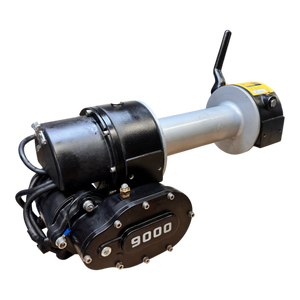

PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch features a cylindrical drum, control lever, and 9000 marking, delivering powerful 9,000 lb pulling capacity for industrial use.

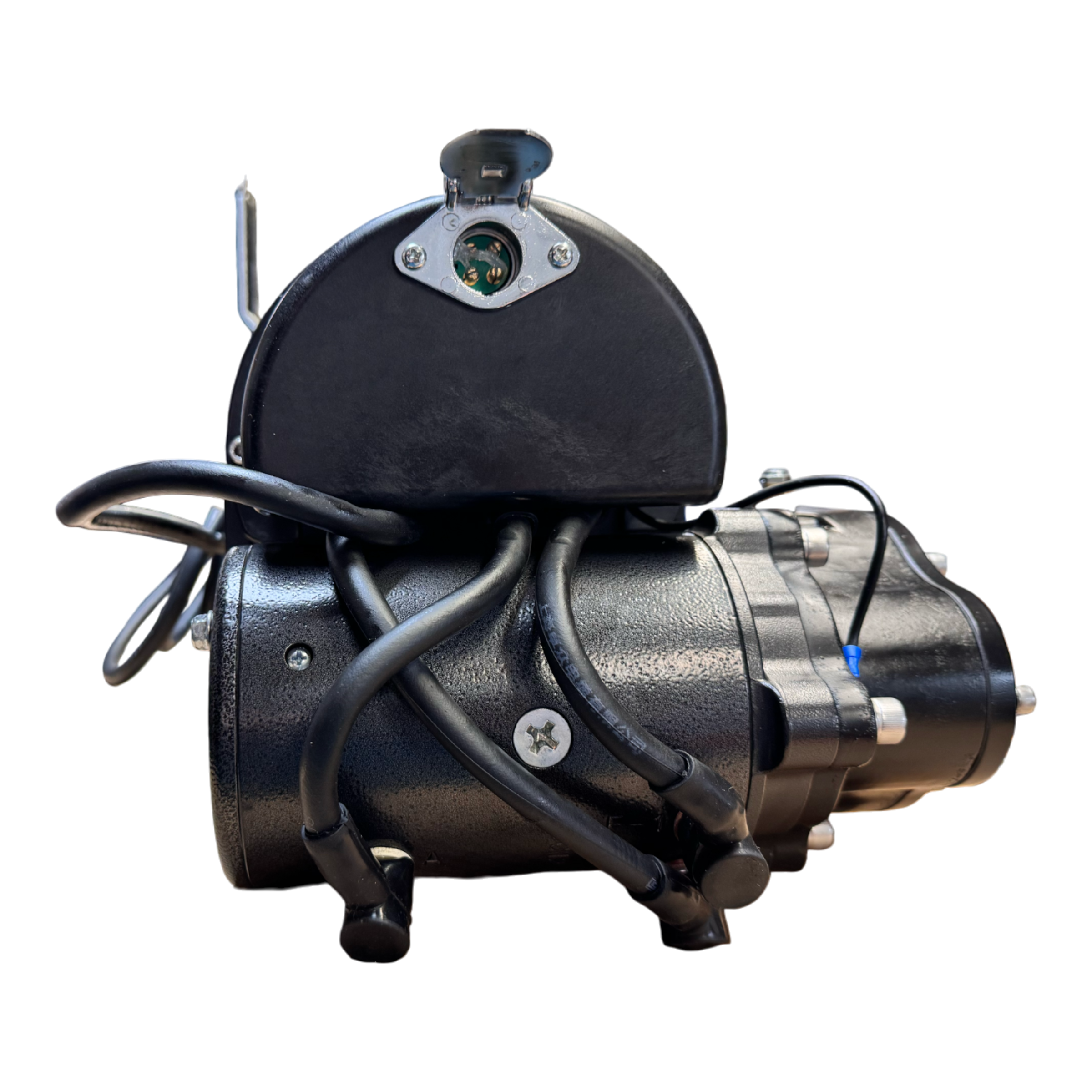

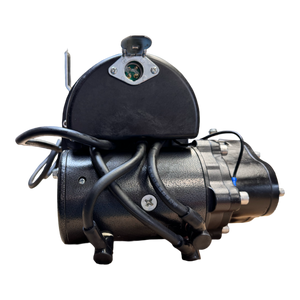

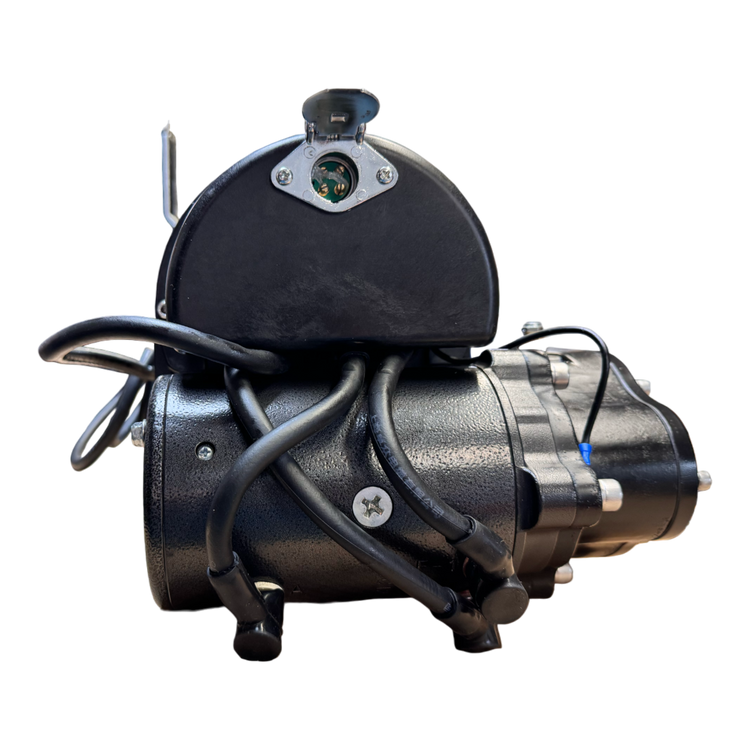

The PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch motor, shown front-facing with visible wiring and connectors, is engineered for dependable pulling power in worm gear winch applications.

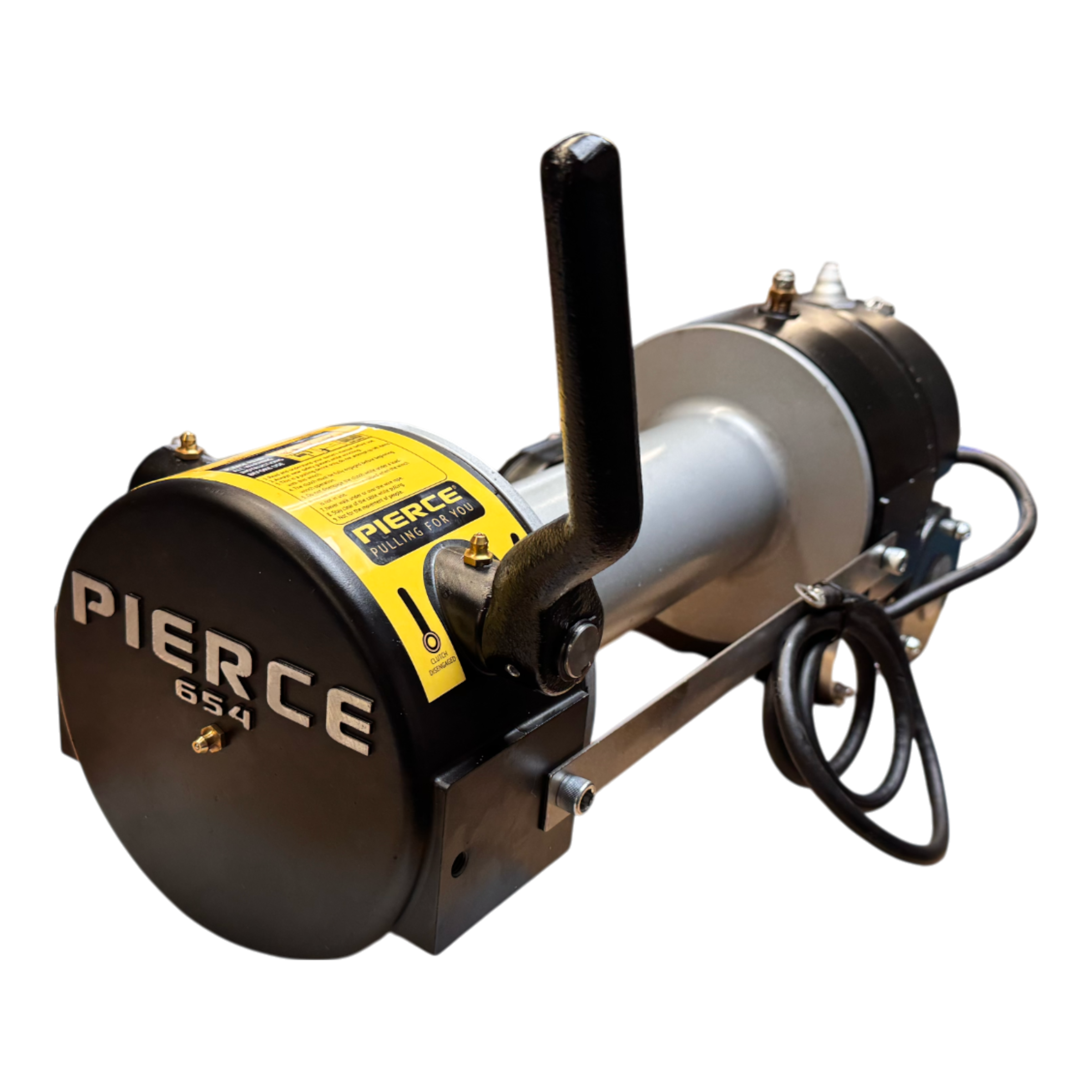

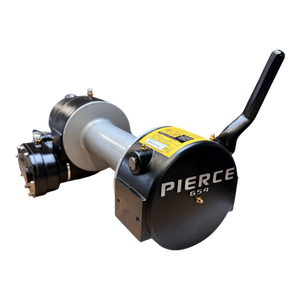

PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch with handle and power cord, offering strong pulling force, isolated on white background.

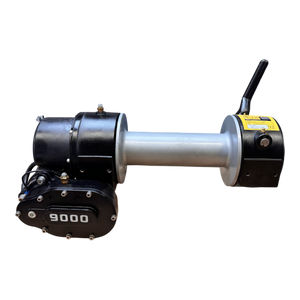

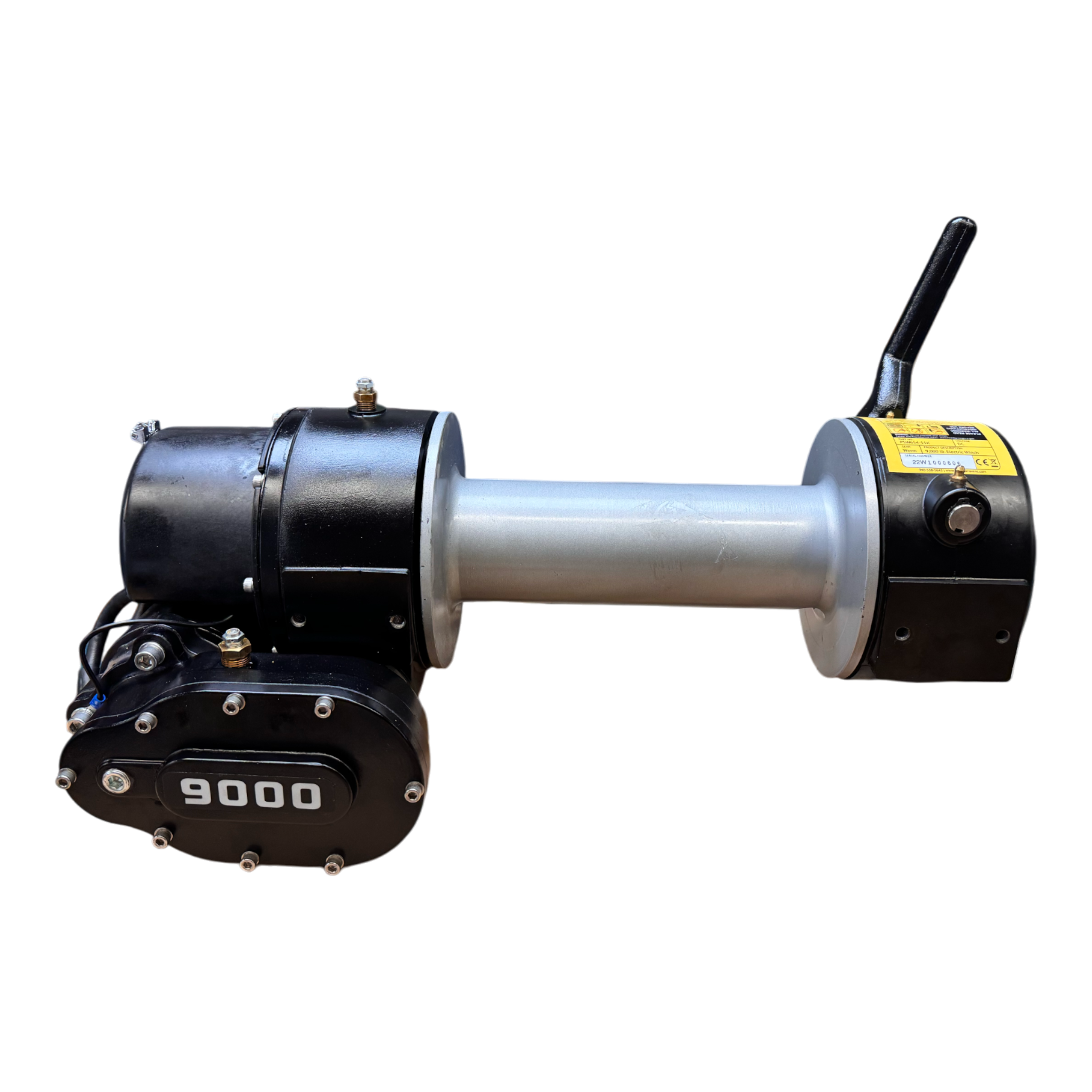

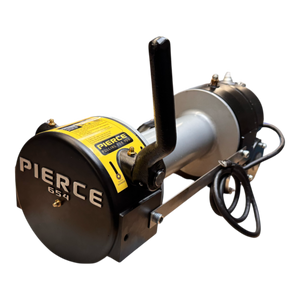

The PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch features black and metallic elements and a handle, delivering 9,000 lbs of pulling force.

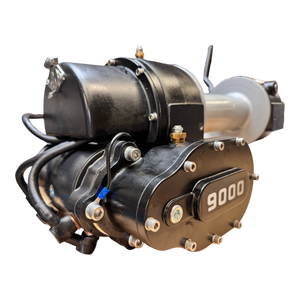

The PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch features a black metal body with bolts and cables for powerful pulling, isolated on a white background.

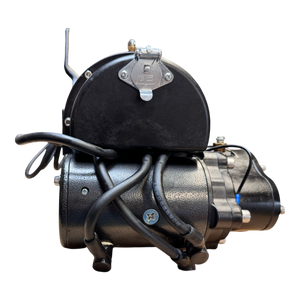

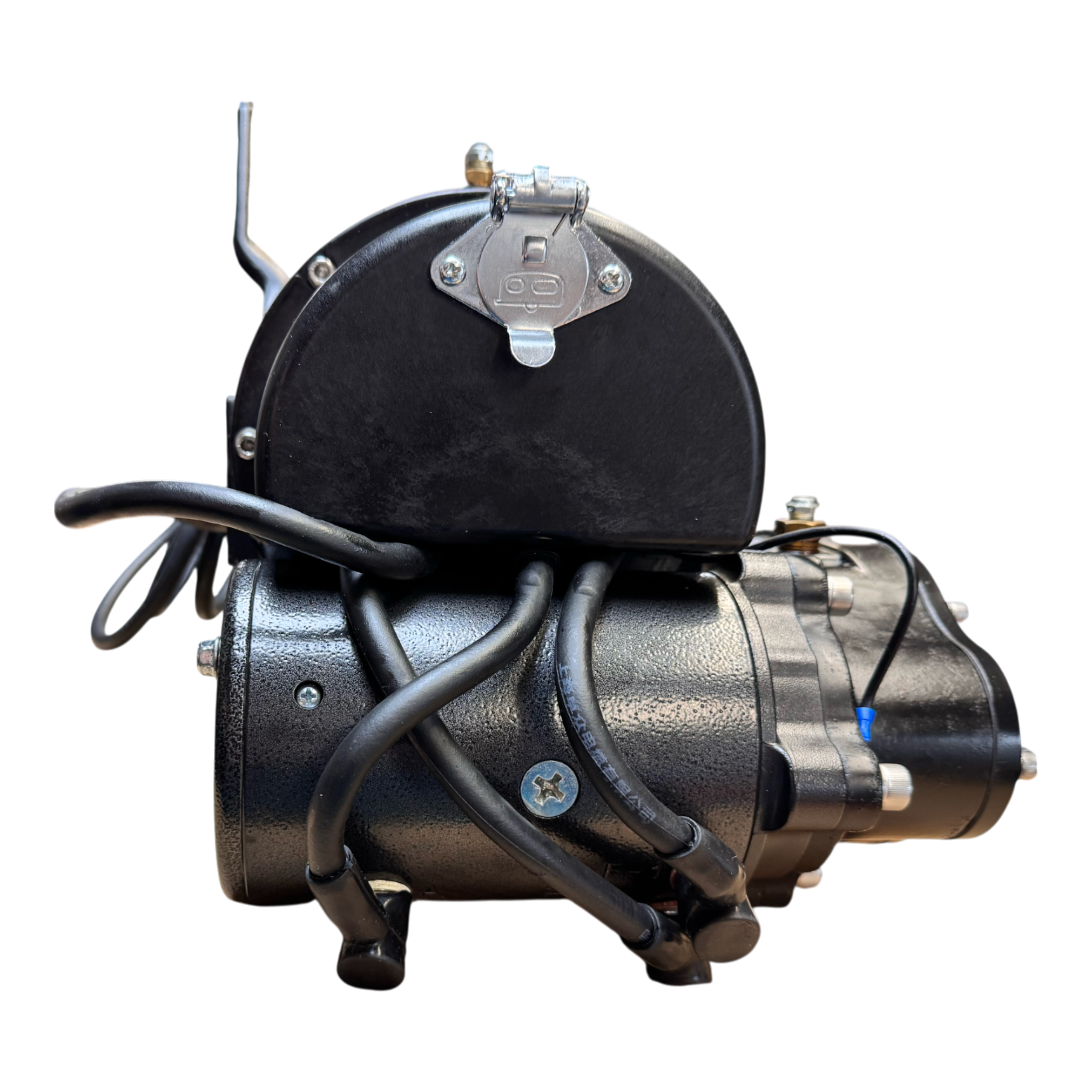

The PIERCE 9,000 lbs. 11 Drum Industrial Electric Winch features a black motor with attached wires and metal casing, shown from the side against a white background.

9,000 lbs. 11" Drum Industrial Electric Winch

PSW654-11K

Regular price: $1,338.00
Sale price: $1,338.00
Regular price: ~~$0.00~~

Shipping calculated at checkout.

Product variants:

Built to Order

12V Industrial Winch Options:

The worm gear winch can be configured in a variety of ways. These are the base configurations based on the amount of wire rope they can hold and the pulling strength.

9,000 lb. Rating | Holds 100' of ⅜" Wire Rope

9,000 lb. Rating | Holds 125' of ⅜" Wire Rope

12,500 lb. Rating | Holds 100' of ⅜" Wire Rope

12,500 lb. Rating | Holds 125' of ⅜" Wire Rope

Quantity:

WARNING

This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation

9,000 lbs. 11" Drum Industrial Electric Winch Information

The PIERCE worm gear winch provides a reliable and consistent pulling force, supporting loads up to 9,000 lbs. Its strong build is used in various industries globally. With easy access to spare parts and the ability to be used on-site, this winch is a smart investment. Plus, it comes with a limited lifetime warranty.

What is Included

1 x (PSW654-11K) 9,000 lbs. 11" Drum Industrial Electric Winch ↗

1 x (P040) PIERCE Toggle Switch Remote - 20ft Cord - 4 Prong Vulcanized Plug ↗

1 x Instructions

Specifications

BRAKE TYPE: Worm Gear Brake
CLUTCH TYPE: Dog
CONSTRUCTION: Cast Metal
DRUM ROTATION: Counter-Clockwise (Underwound)
DRUM SIZE: 3 ½ in. x 11 in.
GEAR RATIO: 470:1
GEAR TYPE: Worm Gear
MAX AMPS: 400
MAX CAPACITY (LBS.): 9000
MAX LINE SPEED: 14 fpm
MOTOR (HP): 1.5
OPERATING VOLTAGE: 12 Volts DC
RECOMMENDED BATTERY: 650 CCA
RECOMMENDED WIRE: 2 gauge
RECOMMENDED WIRE ROPE: ⅜ in. x 125 ft.

Warranty

Limited Lifetime Warranty

Mechanical Parts guaranteed free of Defects.

Mechanical parts are guaranteed to be free of manufacturer defects.
Parts will be replaced at the manufacturer's discretion.

Electrical Components have a 2 Year Warranty

Warranty ensures that electrical components are free from defects.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

Does not include normal wear and tear, misuse, water damage or other forms of abuse.
Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
