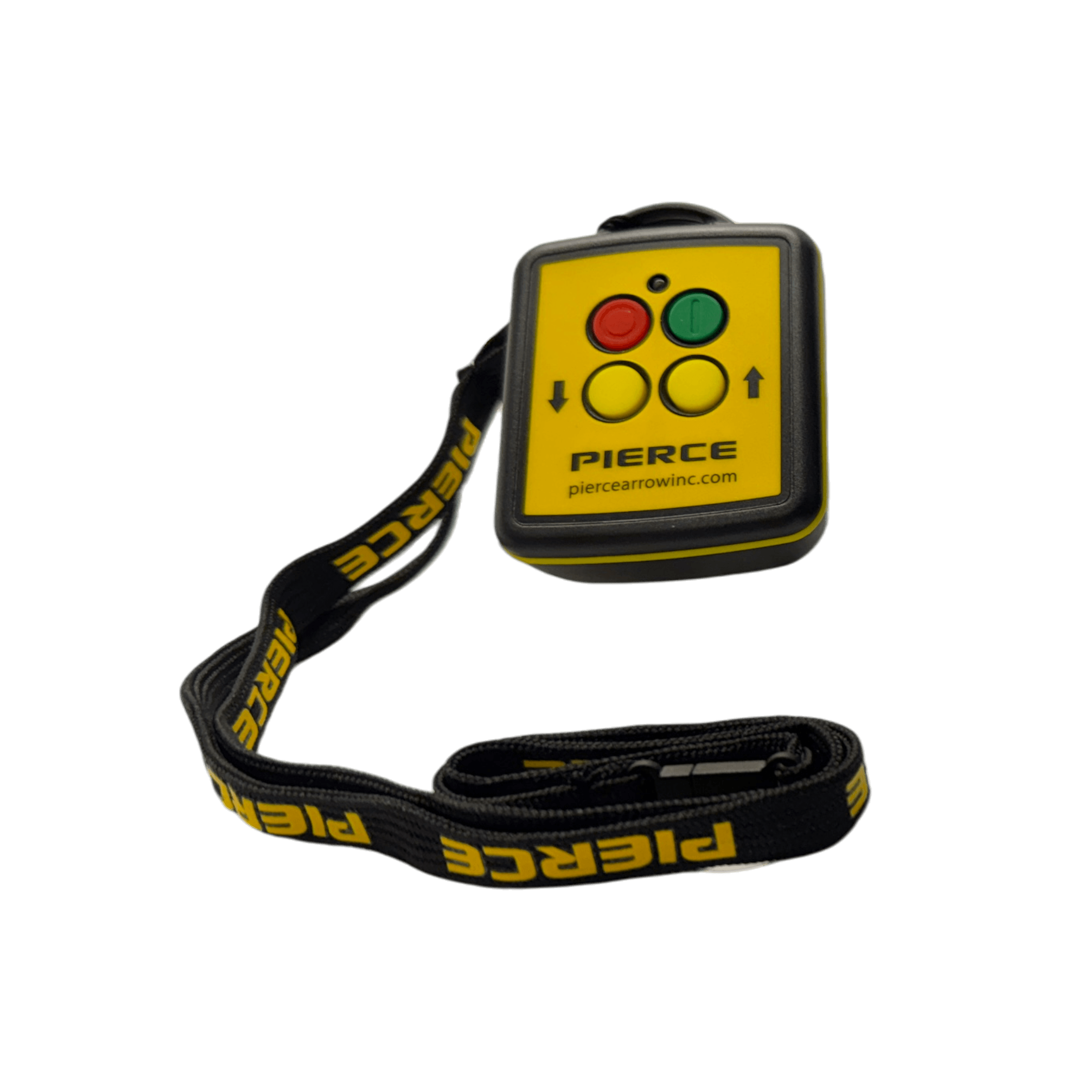

The 2F Wireless Remote Transmitter by PIERCE is a yellow remote control featuring red and green buttons, and offers a range of 150 ft, making it an excellent choice for wireless operation.

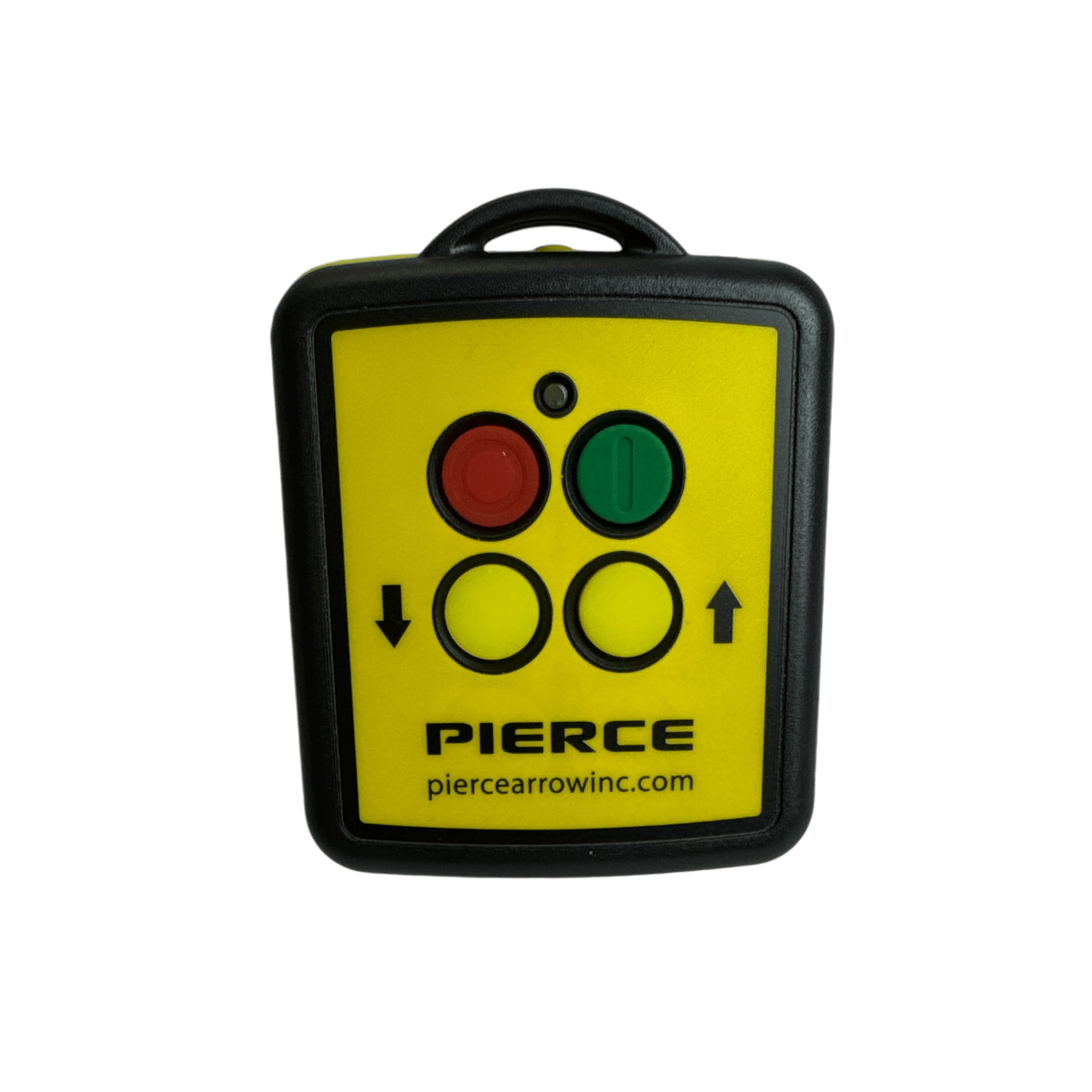

The 2F Wireless Remote Transmitter by PIERCE features a yellow design with red and green buttons, arrow symbols, and is part of the PS002 series. It offers a wireless range of 150 ft.

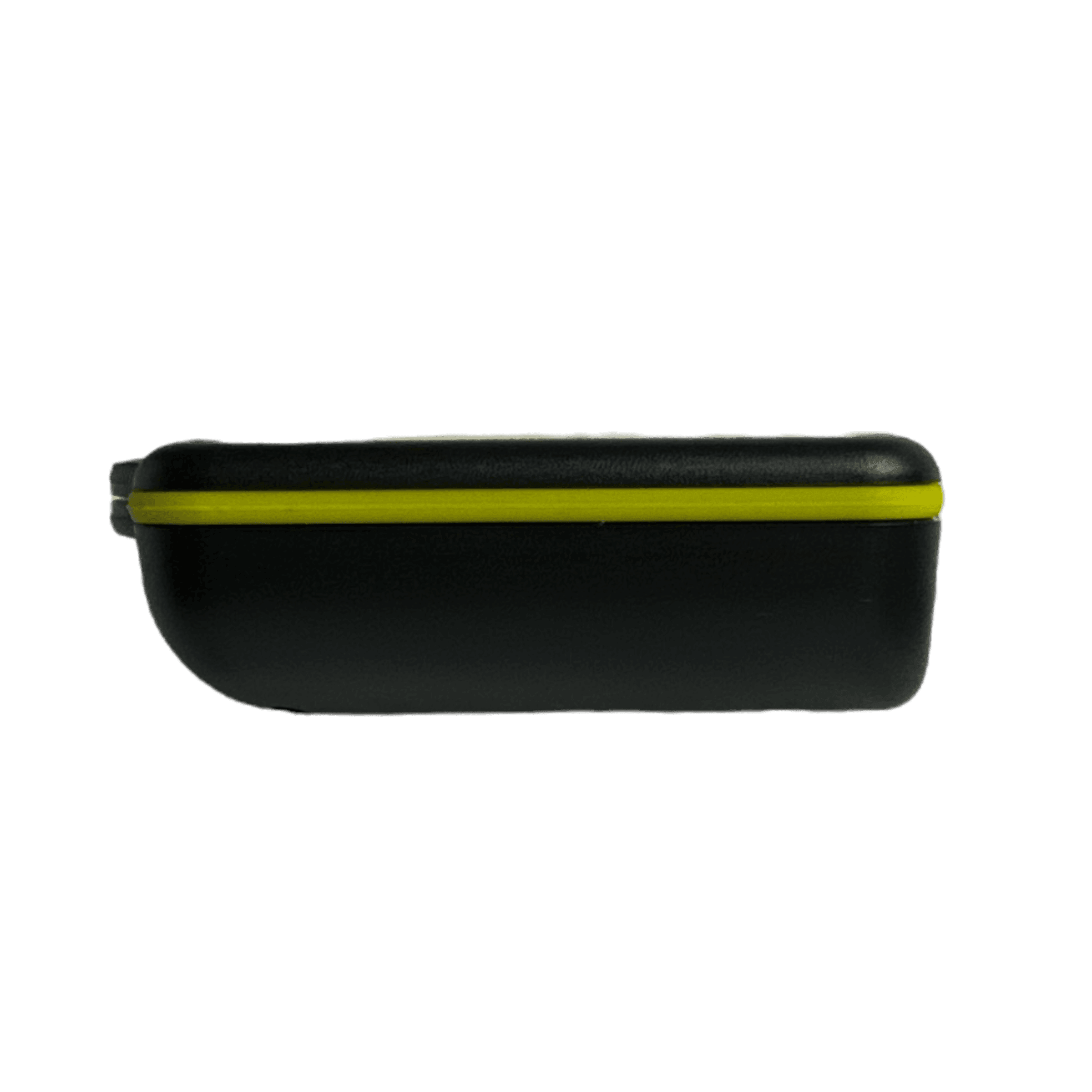

A sleek black and yellow rectangular case with a latch, viewed from the side, designed to house solenoid-operated equipment, ensuring seamless integration with your PIERCE 2 Function Wireless Remote Control System operating at 433 MHz.

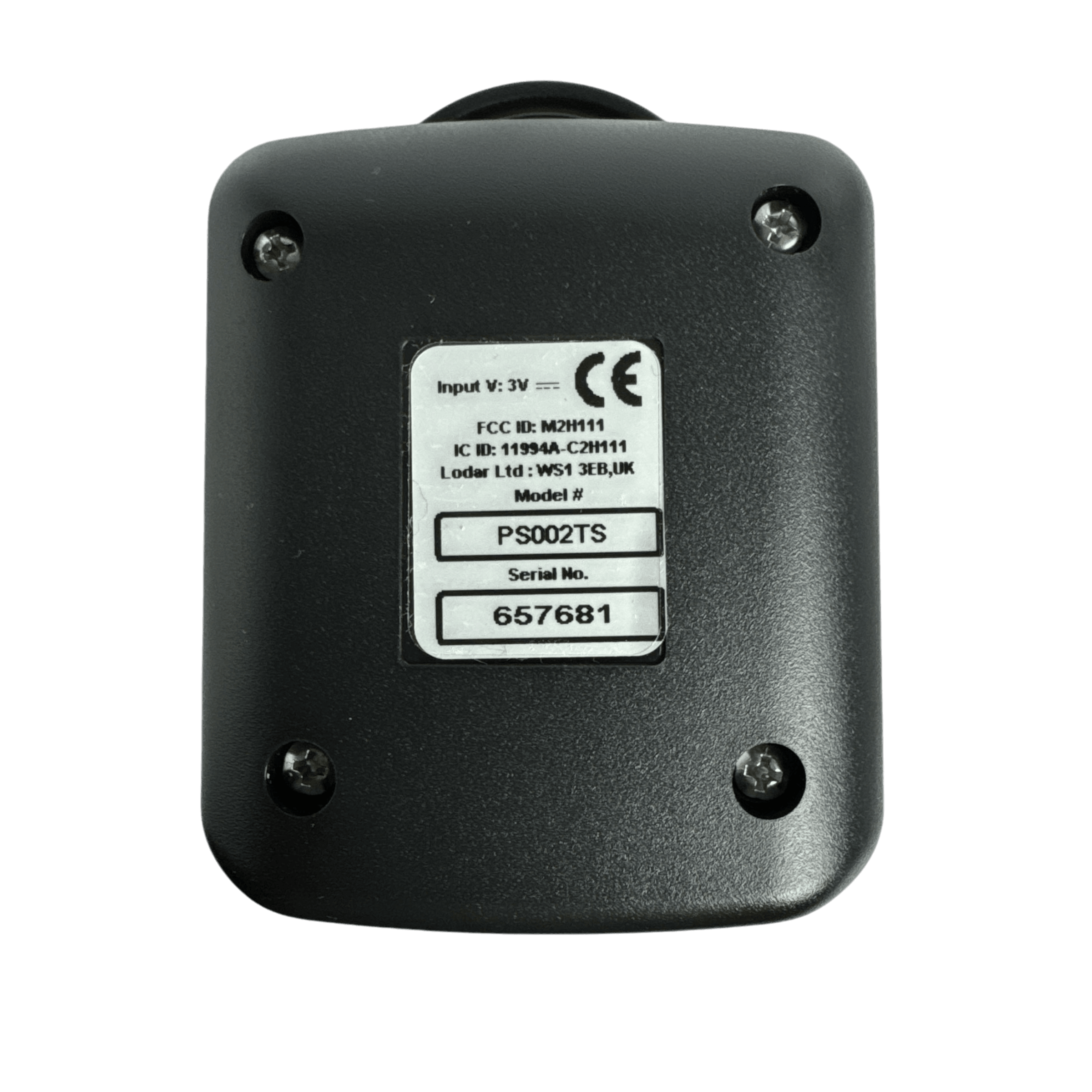

The 2F Wireless Remote Transmitter in a sleek black design features a label with input and model details. As a compatible 2-function replacement, it integrates seamlessly with your PIERCE Wireless Remote system for enhanced convenience and control.

1 5

2F Wireless Remote Transmitter

Name: 2F Wireless Remote Transmitter
Price: 103.0 USD
Rating: 4.95 (38 reviews)

PS002T

$103.00

Quantity

Pre-order

Compatible Products

*Check compatibility before purchasing.

PS002 - 2 Function Wireless Remote Control System

PS002TS - 2 Function Wireless Control System for Dump Trailer

2F Wireless Remote Transmitter

'

Description

Replacement 2-function wireless remote transmitter for PIERCE wireless control systems. Compact and reliable, this unit restores full remote operation when a transmitter is lost or damaged.

2-function replacement wireless transmitter
Designed for use with PIERCE wireless systems
Compact and easy to program to your receiver

Applications: Replacement transmitter for compatible PIERCE wireless control systems.

Specifications

Specification	Details
CHANNEL	Wide Band, Fixed
FREQUENCY	433 MHz
FUNCTIONS	2
OPERATING DISTANCE	150 ft. (45 m.)
OPERATING TEMPERATURE RANGE	-22°F to 149°F (-30°C to 65°C)
SWITCH TYPE	Silicone Rubber Keypad with Carbon Pill
TRANSMITTER	Mini
TRANSMITTER BATTERIES	AAA x 2
TRANSMITTER IP RATING	IP 67
TYPE	Transmitter Only

Resources

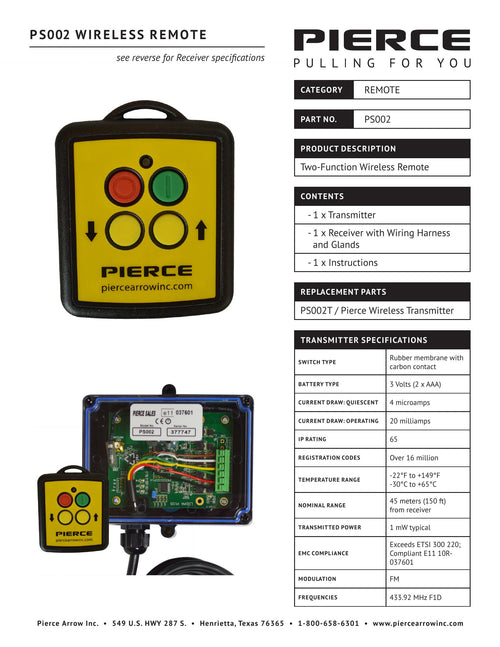

PS002 Spec Sheet

Spec Sheet

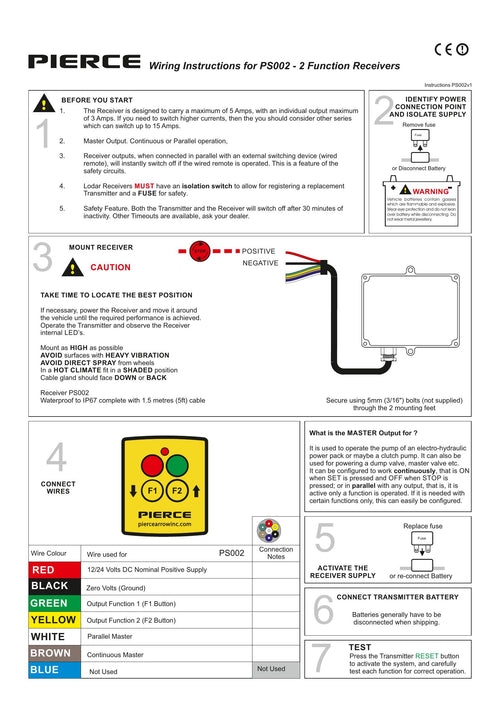

PS002 - Wiring Diagram

Wiring Diagram

Reviews

Great device. Easy to pair great customer service also. Thanks

Thank you for letting us know! We will share with the team. :)

Nothing but QUALITY parts. It works great every time

Great to hear! 😃

Kit Complete and fast shipping

I purchased as a replacement remote and worked as good as the first one. However, the old and new have a good range of about 35'. When I stand at the end of the trailer 40' away, it has a problem staying connected while going up or down. The connection gets interrupted and it skips until I walk closer to the receiver.

Thank you for your review! The 35' range limit you are experiencing indicates something isn't working as it should. There are several things that can cause this and I'll list out here the most common causes in descending order.

- The biggest factor can be the mounting placement of the receiver itself. If it is in a very thick toolbox or behind a bunch of power cables, etc, it is possible it is experiencing interference.
- The transmitter having low batteries can also be a common issue, but it sounds like you can rule that one out since this is the second transmitter.
- Cold weather can cause issues but it would need to be very cold to cut the range more than half like you are experiencing? Unless you are in Antartica this is probably not the case either.
- It could be that there is another device on the truck itself operating on the 418Mhz band? Rarely some other products will operate on the same licensed band but that is not common.

Hopefully these can help resolve what is happening, but if they don't, reach out to us. We can work on evaluating the complete system for any repair/replacement under warranty that might be needed.
