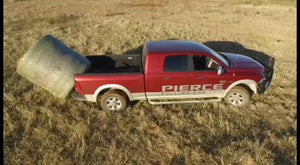

A red pickup truck with a large hay bale loaded on its bed using the PIERCE Truck Bed Gooseneck Hay Bale Spike is parked on grassy terrain under a clear sky. The truck has Pierce written on its side. Several more hay bales are visible in the background.
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
Aerial view of a white pickup truck with a PIERCE Bolt-in Truck Bed Hay Bale Spike and other equipment in the back, parked on dry grassy terrain.
A PIERCE Bolt-in Truck Bed Hay Bale Spike efficiently loads large hay bales in a field, framed by trees in the background.
A large hay bale is expertly loaded onto a flatbed trailer in a field on a clear day using the PIERCE Bolt-in Truck Bed Hay Bale Spike.
#mount type_BOLT-IN mount
#mount type=gooseneck mount
    A red pickup truck with a large hay bale loaded on its bed using the PIERCE Truck Bed Gooseneck Hay Bale Spike is parked on grassy terrain under a clear sky. The truck has Pierce written on its side. Several more hay bales are visible in the background.
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    Aerial view of a white pickup truck with a PIERCE Bolt-in Truck Bed Hay Bale Spike and other equipment in the back, parked on dry grassy terrain.
    A PIERCE Bolt-in Truck Bed Hay Bale Spike efficiently loads large hay bales in a field, framed by trees in the background.
    A large hay bale is expertly loaded onto a flatbed trailer in a field on a clear day using the PIERCE Bolt-in Truck Bed Hay Bale Spike.
    #mount type_BOLT-IN mount
    #mount type=gooseneck mount
A red pickup truck with a large hay bale loaded on its bed using the PIERCE Truck Bed Gooseneck Hay Bale Spike is parked on grassy terrain under a clear sky. The truck has Pierce written on its side. Several more hay bales are visible in the background.
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
Aerial view of a white pickup truck with a PIERCE Bolt-in Truck Bed Hay Bale Spike and other equipment in the back, parked on dry grassy terrain.
A PIERCE Bolt-in Truck Bed Hay Bale Spike efficiently loads large hay bales in a field, framed by trees in the background.
A large hay bale is expertly loaded onto a flatbed trailer in a field on a clear day using the PIERCE Bolt-in Truck Bed Hay Bale Spike.
#mount type_BOLT-IN mount
#mount type=gooseneck mount
A red pickup truck with a large hay bale loaded on its bed using the PIERCE Truck Bed Gooseneck Hay Bale Spike is parked on grassy terrain under a clear sky. The truck has Pierce written on its side. Several more hay bales are visible in the background.
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
Aerial view of a white pickup truck with a PIERCE Bolt-in Truck Bed Hay Bale Spike and other equipment in the back, parked on dry grassy terrain.
A PIERCE Bolt-in Truck Bed Hay Bale Spike efficiently loads large hay bales in a field, framed by trees in the background.
A large hay bale is expertly loaded onto a flatbed trailer in a field on a clear day using the PIERCE Bolt-in Truck Bed Hay Bale Spike.
#mount type_BOLT-IN mount
#mount type=gooseneck mount
    A red pickup truck with a large hay bale loaded on its bed using the PIERCE Truck Bed Gooseneck Hay Bale Spike is parked on grassy terrain under a clear sky. The truck has Pierce written on its side. Several more hay bales are visible in the background.
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    #mount type_gooseneck mount
    Aerial view of a white pickup truck with a PIERCE Bolt-in Truck Bed Hay Bale Spike and other equipment in the back, parked on dry grassy terrain.
    A PIERCE Bolt-in Truck Bed Hay Bale Spike efficiently loads large hay bales in a field, framed by trees in the background.
    A large hay bale is expertly loaded onto a flatbed trailer in a field on a clear day using the PIERCE Bolt-in Truck Bed Hay Bale Spike.
    #mount type_BOLT-IN mount
    #mount type=gooseneck mount
A red pickup truck with a large hay bale loaded on its bed using the PIERCE Truck Bed Gooseneck Hay Bale Spike is parked on grassy terrain under a clear sky. The truck has Pierce written on its side. Several more hay bales are visible in the background.
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
#mount type_gooseneck mount
Aerial view of a white pickup truck with a PIERCE Bolt-in Truck Bed Hay Bale Spike and other equipment in the back, parked on dry grassy terrain.
A PIERCE Bolt-in Truck Bed Hay Bale Spike efficiently loads large hay bales in a field, framed by trees in the background.
A large hay bale is expertly loaded onto a flatbed trailer in a field on a clear day using the PIERCE Bolt-in Truck Bed Hay Bale Spike.
#mount type_BOLT-IN mount
#mount type=gooseneck mount

Product Information

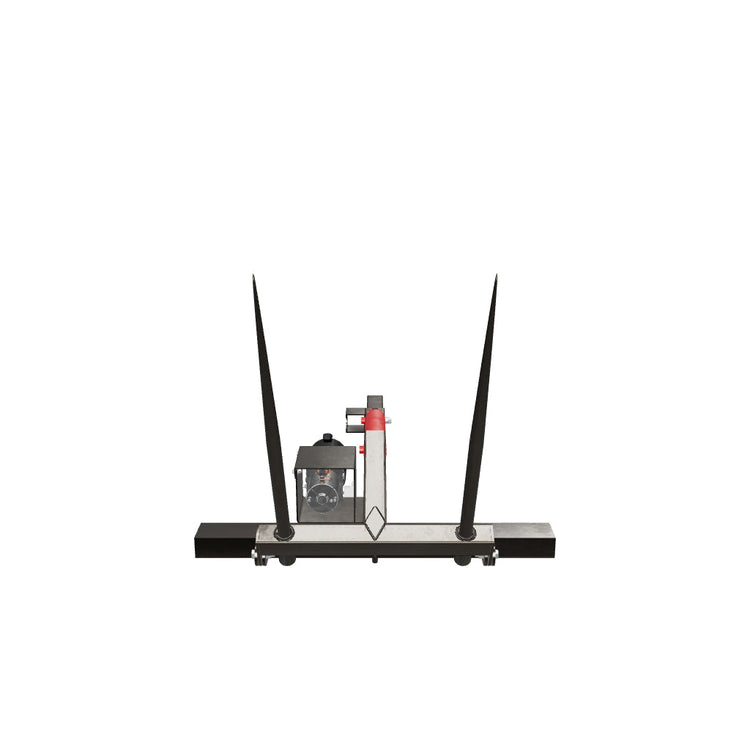

Handcrafted in Henrietta, Texas, PIERCE hydraulic round bale movers have been a trusted and reliable product for more than 30 years. The gooseneck mounted bale spear, designed to easily mount over a 2-5/16 in. gooseneck-ball, features two durable spears for effortless and secure movement of bales. It can be quickly removed when not in use. Each product includes a 12V power up/power down hydraulic pump, a 20' water-resistant remote with magnets for easy mounting on metal surfaces, electrical quick disconnects, and a 200 amp breaker. With a 3,000-psi hydraulic cylinder and a 2,500 lb. capacity, the PIERCE Hydraulic Hay Bale Spike is backed by a two-year warranty for added peace of mind.

Specifications

CYLINDER MEASUREMENTS
3" x 16"
CYLINDER ROD
1.5"
CYLINDER TYPE
Welded
HOSE CONNECTIONS
#6 SAE
MAX CAPACITY (LBS.)
2500
MOUNTING
2-5/16" Gooseneck Ball
OPERATING VOLTAGE
12 Volts DC
OPERATIONAL PRESSURE (PSI)
2500
OVERALL DIMENSIONS
64" x 62" x 30.5"
RESERVOIR CAPACITY
3 qt.
WEIGHT (LBS.)
270

Warranty

2 Year Warranty

All Parts guaranteed free of Defects.

  • Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.

Resources

Manual
ABSK - Bale Spike Manual
Guide
Pump Troubleshooting Guide
Spec Sheet
ABS1K Spec Sheet

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dwight Fisher
Hay Bale Spike Works Great!!!

I am 78 and this week the temperature has been below 0 and I was sick, but the cows had to be hayed. Instead of doing it on a slow, open tractor I was able to do it quickly in a warm truck. I should have gotten the hay spike years ago. Well worth the price.

Hi there! Thank you for taking the time to leave us a review. We are so glad to hear the Truck Bed Gooseneck Hay Bale Spike has been a great help to you, especially during these harsh winter conditions. We're happy to know that our product has made your cow-haying tasks easier and more efficient. Thank you for choosing our product and for your support. Stay warm and take care!

J
James Brien
Great quality

The only thing that I could think to make that any better is to make a plug in for the remote so it doesn't have to be in the weather all the time. I just added a 4 pin connector and plug to it for that reason.

Hi there - Thank you for taking the time to leave a review for our Truck Bed Gooseneck Hay Bale Spike. We are thrilled to hear that you are enjoying the great quality of our product. We appreciate your suggestion about adding a plug-in for the remote to protect it from the weather. We will definitely take this into consideration for future improvements. Good call using a 4 pin connector and plug like you did. Thank you for choosing our product and for your valuable feedback. We hope it continues to serve you well! The PIERCE team

C
Chad Teigen

Nice

Quick, efficient, to the point, gets the job done, our kind of review. Thank you!

A
Amanda

We love our bale fork it has been a big game changer of us!

Thank you for the review! "Game Changer" Love to hear it! We are happy it's working well for you. If you need any assistance, please contact us.

M
Mason Guerra

Very easy to hook up and works great. It has plenty of power. I hooked mine up to my aux in my truck so I bought a 200 amp solenoid to install. If yall offered that in the package would be nice.

12

Truck Bed Gooseneck Hay Bale Spike

ABS1K
$2,158.00
$2,158.00
$0.00
Shipping calculated at checkout.
Hydraulic Truck Bale Spikes Options:
Both truck bale spikes come with a self-contained hydraulic pump that will connect to your vehicle's battery. The question is how you would like to mount your setup. If you would like to be able to remove your bale spike system completely, the gooseneck is the best option. However, if you want to leave the system mounted and still use your gooseneck ball, the bolt-in option may be best. Both allow you to remove the spears when not in use.
Truck Bed Gooseneck Mounting (Removeable)
Truck Bed Bolt-In Mounting (More Permanent)
In Stock
Save 20% by bundling together!
Upgrades

Check Out These Related Products
