2 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators
Compatible Products
2 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators
Description

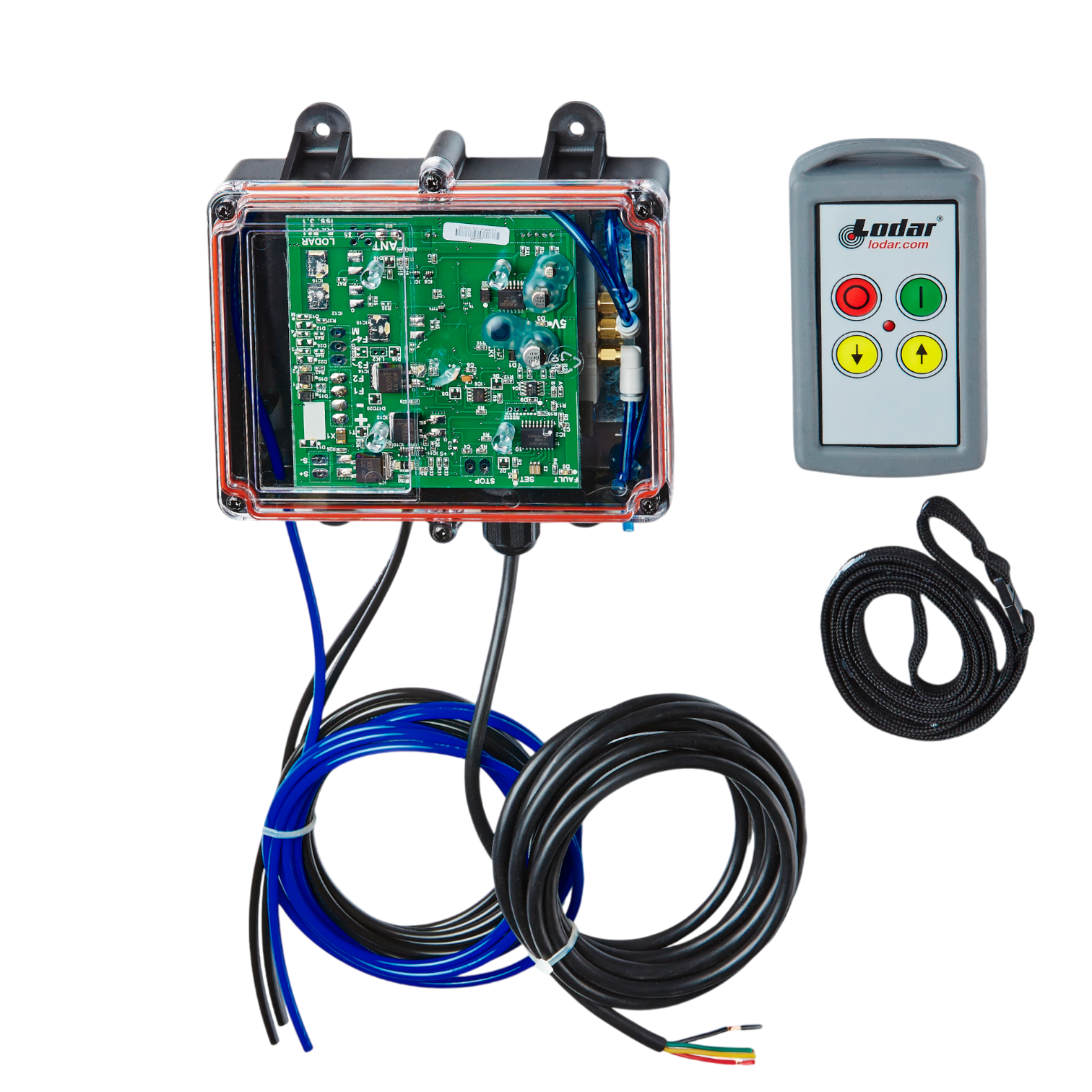

This 2-function Lodar 92 Series wireless system provides remote control of one valve (two directions) using your own pneumatic actuator. Built for operators who need wireless precision but want to supply their own actuator setup.
- 2 functions = 1 valve of wireless control
- Actuator not included
- Standard Series handheld transmitter (IP54) with AAA x 2 batteries
- Weather-sealed receiver (IP67)
- Requires onboard air supply (90–120 PSI) and 12V DC power
Applications: Custom hydraulic builds where users add their own pneumatic actuators.
Specifications
| Specification | Details |
|---|---|
| ACTUATOR | Air |
| FREQUENCY | 418 MHz |
| FUNCTIONS | 2 |
| MASTER OUTPUT | No |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 150 ft. (45 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 67 |
| SERIES | 9000 Series |
| SPECIAL FEATURES | Receiver with Air I/O |
| TRANSMITTER | Standard |
| TRANSMITTER BATTERIES | AAA x 2 |
| TRANSMITTER IP RATING | IP 54 |
| TYPE | Full System - No Actuators |
| WIRING INCLUDED | 8 ft. power / 5 ft. air input / 3½ ft. air outputs |
