16 Function IP Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators
Compatible Products
*Check compatibility before purchasing.
16 Function IP Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators
Description

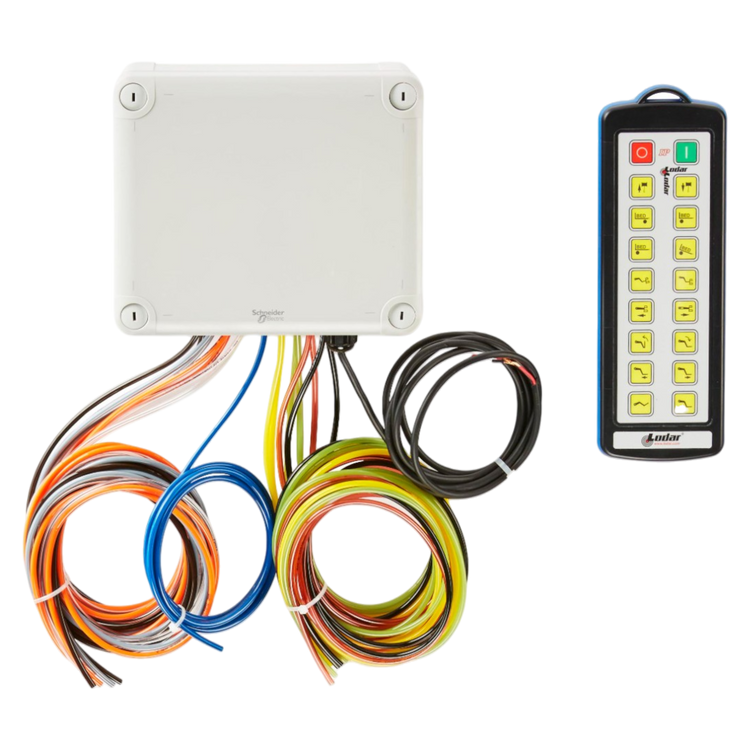

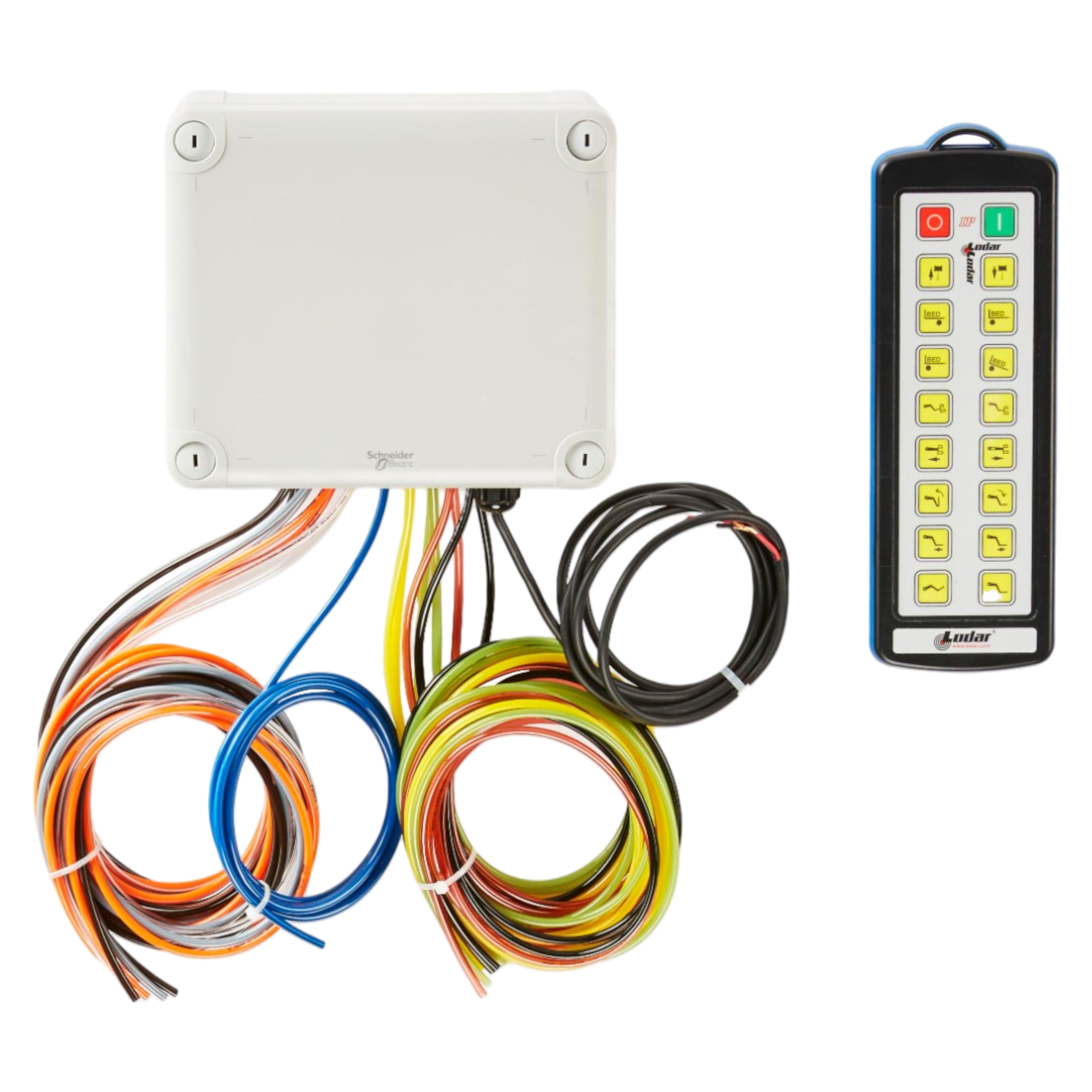

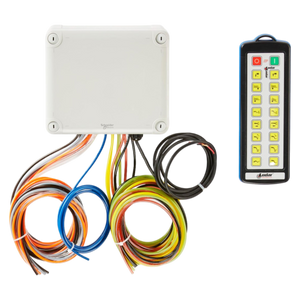

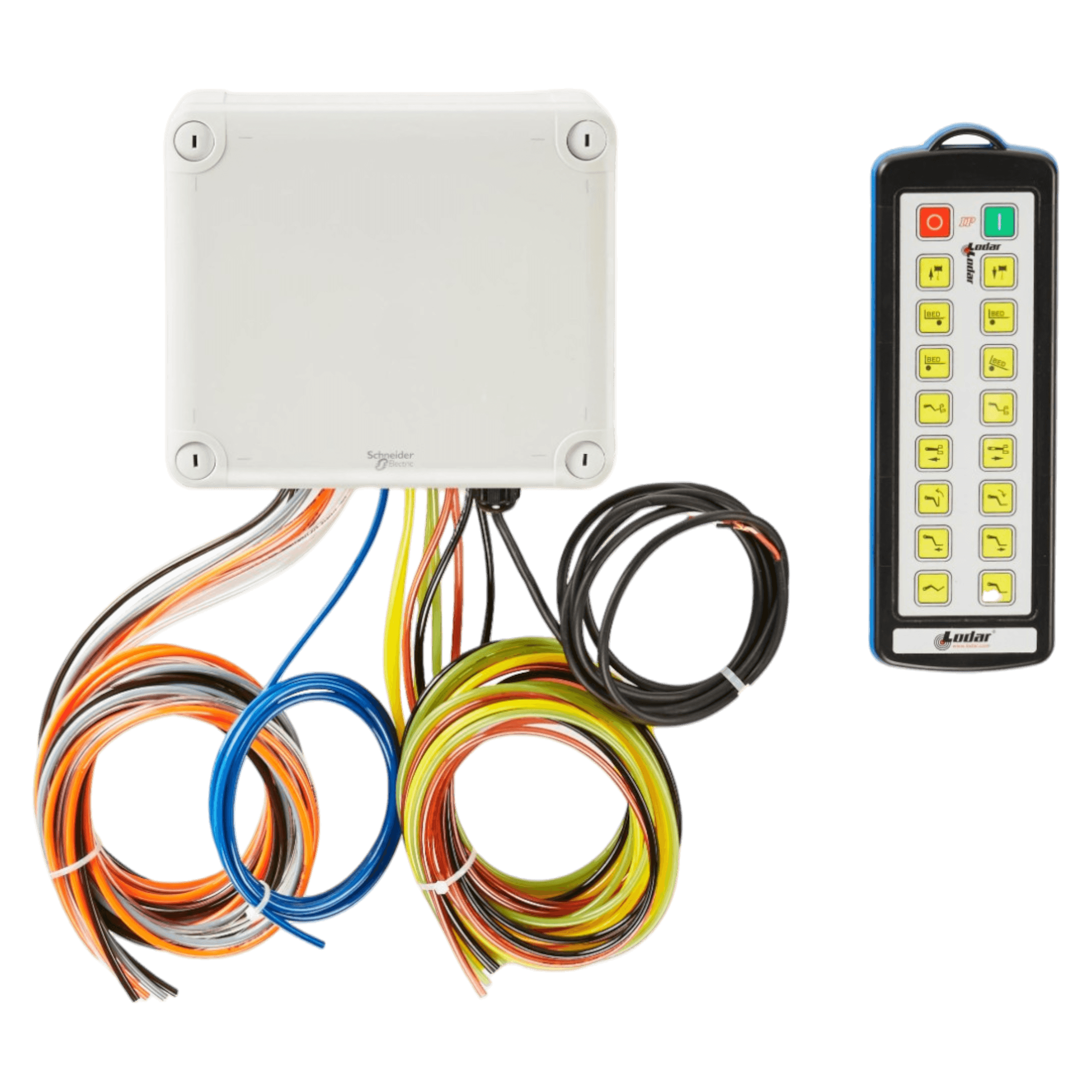

This 16-function Lodar 92 Series wireless system lets you control eight valves (two directions each) using user-supplied pneumatic actuators. Built for heavy-duty multi-valve hydraulic equipment.
- 16 functions = 8 valves of wireless control
- Actuators not included
- Standard Series transmitter (IP54) with AAA x 2 batteries
- Receiver sealed to IP67
- Requires onboard air supply (90–120 PSI) and 12V DC power
Applications: Heavy-duty towing, construction, or ag equipment needing extensive wireless hydraulic control.
Specifications
| Specification | Details |
|---|---|
| FUNCTIONS | 16 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 150 ft. (45 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 65 |
| SERIES | 9000 Series |
| SPECIAL FEATURES | Receiver with Air I/O |
| TRANSMITTER | Industrial Pro |
| TRANSMITTER BATTERIES | AAA x 4 |
| TRANSMITTER IP RATING | IP 65 |
| TYPE | Full System - No Actuators |
| WIRING INCLUDED | 8 ft. power / 5 ft. air input / 3½ ft. air outputs |
