Description

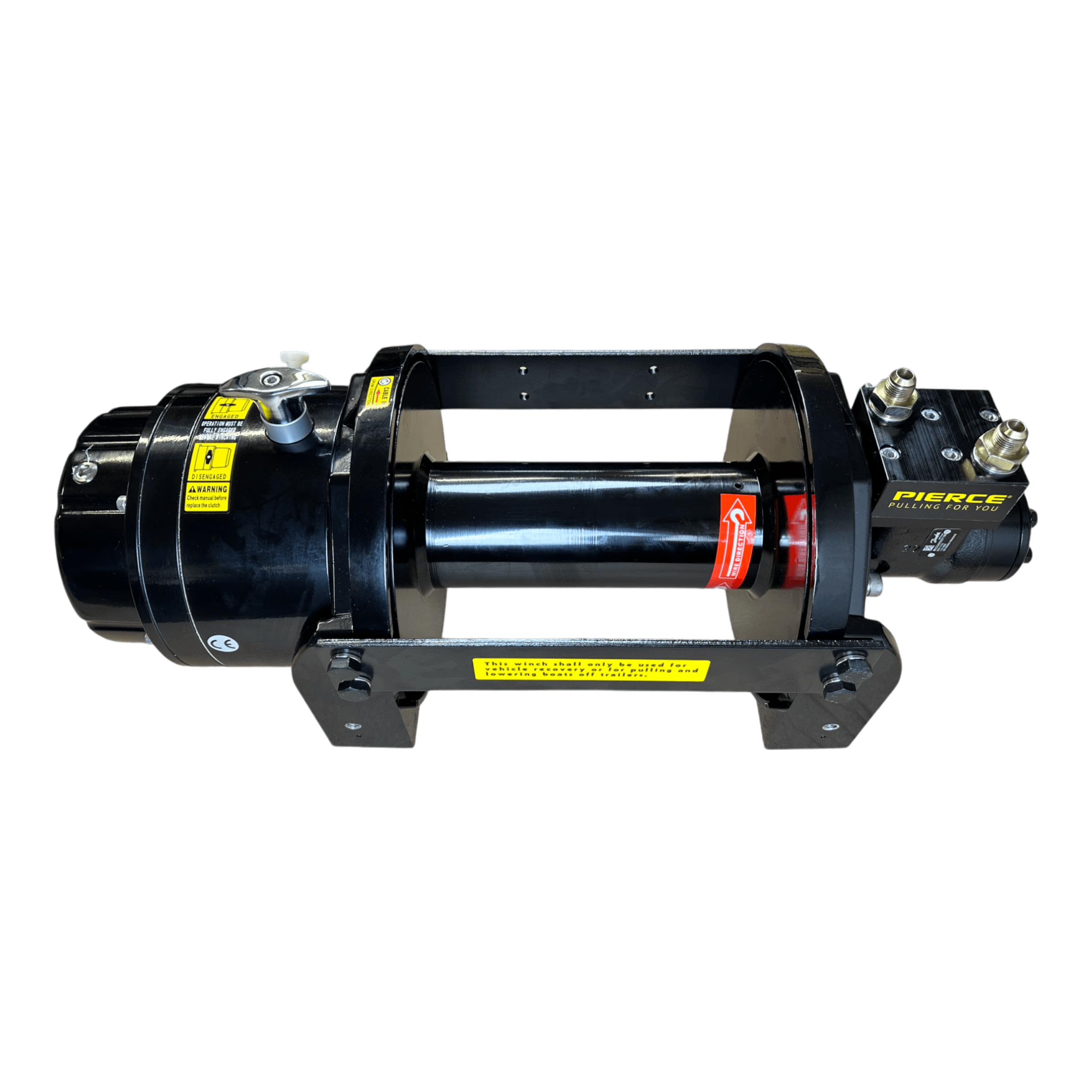

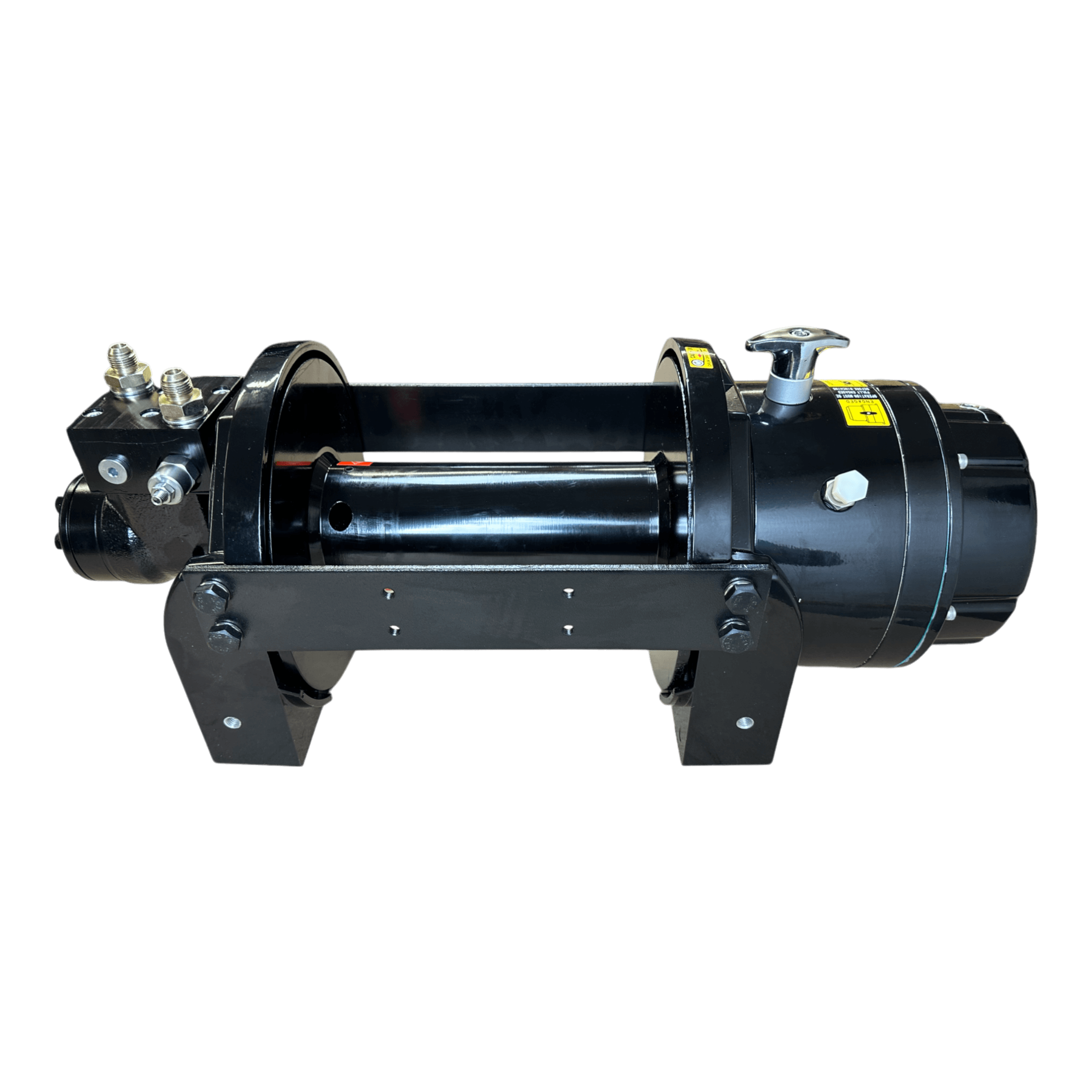

Heavy-Duty Hydraulic Winch with 18,000 lb Planetary Power
The PIERCE PSHV18000 Hydraulic Winch delivers exceptional pulling performance and long-term reliability for demanding recovery and industrial operations. Equipped with a heavy-duty three-stage planetary gear system, it provides smooth, efficient torque transfer and fast, controlled operation under load. The spring-applied multi-disc brake ensures precise, secure load holding, while the powerful hydraulic drive maintains steady performance in continuous-duty use. Built for professional operators, the PSHV18000 offers the strength, control, and dependability needed for tough recovery work.
- 18,000 lb hydraulic pulling capacity for heavy-duty recovery and towing
- Three-stage planetary gear system delivers efficient torque and smooth operation

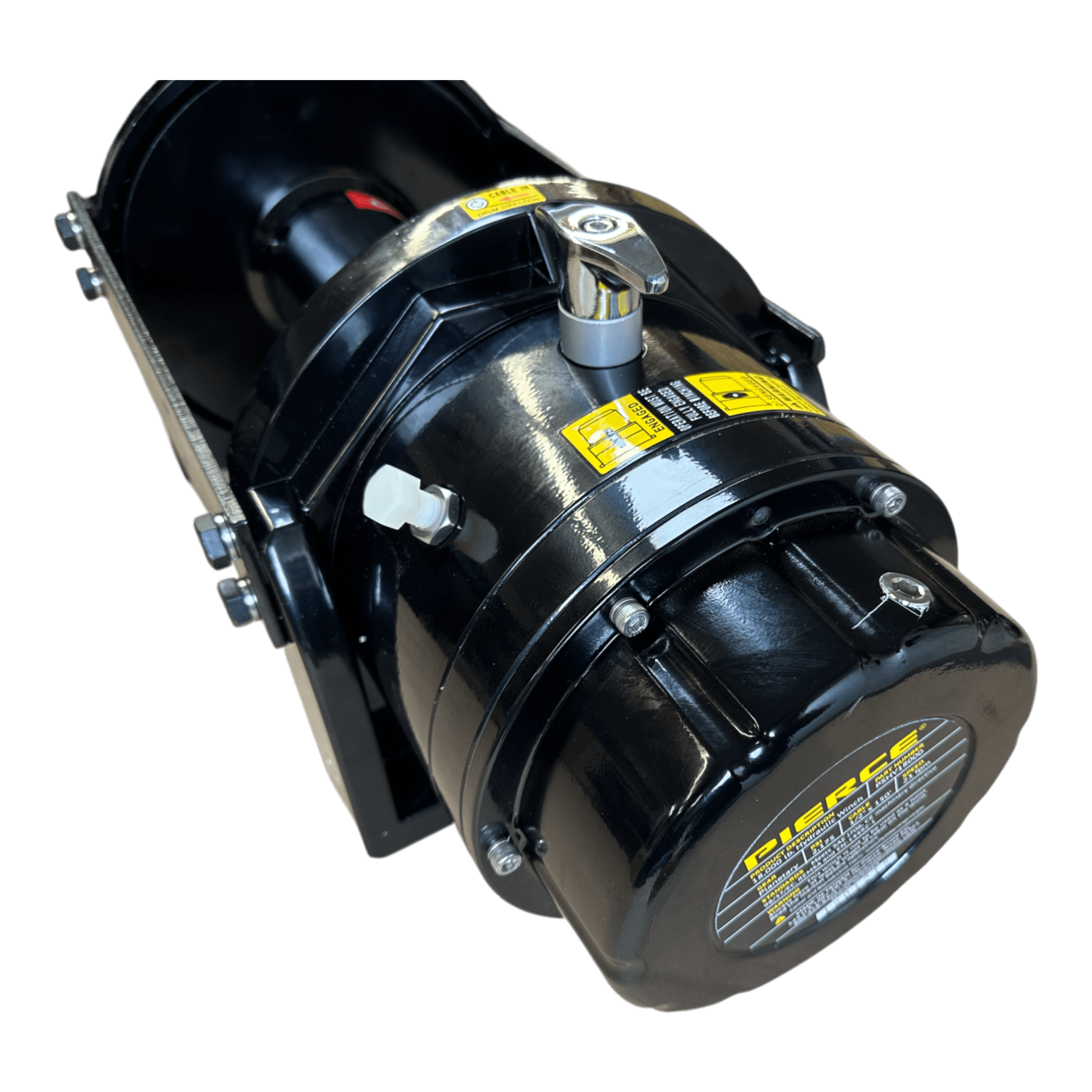

- Spring-applied multi-disc brake ensures secure, reliable load control
- Hydraulic motor drive provides consistent power for continuous-duty operation
- Durable steel construction built for long-lasting professional use

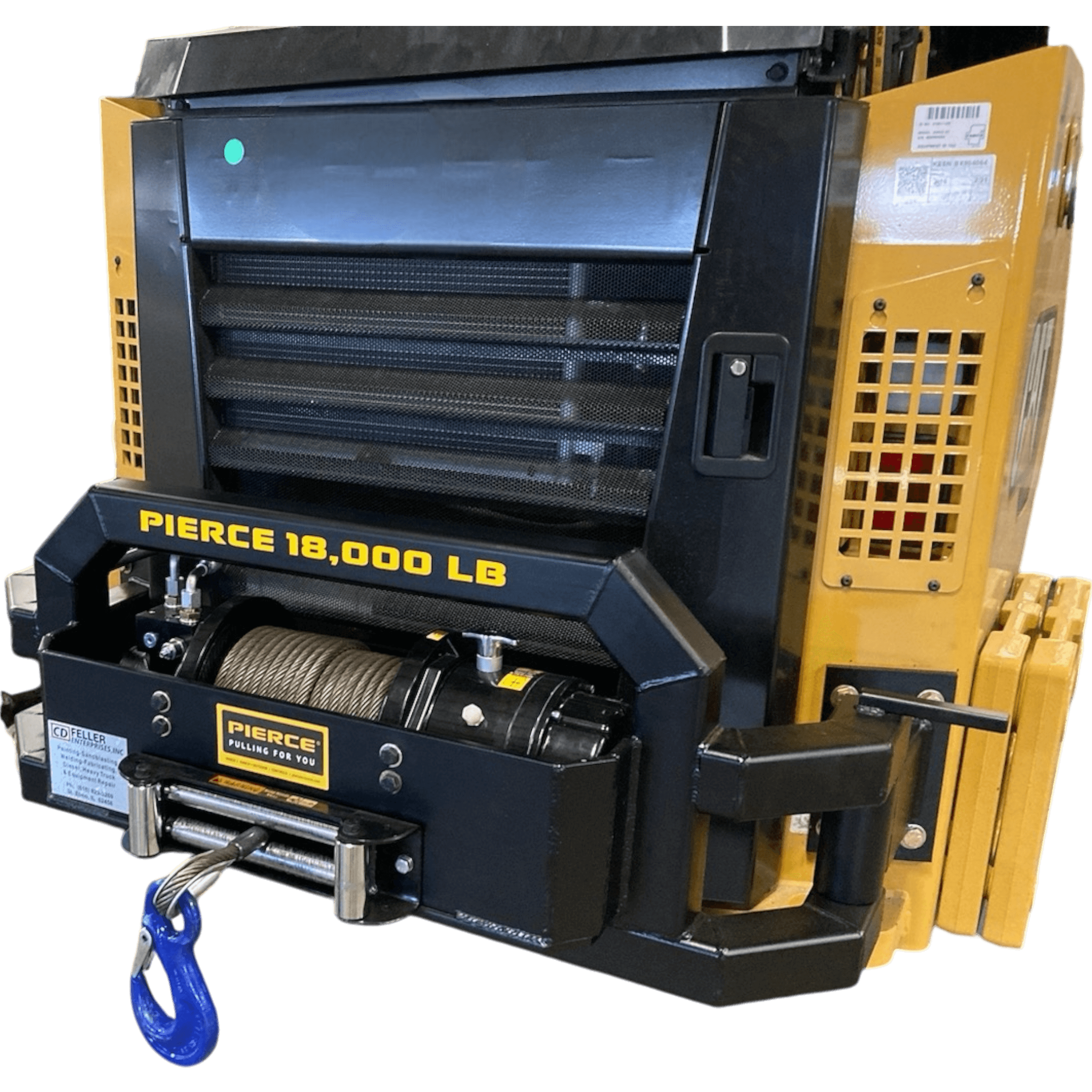

Applications: Ideal for recovery fleets, oilfield service, and industrial equipment where high-capacity hydraulic pulling power is required.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
Also available in other models including the PSHV10000, PSHV15000, and PSHDH20000M. Browse all Hydraulic Winches.

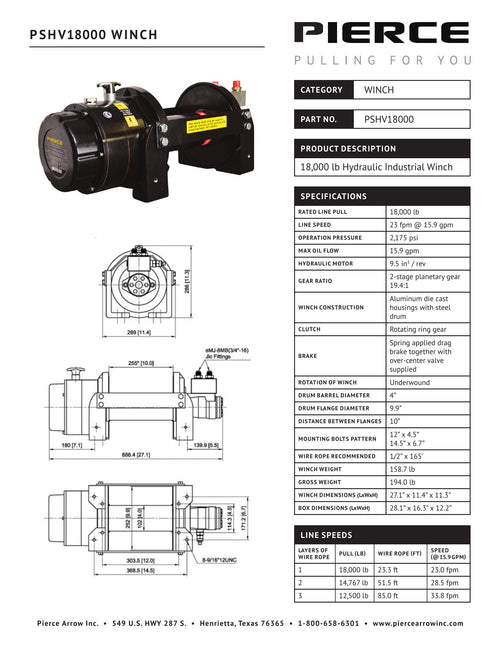

Specifications
| Specification | Details |
|---|---|
| CLUTCH TYPE | Rotating Ring Gear |
| CONSTRUCTION | Aluminum Die Cast Housings with Steel Drum |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| GEAR RATIO | 19.4:1 |
| GEAR TYPE | 2-Stage Planetary Gear |

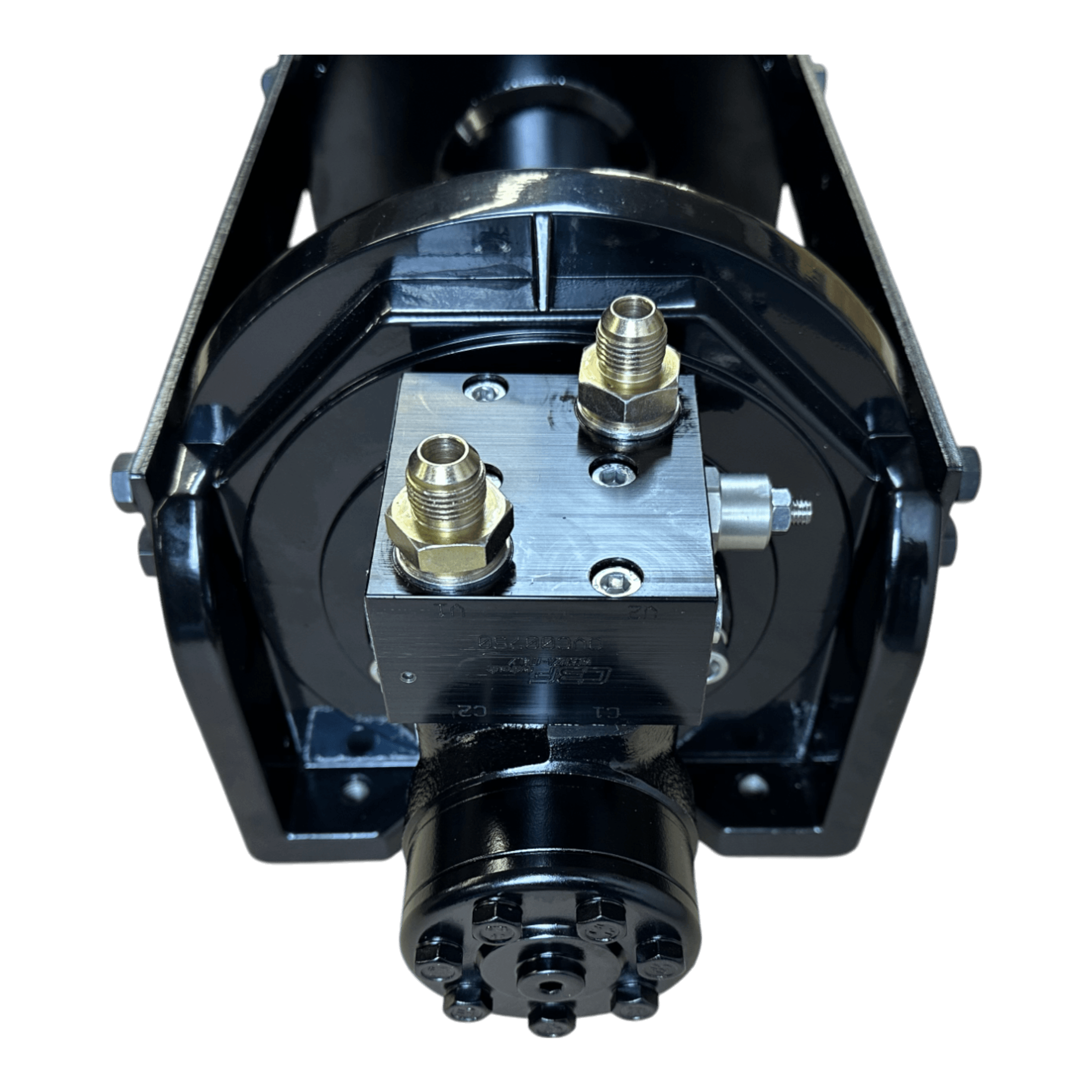

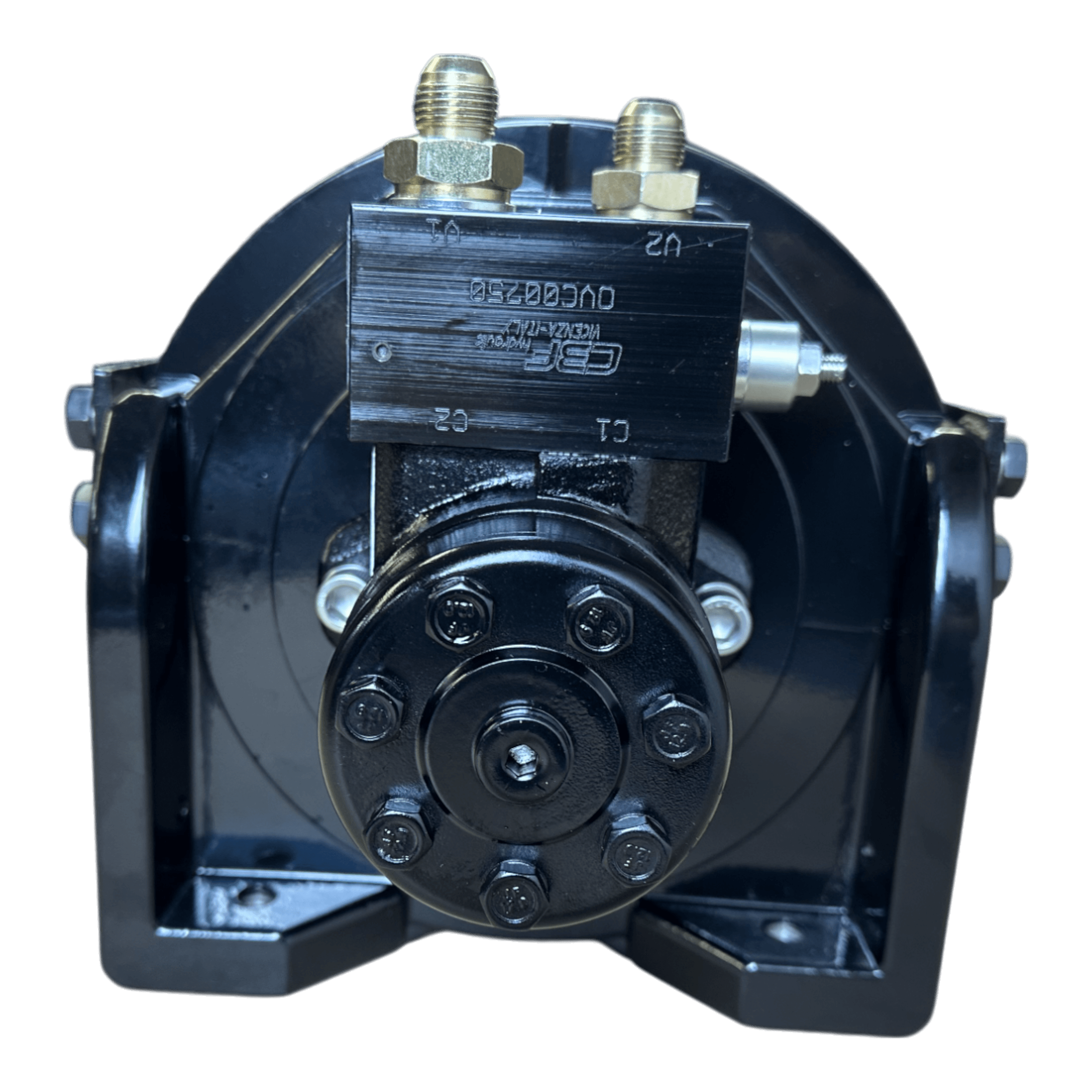

| HYDRAULIC MOTOR | 9.5 in³ / rev |
| MAX CAPACITY (LBS.) | 18000 |
| MAX LINE SPEED | 23 fpm @ 15.9 gpm |
| MAX OIL FLOW (GPM) | 15.9 |
| NMFC | 116440-01 |
| POWER SOURCE | Hydraulic |
| RECOMMENDED WIRE ROPE | ½" x 165' |
FAQs
What precautions should I take when pulling heavy loads?
Place a heavy blanket, jacket, or winch dampener over the wire rope during heavy pulls. If the rope snaps, the cloth can help absorb energy and reduce dangerous backlash. Ensure the item is thick, secure, and placed midway along the taut rope. This simple step protects you and others nearby during tasks like vehicle recovery or heavy towing.
How can I provide a safe anchor point while winching?
Use a D-ring or bow shackle rated for your winch’s pulling capacity with a tree trunk protector or similar anchor strap. Select a sturdy anchor like a healthy tree or vehicle tow point. Wrap the protector around the anchor, attach the shackle, and connect the winch cable. Ensure all gear is rated for the load and check connections before winching. This prevents equipment failure or injury during tasks like vehicle recovery.
How can I double my winch pulling capacity?
You can double your winch’s pulling capacity by using a snatch block, which is a pulley system that redirects the winch cable. Here’s how it works: Attach the snatch block to the load or a secure anchor point, then run the winch cable through the pulley and back to a fixed point, like the tow hook on your vehicle. This setup effectively halves the load on the winch by distributing it across two cable lines, allowing it to pull twice as much weight.
How much pulling power do I need from my winch?
Choose a winch with a pulling capacity at least 1.5 times your vehicle’s gross weight to handle obstacles like mud, snow, sand, water, or steep hills. For example, a 6,000-pound vehicle needs a winch rated for at least 9,000 pounds. This ensures enough power for safe recovery in tough conditions without overloading the winch.
How do I secure a load with my winch?
Use ratchet straps or tie-downs to secure a load safely. Winches are not suitable for tying down loads, as constant movement or vibration can damage their gears. Choose high-quality ratchet straps rated for the load’s weight and attach them to secure anchor points on your vehicle or trailer. Check straps for wear and ensure they’re tight to prevent shifting during transport.
What maintenance is required on my winch?
Regular maintenance extends your winch’s life. Lubricate all grease points, tighten bolts, and inspect electrical connections, especially at the battery, for corrosion or loose fittings. Check the wire rope for wear, flat spots, or broken strands; replace if damaged. Refer to your winch manual for specific checks. Routine care prevents breakdowns and ensures safe operation during tasks like vehicle recovery.
How do I re-spool the wire rope onto my winch?
Always wear leather gloves when re-spooling wire rope to protect your hands. Never use bare hands, as the rope can cause cuts or burns. Keep a slight load on the rope to spool it evenly. Guide the rope with one gloved hand while using the remote control in the other to operate the winch. This ensures safe, tight spooling for effective winching.
What should I do about my vehicles wheels while winching?
Place wheel chocks or sturdy blocks under your vehicle’s wheels before winching. This prevents the vehicle from rolling forward or backward, keeping it stable and safe during the pull. Use solid materials like wood, rubber chocks, or stones, and position them snugly against the tires. This is especially important on slopes or loose terrain during tasks like vehicle recovery.
