Description

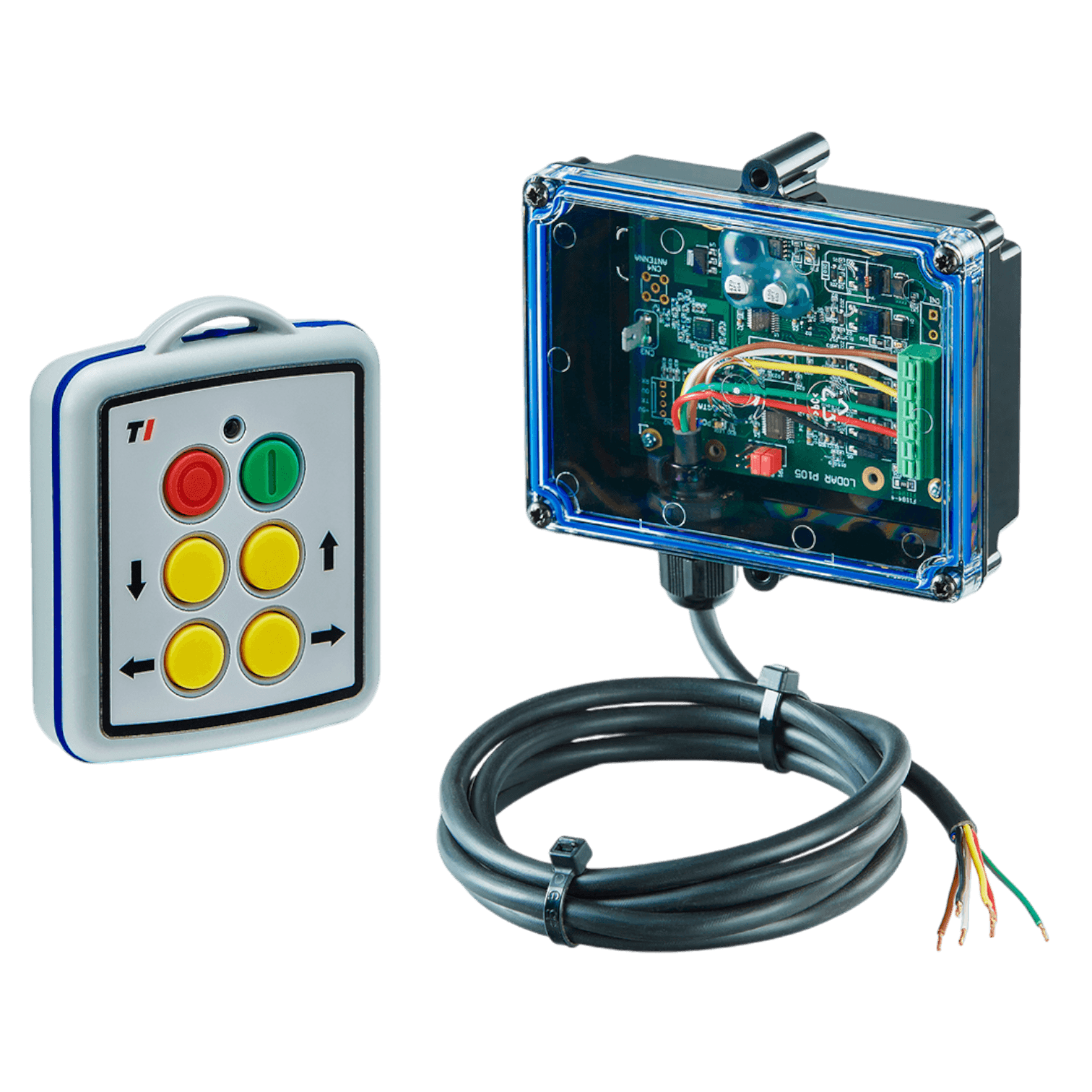

The 4 Function Lodar Mini 11 Series Wireless Control System delivers compact wireless performance in a rugged package. With both transmitter and receiver sealed to IP67, it provides dependable control of four functions in the harshest conditions.
- 4 functions of wireless control
- Mini handheld transmitter (IP67)
- Receiver sealed to IP67
- Compact and lightweight design
Applications: Light-duty recovery trucks, utility rigs, and compact hydraulic systems.
Need fewer functions? See the 2-function 11 Series system.

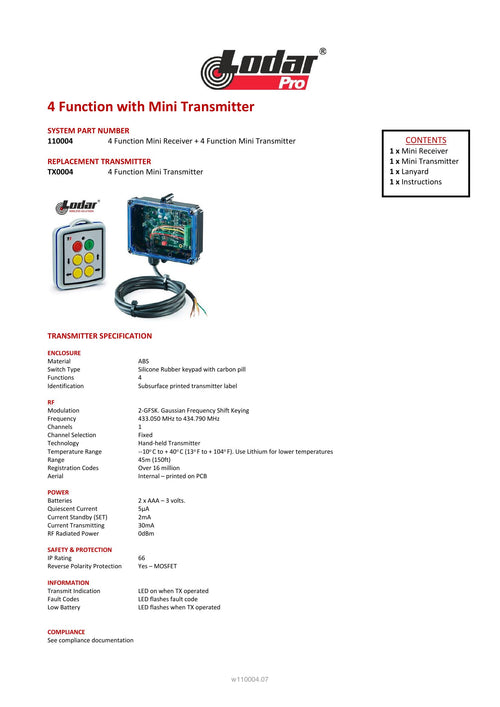

Specifications
| Specification | Details |
|---|---|
| FUNCTIONS | 4 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 3 |
| OPERATING DISTANCE | 150 ft. (45 m.) |
| OPERATING TEMPERATURE RANGE | 13ºF to 104ºF (-10ºC to 40ºC) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 67 |
| SERIES | 11 Series |
| SWITCH TYPE | Silicone Rubber Keypad with Carbon Pill |
| TRANSMITTER | Mini |
| TRANSMITTER BATTERIES | AAA x 2 |
| TRANSMITTER IP RATING | IP 67 |
| TYPE | Full System |
| WIRING INCLUDED | 9 ft. (3m) wiring loom through gland |
Videos
Warranty
Replacement Parts
4 Function Lodar Replacement Mini Transmitter | 11 Series
The 4 Function Lodar Mini Replacement Transmitter is designed for use with the 4-Function 11 Series Lodar system (110004). This OEM remote restores compact wireless control with quick pairing and rugged daily performance. 4-function Lodar Mini r...
4 Function 12/24V Lodar Replacement FET Receiver | 11 Series
Designed for four-output control, the Lodar 11 Series 4 Function Receiver uses 3A FET switching to operate solenoids, relays, or electric-over-hydraulic valves. A sealed IP67 enclosure provides lasting durability. 4 functions with 3A FET outputs...
