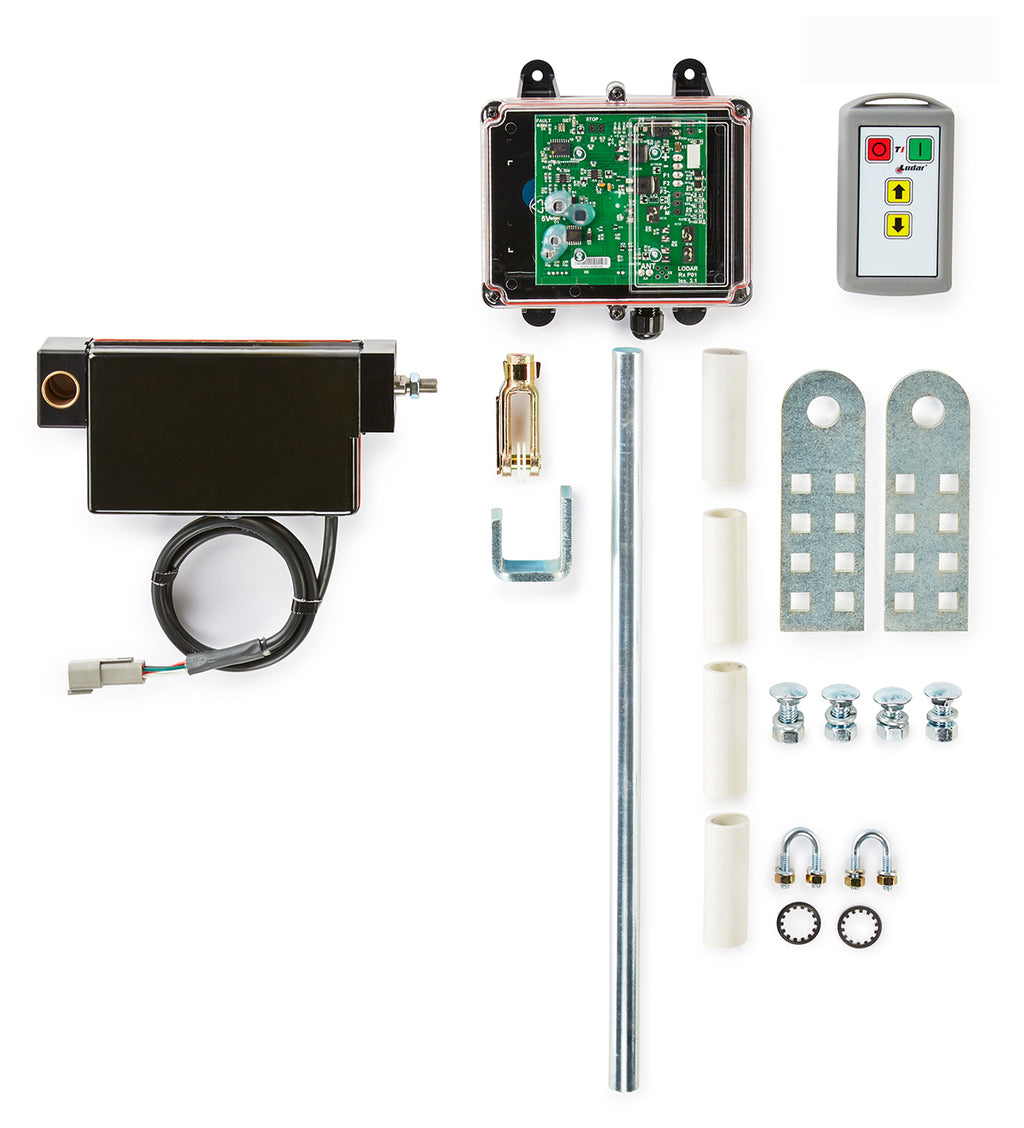

Lodar Wireless Electric Actuator Control System - 2 Functions

Lodar Wireless Electric Actuator Control System - 2 Functions
Description
This electric wireless remote control system operates hand levers safely and effectively. The effectiveness and ease of installation make it not only an alternative, but a clear choice.
Operation Requirements
- On-Board 12 Volt Power
Features
- Up to 2 Functions
- Uses FETs (Field-Effect Transistor) instead of Mechanical Relays
- Low Voltage Protection
Warranty
- Five year pro-rated warranty
Specifications
Specification | Details |
---|---|
ACTUATOR | Electric |
FREQUENCY | 433 MHz |
FUNCTIONS | 2 |
MAX AMPS | 15 |
OPERATING DISTANCE | 200 ft. (61 m.) |
OPERATING VOLTAGE | 12/24 Volts DC |
RECEIVER IP RATING | IP 65 |
SERIES | 9000 Series |
TRANSMITTER | Standard |
TRANSMITTER BATTERIES | 9V x 1 |
TRANSMITTER IP RATING | IP 54 |
TYPE | Full System |
Resources
Videos
Warranty
Replacement Parts

2 Function Lodar Replacement Standard Transmitter | 9000 Series
With precision design and expert engineering, the 2 Function Lodar Replacement Standard Transmitter is the perfect replacement for your 92 series system. Specifically designed for 2-function models, it offers maximum performance and functionality ...

Replacement Actus Actuator
The Replacement Actus Actuator, built by industry leader Actus, is a drop-in replacement for actuators in your Lodar Electric Actuator System. Includes multiple cables and a gray connector. Save time with this convenient replacement part.

Lodar Replacement Electric Actuator Hardware
This hardware kit includes all necessary mounting components and the high-quality actuator for easy installation. Boost efficiency and streamline your workflow with this dependable system. Typically this is purchased as a kit as the Lodar 92150A-...
