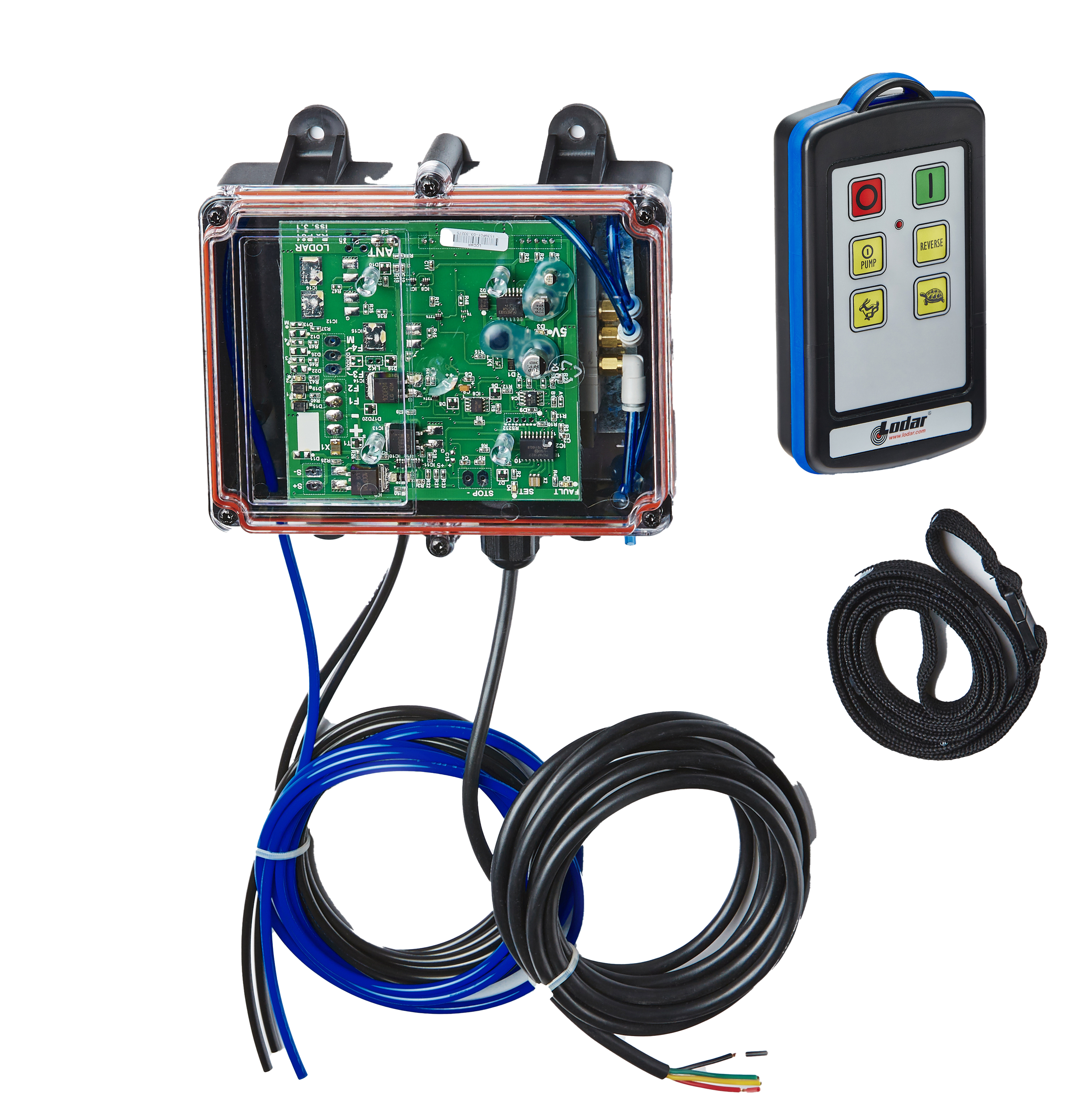

Lodar LTD 2 Function IP Wireless Actuator Control System (92 Series) with exposed circuit board, coiled black cable, and remote; FET Air Receiver included, no actuators. For use in Lodar wireless air actuator systems.

Pairing the 92 Series Lodar Remote & Transmitter

1 2

2 Function IP Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators

Name: 2 Function IP Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators
Price: 1018.0 USD
Rating: 5 (1 reviews)

92270-8

$1,018.00

Quantity

Pre-order

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

2 Function IP Wireless Actuator Control System | 92 Series | FET Air Receiver | No Actuators

'

Description

This 2-function Lodar 92 Series system provides wireless control of a single valve (two directions) using your own pneumatic actuator. Built with an Industrial transmitter and sealed receiver, it is designed for tough, outdoor environments.

2 functions = 1 valve of wireless control
Actuator not included
Industrial handheld transmitter (IP65)
Receiver sealed to IP65
Requires onboard air supply (90–120 PSI) and 12V DC power

Applications: Single-cylinder or auxiliary valve control in recovery, agriculture, and utility trucks where operators supply their own pneumatic actuator.

Included

1 x Instructions

1 x Lanyard

1 x [92202TX-8] - 2 Function Lodar IP Transmitter | 9000 Series

1 x 9270RX

Specifications

Specification	Details
CHANNEL	Wide Band, Fixed
FREQUENCY	418 MHz
FUNCTIONS	2
MASTER OUTPUT	No
MAX AMPS	15
OPERATING DISTANCE	150 ft. (45 m.)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 65
SERIES	9000 Series
SPECIAL FEATURES	Receiver with Air I/O
TRANSMITTER	Industrial Pro
TRANSMITTER BATTERIES	AAA x 4
TRANSMITTER IP RATING	IP 65
TYPE	Full System - No Actuators
WIRING INCLUDED	8 ft. power / 5 ft. air input / 3½ ft. air outputs

Videos

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
