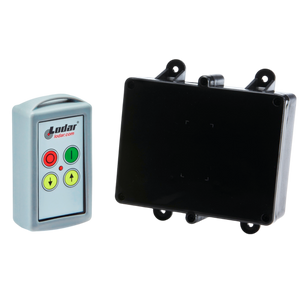

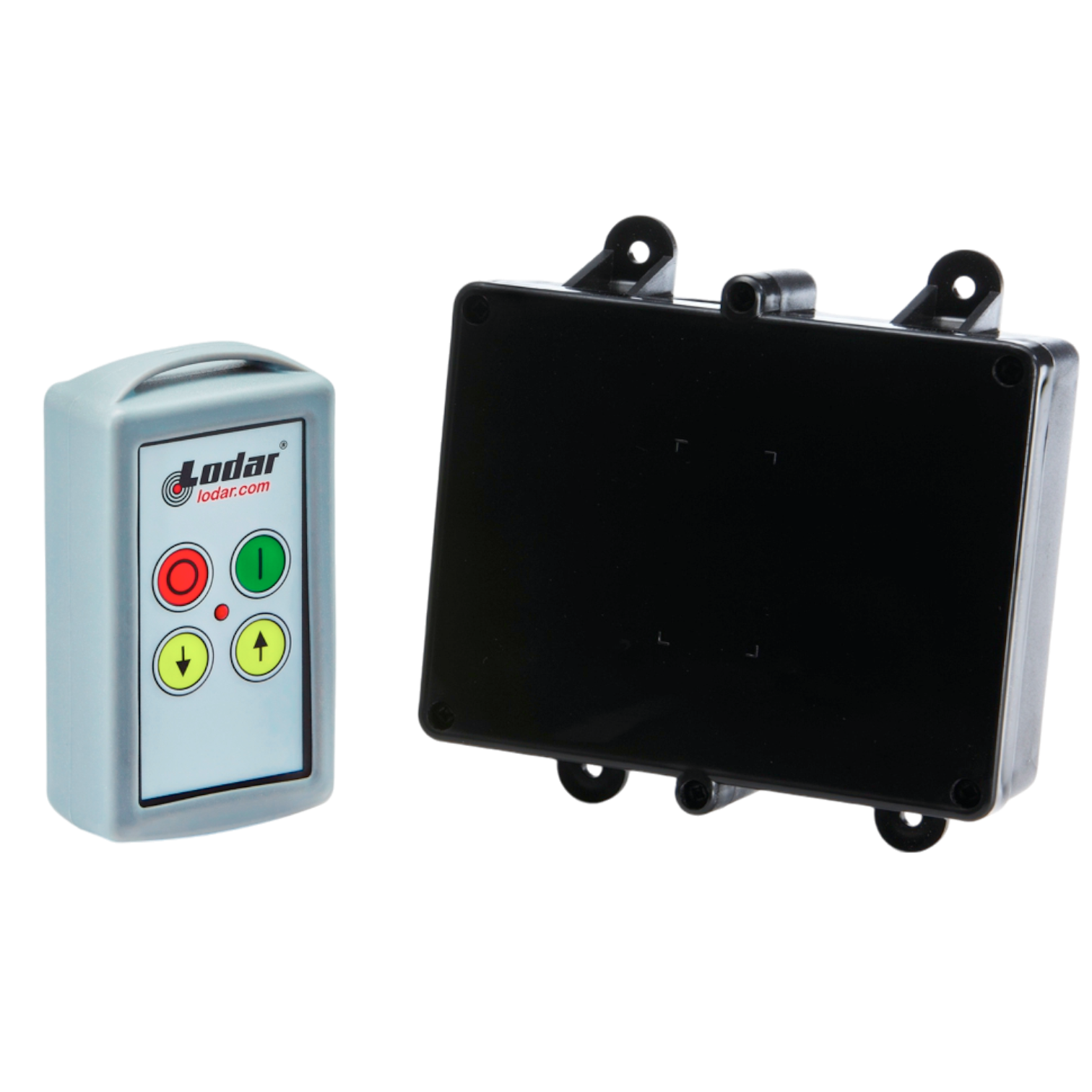

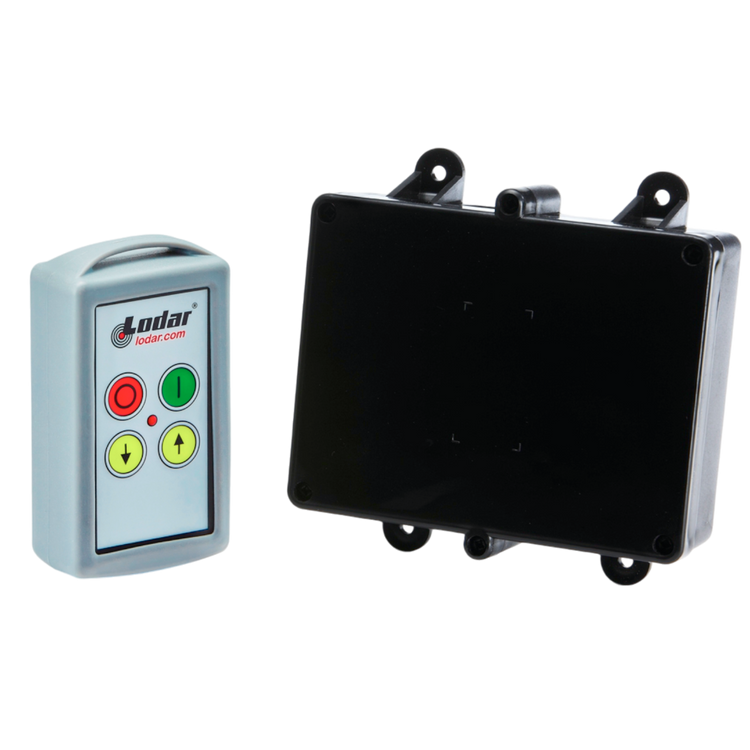

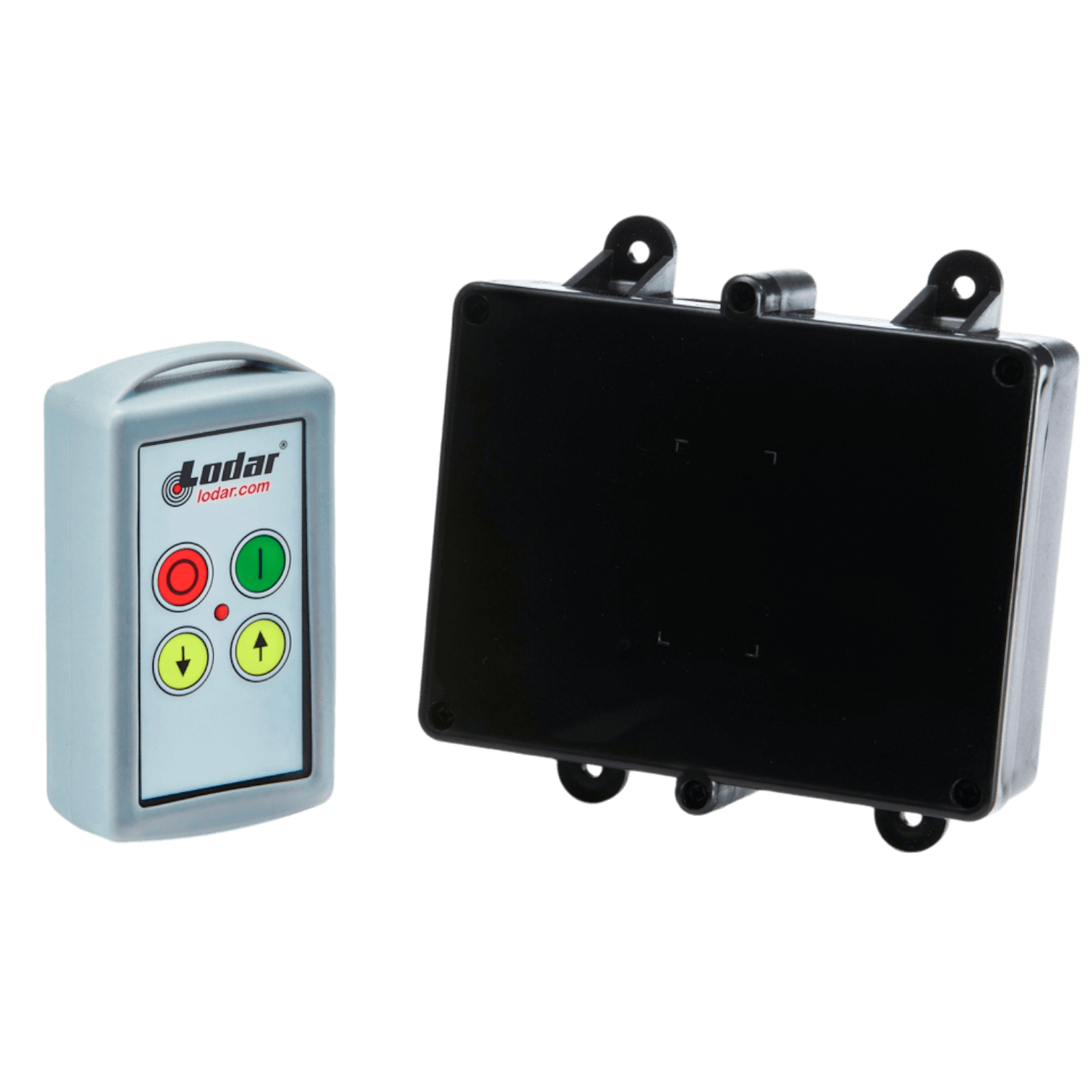

Introducing the Lodar LTD 2 Function Standard Wireless Control System from the 90 Series: This device is equipped with a four-button remote control and includes a versatile black electronic box with convenient mounting holes, making it ideal for seamless integration with solenoid-operated equipment or as a relay receiver for your existing Lodar system.

Pairing the 92 Series Lodar Remote & Transmitter

1 2

2 Function Standard Wireless Control System | 90 Series | Relay Receiver

90102-8

$519.00

Quantity

Pre-order

2 Function Standard Wireless Control System | 90 Series | Relay Receiver

Description

The 90 Series of the Lodar Standard Wireless Control System is equipped with a relay receiver, enabling a range of 200 feet and 5 amp outputs. Its master output makes it adaptable with numerous 12-24V solenoid-operated equipment, commonly used in various industries such as agriculture, off-road, towing & recovery, and construction.

Included

1 x [9002RX-8] - 2 Function Lodar Relay Receiver | 90 Series↗

1 x [92102TX-8] - 2 Function Lodar Standard Transmitter | 9000 Series↗

1 x Instructions

1 x Lanyard

Specifications

Specification	Details
FUNCTIONS	2
MASTER OUTPUT	Yes
MAX AMPS	5
OPERATING DISTANCE	200 ft. (61 m.)
OPERATING VOLTAGE	12/24 Volts DC
RECEIVER IP RATING	IP 65
SERIES	9000 Series
TRANSMITTER	Standard

Videos

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
