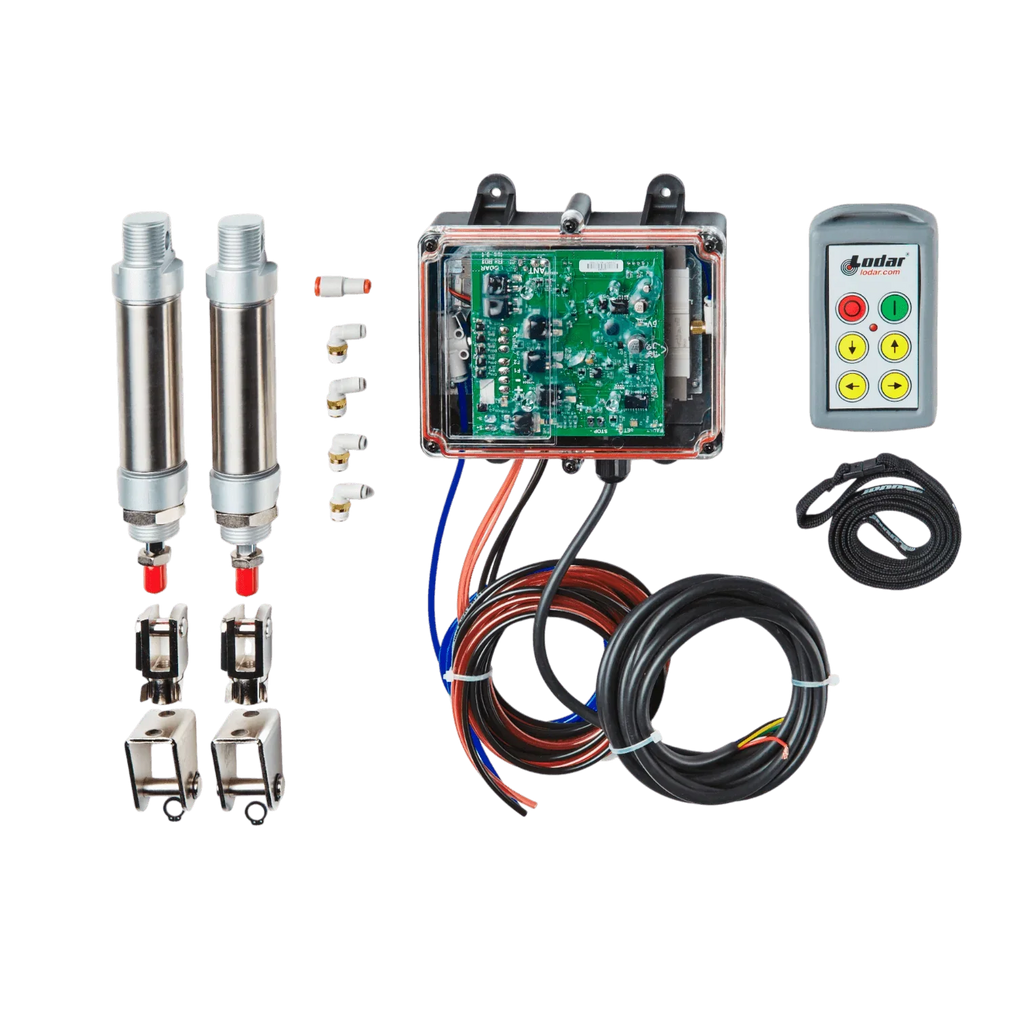

The Lodar Service 4 Function Standard Wireless Actuator Control System (92 Series, FET Air Receiver) includes sensors, wires, a control box, and connectors—perfect for managing industrial systems or integrating with pneumatic and hydraulic actuators.
Pairing the 92 Series Lodar Remote & Transmitter
1 of 2

4 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver

92154-8
Sale price $1,619.00
Low stock
Amazon
American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
The Lodar Service 4 Function Standard Wireless Actuator Control System (92 Series, FET Air Receiver) includes sensors, wires, a control box, and connectors—perfect for managing industrial systems or integrating with pneumatic and hydraulic actuators.

4 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver

$1,619.00
'
Description

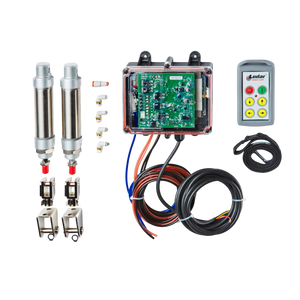

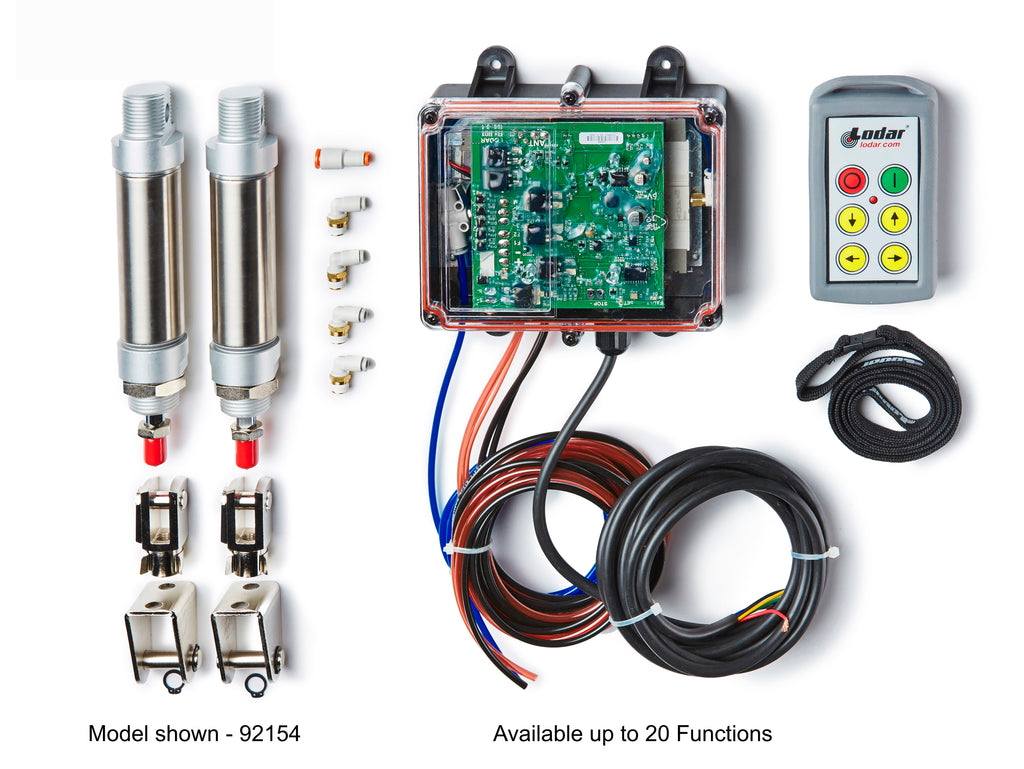

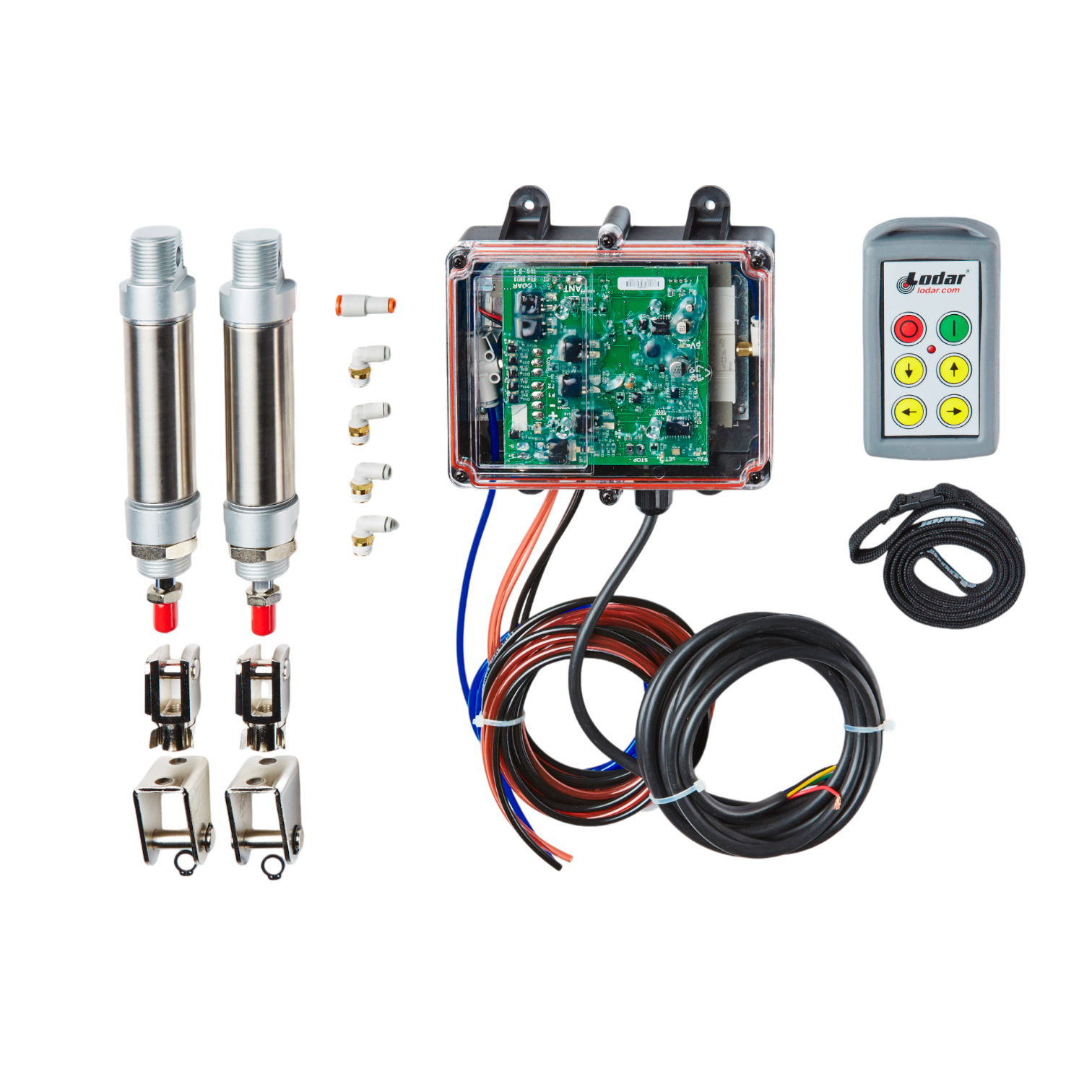

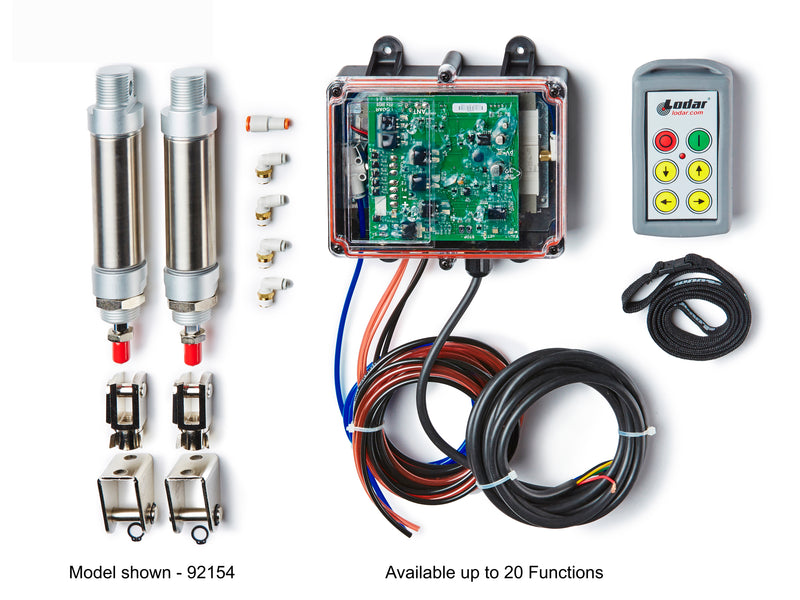

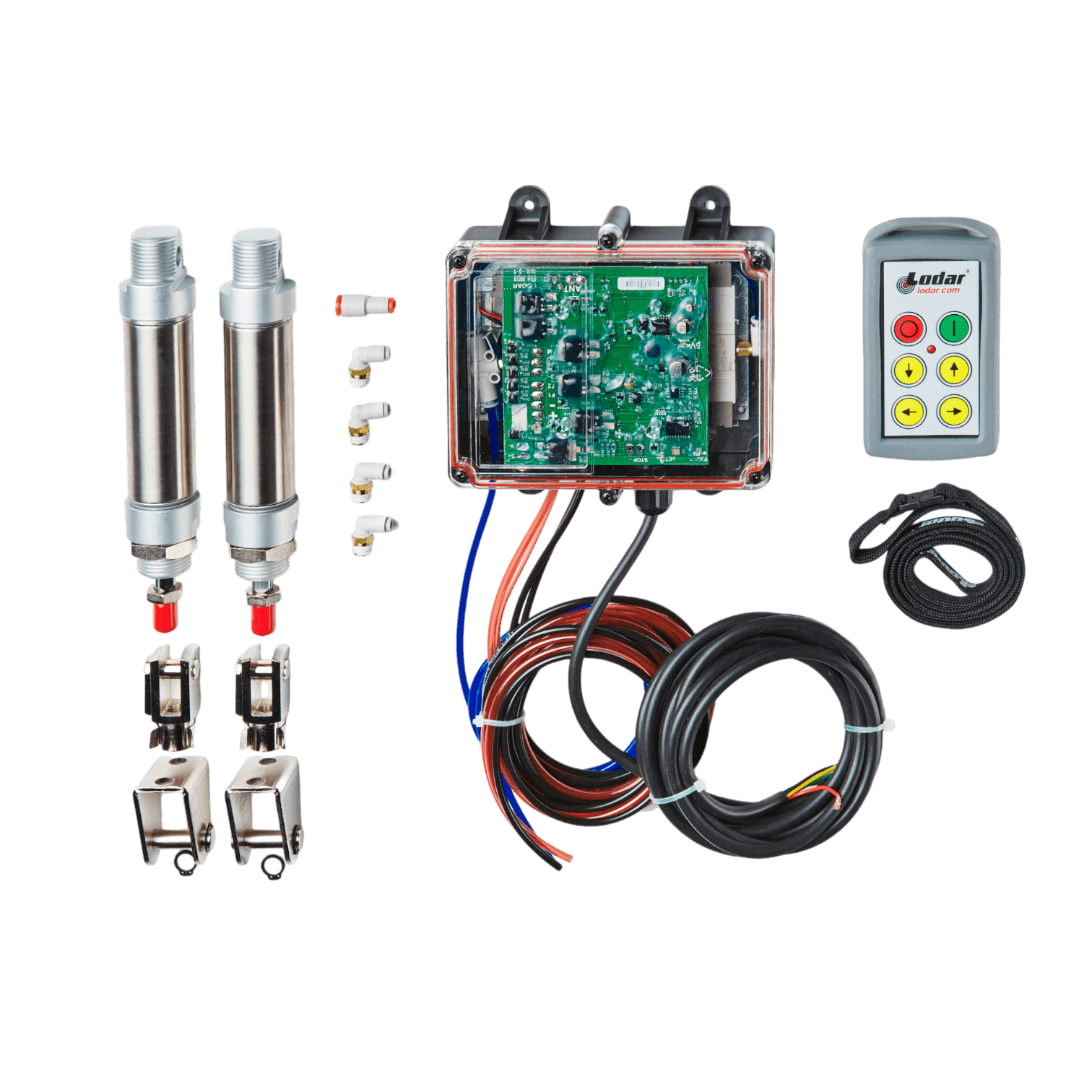

This 4-function Lodar industrial wireless system provides control of two valves (two directions each) with included pneumatic actuators. Built with a Standard transmitter and sealed receiver for dependable use.

  • 4 functions = 2 valves of wireless control
  • Includes pneumatic actuators
  • Standard Series transmitter (IP54)
  • Receiver sealed to IP67
  • Requires 90–120 PSI air and 12V DC

Applications: Industrial hydraulic systems, tow trucks, and service equipment.

Specification Details
ACTUATOR Air
FREQUENCY 433 MHz
FUNCTIONS 4
MASTER OUTPUT Yes
MAX AMPS 15
OPERATING DISTANCE 150 ft. (45 m.)
OPERATING VOLTAGE 12/24 Volts DC
RECEIVER IP RATING IP 67
SERIES 9000 Series
SPECIAL FEATURES Receiver with Air I/O + Air Actuators
TRANSMITTER Standard
TRANSMITTER BATTERIES AAA x 2
TRANSMITTER IP RATING IP 54
TYPE Full System
WIRING INCLUDED 8 ft. power / 5 ft. air input / 3½ ft. air outputs
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
