Light Duty Flat Bed Dump Kit
DKLKPD
Save 20% by bundling together!
Wireless Controller Upgrade
Alternatives: Light Duty Flat Bed Dump Kit
Light Duty Flat Bed Dump Kit
Description

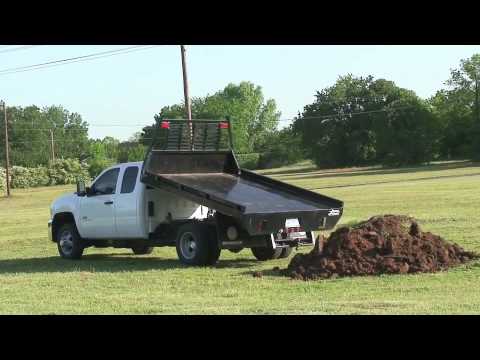

Get your work truck or trailer ready for action with the PIERCE Light Duty Flat Bed Dump Kit, designed for working folks across the US who need solid, practical equipment. Built for after-market flatbeds or dump bodies, this universal kit lifts up to 10,000 lbs., making it a great fit for tasks like farming, property maintenance, or snow removal.
Dependable Power: Using a 12 Volt hydraulic pump (standard), this kit tilts your truck bed to a 45º angle in 30-90 seconds, letting you quickly offload materials like manure, firewood, or snow. Whether you’re clearing a driveway or spreading mulch on a farm, it saves time and keeps the job simple. If you are needing more power, checkout the Medium Duty or Heavy Duty Kit.
Fits Many Setups: Made for bed lengths from 8’ to 12’, this kit works well for turning trailers into dump trailers or adding capability to flatbeds. Its strong scissor assembly and hydraulic system deliver steady lifting for everyday tasks.
Expert Installation Required: This kit calls for expert-level skills, including welding, mechanical, and electrical work. It includes a pre-assembled scissor assembly, hydraulic pump, and hardware, with our manual to walk you through. Reinforcing your truck bed is advised, and a professional’s help can make it smoother. Contact us at 940-538-5643 for support.
Tough and Trusted: Since 1976, PIERCE, a family-owned North Texas outfit, has made gear that stands up to hard work. Customers say the kit’s well-built and easy to use, cutting down effort with a quick button press.
Why PIERCE? Add the Light Duty Dump Kit to your rig to make light work of tough jobs.
Note: Stay under your truck or trailer’s max load rating. Tools and some hardware not included. Expert installation strongly recommended.
Included
Scissor Assembly (Pre-Assembled)
- Scissor Top
- 1
- Scissor s
- 2
- Crossmember
- 1
- Shaft A 7.5 in.
- 1
- Shaft B 13.5 in.
- 1
- Shaft C 19.5 in.
- 1
- Hydraulic Cylinder
- 1
- 7/32 in. x 2 in. Roll Pin
- 6
Chassis/Bed Parts
- Driver Side Frame Hinge
- 1
- Passenger Side Frame Hinge
- 1
- Frame L Bracket
- 2
- Guides
- 2
- Shaft D 9.5 in.
- 2
- Pump Bracket
- 1
- Scissor Support Bar
- 1
- Driver Side Sill Hinge
- 1
- Passenger Side Sill Hinge
- 1
- Sill Supports
- 2
Hardware
- 3/8 in. - 16 x 1.25 in. G5 Hex Head Bolt
- 2
- 1/2 in. - 16 x 3 in. G8 Hex Head Bolt
- 8
- 1/2 in. Flat Washer
- 10
- 1/2 in. - 13 Locknut
- 12
- 3/8 in. Lock Washer
- 2
- 7/32 in. x 2 in. Roll Pin
- 4
- 1/2 in. - 13 x 1.5 in. G8 Hex Head Bolt
- 2
- 1/2 in. - 13 x 1.25 in. G8 Hex Head Bolt
- 2
- 1/2 in. - 13 x 8 in. G8 Hex Head Bolt
- 2
- 3/8 in. x 1 in. G8 Hex Head Bolt
- 2
- 3/8 in. Locknut
- 2
- 3/8 in. Flat Washer
- 2
- 3/4 in. - 10 x 2.5 in. G8 Hex Head Bolt
- 1
- 3/4 in. G8 Locknut
- 1
- 3/4 in. Flat Washer
- 2
- Safety Prop Leg
- 1
- Safety Prop Cup
- 1
- 8 in. Black UV Zip Ties
- 1
- Instruction Manual
- 1
Electrical & Hydraulic Parts
- 200 Amp Breaker
- 1
- 20 ft. #4 Welding Cable - Black
- 1
- 20 ft. #4 Welding Cable - Red
- 1
- 5/16 in. Battery Eye
- 6
- 2 Button Universal Remote with 20 ft. Cord
- 1
- 3/4 in. x 1/4 in. 90º Swivel O-Ring Fitting
- 1
- 3/8 in. Male x 1/4 in. Female 90º Swivel Fitting
- 1
- #8 Straight O-Ring Male to 1/4 in. Female Pipe Fitting
- 1
- 5 ft. Hydraulic Hose
- 1
- 7 ft. Hydraulic Hose
- 1
- Bucher 12V Power Up/Power Down Hydraulic Pump
- 1
Data Tables
DKLKPD Capacity vs. Bed Overhang
Bed length and overhang length affect the capacity of your dump bed kit, therefore refer to the table below.
| Overhang | 8' Bed | 10' Bed | 12' Bed |
|---|---|---|---|
| None | 4.75 T | 3.75 T | 3 T |
| 12" | 5 T | 4.75 T | 3T |
| 24" | 5 T | 4.75 T | |
| 36" | 5T |
Specifications
| Specification | Details |
|---|---|
| CYLINDER MEASUREMENTS | 4" x 14" x 2" |
| DUMPING TIME | 30-90 seconds |
| HOSE CONNECTIONS | #6 SAE |
| MAX CAPACITY (LBS.) | 10000 |
| MAX OIL FLOW (GPM) | 1.5 |
| MAXIMUM ANGLE (º) | 45º |
| OPERATING TEMPERATURE RANGE | -20ºF to 130ºF (-30ºC to 55ºC) |
| OPERATING VOLTAGE | 12 Volts DC |
| OPERATIONAL PRESSURE (PSI) | 3250 |
| PUMP DIRECTIONS | 2-Way (Power Up / Power Down) |
| RECOMMENDED FLUID | ATF (Automatic Transmission Fluid) |
| RESERVOIR CAPACITY | 2.5 Gallons |
| RESERVOIR MATERIAL | High Density Polyethylene |
FAQs
Will I be able to tow a trailer with this dump kit installed?
Towing is only permitted with frame-mounted receiver hitches. Gooseneck hitches are not compatible and will have to be removed before installing the dump kit.
How involved is the installation of the Flat Bed Dump Kit?
Rated as an expert-level install, this kit requires advanced skills, including welding and potential modifications to your truck or trailer. For optimal performance, we recommend you reinforce your truck bed and consider professional assistance. Contact us for advice on your best options.
What is the maximum lift capacity of the Light Duty Flat Bed Kit?
The kit itself is rated for up to 10,000 lbs. However, there are several factors you need to consider. The first is the capacity of your truck or dump body. You do not want to exceed that under any circumstances. The second is the bed length vs the overhang. We provide charts for each kit so you can get an idea of your bed length vs how much overhang you will need to get the required lifting capacity.
Videos
Reviews
Customer Reviews
Based on 11 reviews
100%
(11)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Great dumb kit
T
The lift kit arrived well packaged and undamaged. I am not done yet but so far the installation process has been very straightforward. The build quality looks to be top notch. I look forward to completing the installation on my flatbed and to the new capability that the dump kit will provide.
Thank you for the feedback on the Falt bed dump kit. Glad to hear the lift kit arrived safely and the installation process has been smooth for you. Our team takes pride in producing high-quality products and we're excited for you to experience the added capability of the dump kit on your flatbed. If you need any further assistance or any help during installation, please reach out to us. We're pulling for you. 800-658-6301
A
Excellent quality and easy to install. It does take some welding and problem solving to install but this is a universal kit so it was expected. I am very satisfied and the kit works flawlessly. Also was notified before delivery so if I didn’t have a way to unload it they could send a truck with a lift gate.
M
The kit showed up within a week and works great. Very adaptable and easy to install
C
With the right tools was not too difficult to install on my f250. Will make life alot easier now with a push of a button. Very pleased with my purchase
Finding a ProfessionalFor your Dump Truck Kit Installation
If you choose not to do the hydraulic dump kit installation yourself, we have found body shops and machine/welder shops typically have the expertise required. Basically, any shop installing flat beds has the expertise.
