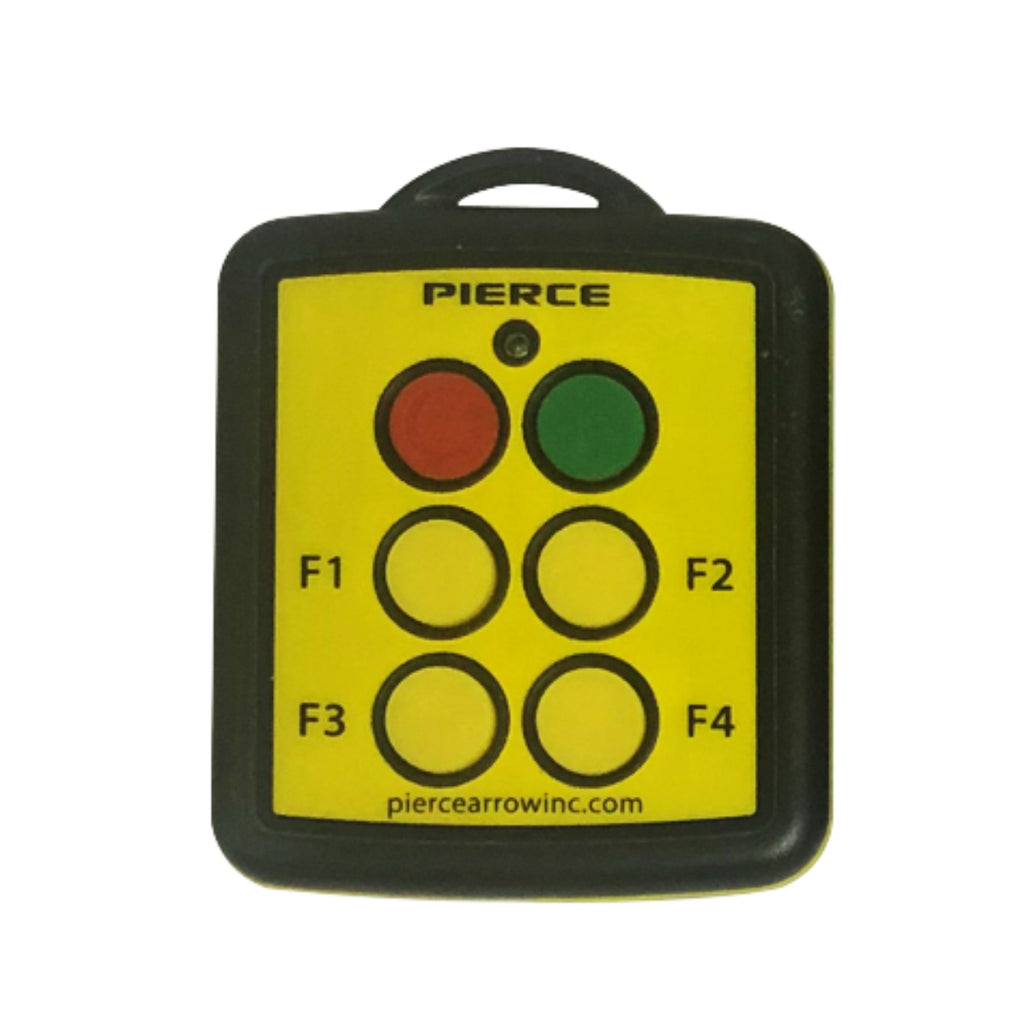

Yellow 4 Function Wireless Remote Transmitter by PIERCE features six buttons: F1 to F4, plus two larger red and green buttons.

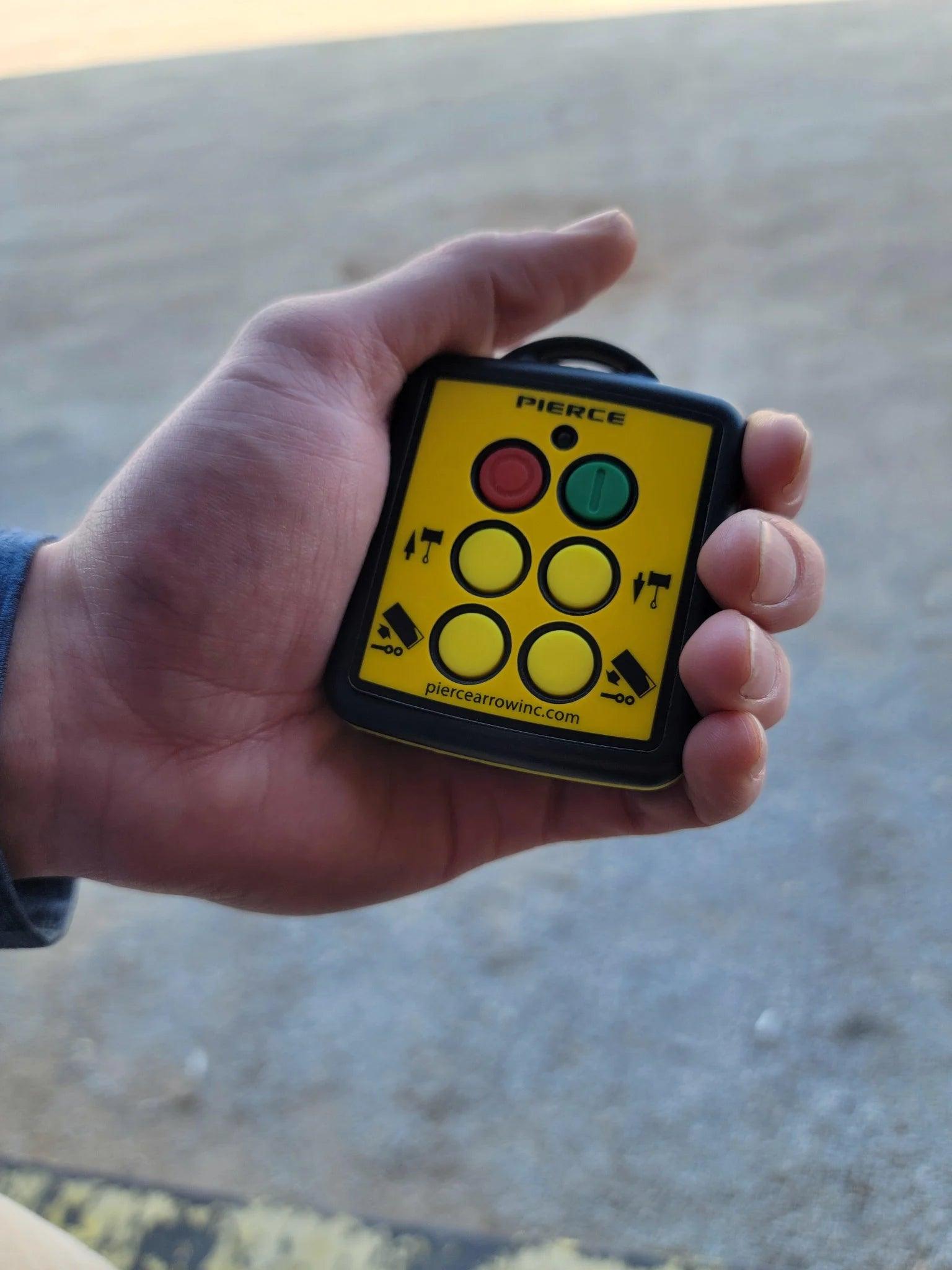

A hand holds a PIERCE 4 Function Wireless Remote Transmitter with six buttons labeled F1 to F4, plus green and red buttons. This sleek device offers seamless fingertip control and acts as a replacement transmitter.

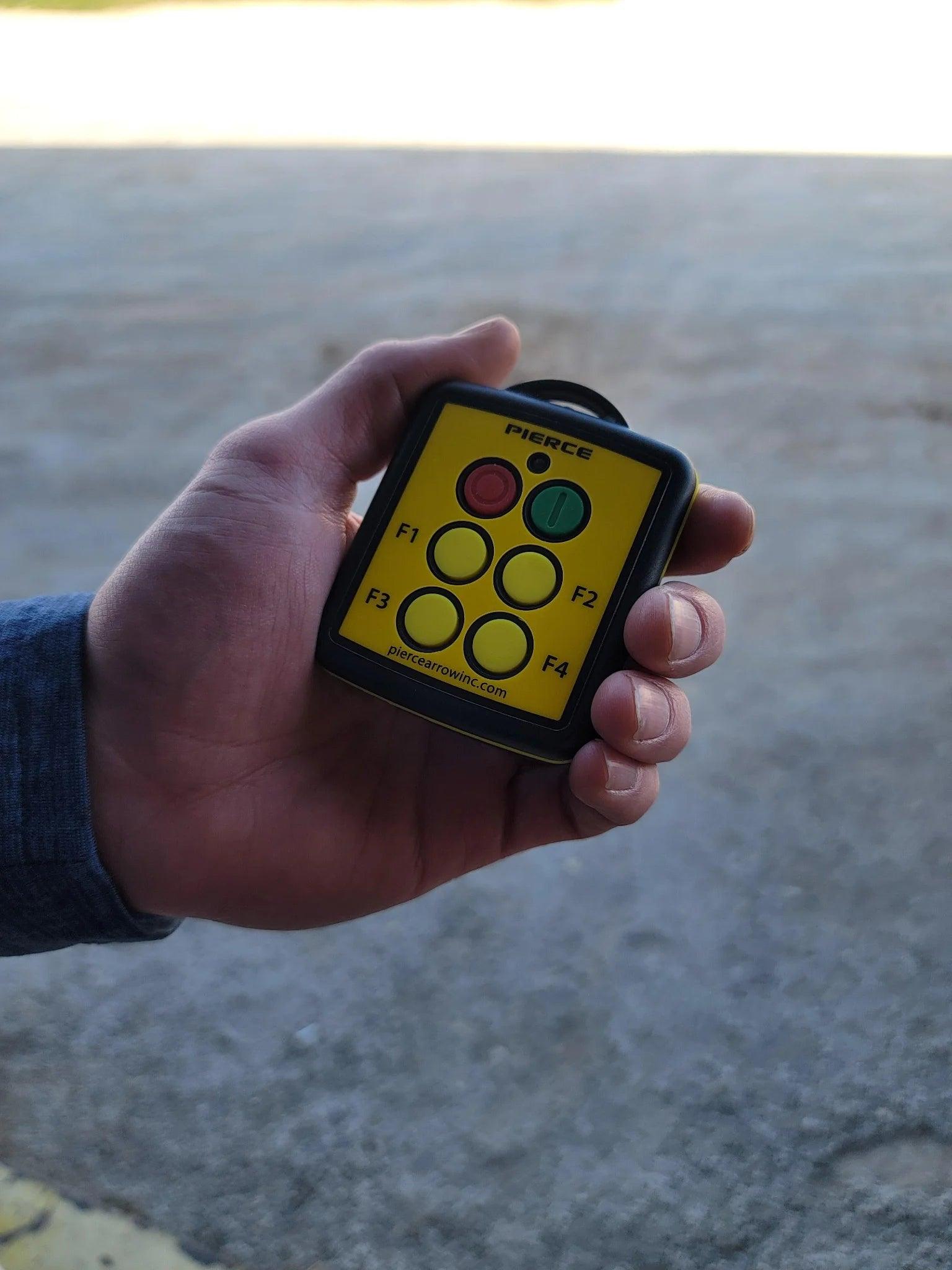

In an outdoor setting, a hand holds a yellow PIERCE 4 Function Wireless Remote Transmitter with black edges and six buttons labeled F1 to F4.

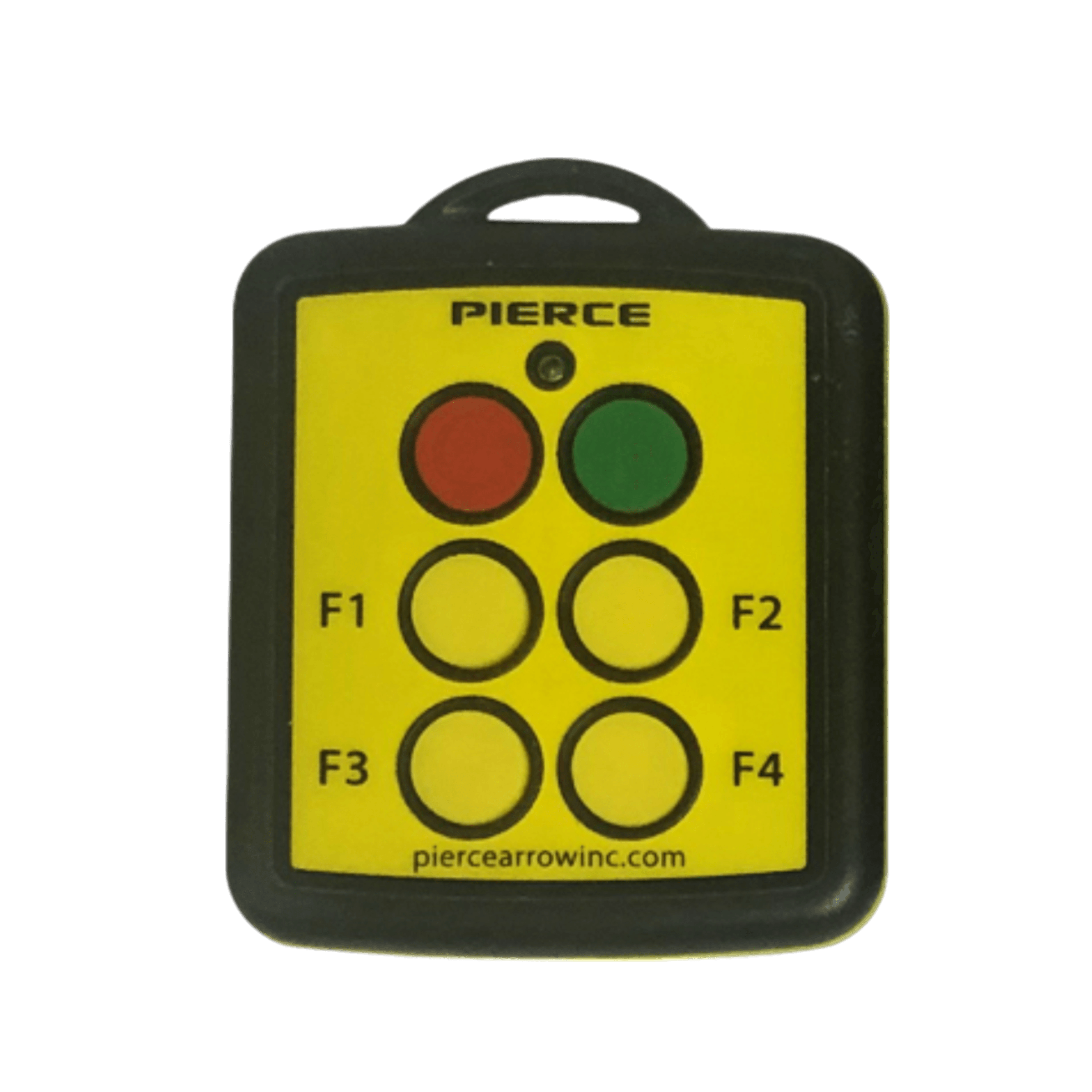

A hand holds a PIERCE 4 Function Wireless Remote Transmitter with a yellow face featuring four circular buttons and directional arrows, ideal as a replacement transmitter.

1 5

4 Function Wireless Remote Transmitter

PS004T

$186.00

Quantity

Pre-order

Compatible Products

*Check compatibility before purchasing.

PS004 - 4 Function Wireless Remote Control System

4 Function Wireless Remote Transmitter

Description

This remote is a four function replacement transmitter for the PS004 (four function wireless remote system -link) and comes with a 2 year warranty.

This product includes:

2 AAA Batteries
Lanyard
Instruction
2 overlays - one for standard, one for roll off series

Specifications

Specification	Details
CHANNEL	Wide Band, Fixed
FREQUENCY	433 MHz
FUNCTIONS	4
OPERATING DISTANCE	150 ft. (45 m.)
OPERATING TEMPERATURE RANGE	-22ºF to 149ºF (-30ºC to 65ºC)
SWITCH TYPE	Silicone Rubber Keypad with Carbon Pill
TRANSMITTER	Mini
TRANSMITTER BATTERIES	AAA x 2
TRANSMITTER IP RATING	IP 67
TYPE	Transmitter Only

Resources

PS004 - Wiring Diagram

Wiring Diagram

Reviews

Nothing but QUALITY parts. It works great every time

Great to hear! 😃

Kit Complete and fast shipping

I purchased as a replacement remote and worked as good as the first one. However, the old and new have a good range of about 35'. When I stand at the end of the trailer 40' away, it has a problem staying connected while going up or down. The connection gets interrupted and it skips until I walk closer to the receiver.

Thank you for your review! The 35' range limit you are experiencing indicates something isn't working as it should. There are several things that can cause this and I'll list out here the most common causes in descending order.

- The biggest factor can be the mounting placement of the receiver itself. If it is in a very thick toolbox or behind a bunch of power cables, etc, it is possible it is experiencing interference.
- The transmitter having low batteries can also be a common issue, but it sounds like you can rule that one out since this is the second transmitter.
- Cold weather can cause issues but it would need to be very cold to cut the range more than half like you are experiencing? Unless you are in Antartica this is probably not the case either.
- It could be that there is another device on the truck itself operating on the 418Mhz band? Rarely some other products will operate on the same licensed band but that is not common.

Hopefully these can help resolve what is happening, but if they don't, reach out to us. We can work on evaluating the complete system for any repair/replacement under warranty that might be needed.

Super

Awesome remote control

I bought this for my 2025 Isuzu NRR built by Super Lawn Trucks in Fort Valley, GA. It was 10 minute install. It works fantastic.

That sounds like a really neat setup! Thank you for sharing.

Very satisfied

Quality and reliability so far this has been 10 times better then the kti remote I had before love being able to control my dump trailer while in my vehicle amazing and easy installation

Hi there! Thank you for taking the time to leave such a positive review. We are thrilled to hear that our 2 Function Wireless Remote Control System has exceeded your expectations in terms of quality, reliability and ease of installation. Our team works hard to ensure our products are top-notch, so it's great to know that it has been 10 times better than your previous remote. Thank you for choosing our product and for your support. Have a great day!
