18 Function Direct Mount Wireless Air System – Jerr-Dan (Husco Valves)
18 Function Direct Mount Wireless Air System – Jerr-Dan (Husco Valves)
Description

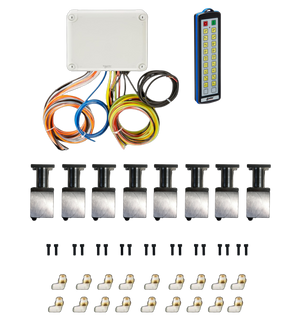

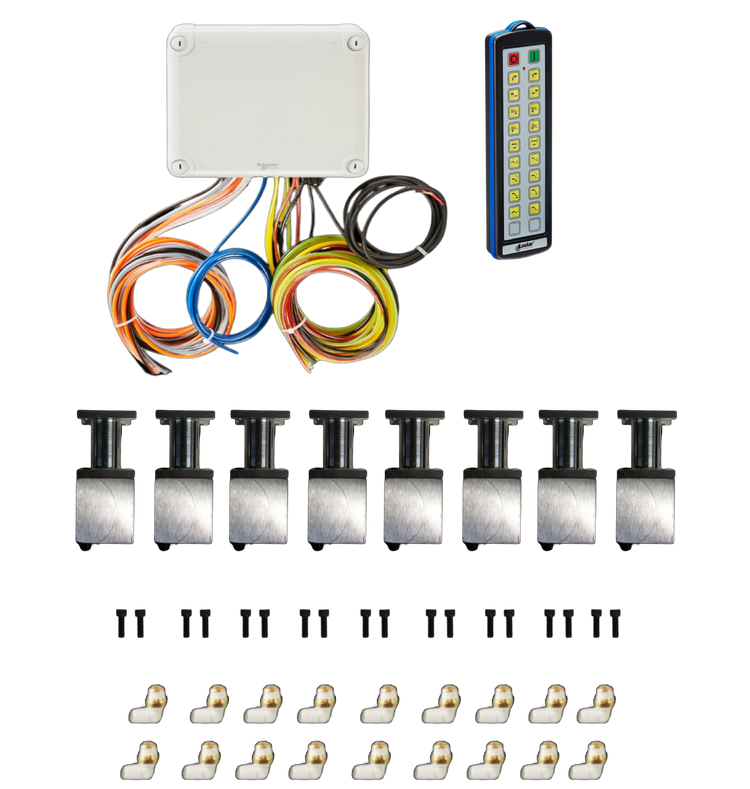

Expand control on Jerr-Dan hydraulics. This 18-function Lodar system mounts actuators directly on Husco valves, providing wireless operation of nine valves (two directions each).
- 18 functions = 9 valves of wireless control
- Direct-mount pneumatic actuators for Husco spools
- Industrial handheld transmitter (IP65)
- Receiver sealed to IP65
- Requires onboard air (90–120 PSI) and 12V DC
Applications: Jerr-Dan wreckers and heavy-duty recovery trucks with Husco spool valves.
Specifications
| Specification | Details |
|---|---|
| ACTUATOR | Husco Direct Mount Air |
| FUNCTIONS | 18 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 150 ft. (45 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 65 |
| SERIES | 9000 Series |
| SPECIAL FEATURES | Receiver with Air I/O + Air Actuators |
| TRANSMITTER | Industrial Pro |
| TRANSMITTER BATTERIES | AAA x 4 |
| TRANSMITTER IP RATING | IP 65 |
| TYPE | Full System |
| WIRING INCLUDED | 8 ft. power / 5 ft. air input / 3½ ft. air outputs |
