Description

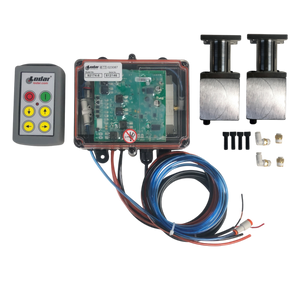

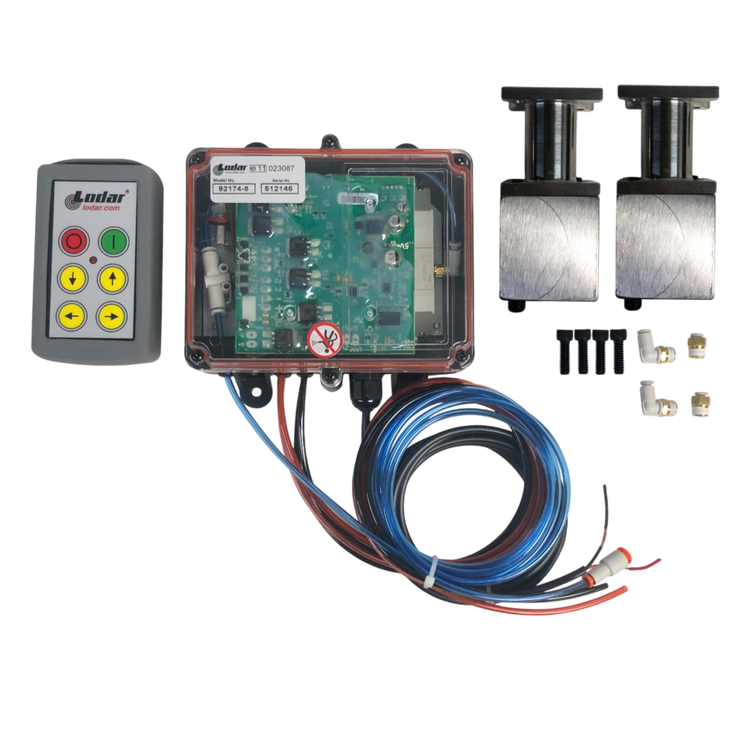

Wireless control for compact Husco valve circuits. This 4-function air system adds bolt-on pneumatic actuators to operate two valves (two directions each) remotely and safely.
- 4 functions = 2 valves of wireless control
- Bolt-on actuators designed for Husco spools
- Standard Series handheld transmitter (IP54) with AAA x 2 batteries
- Weather-sealed receiver (IP67)
- Requires onboard air supply (90–120 PSI) and 12V DC power
Related systems: Using Gresen spools? See the 4-Function Gresen version. Need more functions? Upgrade to the 6-Function Husco or the universal 8-Function Air Actuation System.
Applications: Jerr-Dan and other Husco-equipped wreckers, service trucks, and utility rigs.
Specifications
| Specification | Details |
|---|---|
| ACTUATOR | Husco Direct Mount Air |
| FREQUENCY | 433 MHz |
| FUNCTIONS | 4 |
| MASTER OUTPUT | Yes |
| MAX AMPS | 15 |
| OPERATING DISTANCE | 200 ft. (61 m.) |
| OPERATING VOLTAGE | 12/24 Volts DC |
| RECEIVER IP RATING | IP 67 |
| SERIES | 9000 Series |
| SPECIAL FEATURES | Receiver with Air I/O + Air Actuators |
| TRANSMITTER | Standard |
| TRANSMITTER BATTERIES | AAA x 2 |
| TRANSMITTER IP RATING | IP 54 |
| TYPE | Full System |
| WIRING INCLUDED | 8 ft. power / 5 ft. air input / 3½ ft. air outputs |
| WARRANTY | Lodar 5 Year Pro-rated Warranty |
